Запчасти Case IH 9270 (8-034) - HYDRAULIC REMOTE VALVE SECTION 1ST, 2ND, 3RD & 4TH W/ FLOAT CONT. (08) - HYDRAULICS

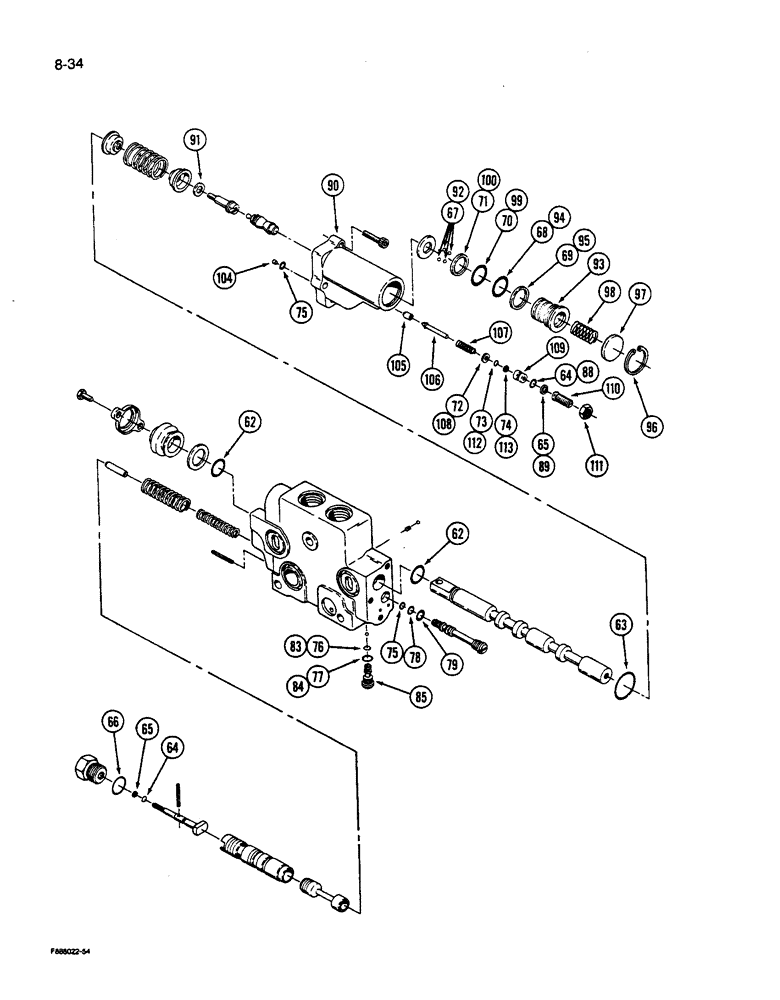

Схема запчастей Case IH 9270 - (8-034) - HYDRAULIC REMOTE VALVE SECTION 1ST, 2ND, 3RD & 4TH W/ FLOAT CONT. (08) - HYDRAULICS
64
108
70
89
107
85
96
62
69
92
76
77
112
100
72
67
65
78
105
97
64
98
111
62
99
90
106
75
73
66
91
104
74
93
84
65
83
79
88
71
95
113
94
110
75
109
68
63

Артикул

Название

Примечание

Количество

50-2302T91

ASSEMBLY

VALVE ASSEMBLY - remote, with float (Continued), Includes: Ref. 62 - 113 and 1 - 58 on Fig.8-32

1шт.

50-2388T1

SEAL KIT

SEAL KIT - detent, primary and secondary, Includes: Ref. 62 - 79

1шт.

62

NSS

NOT SOLD SEPARAT

O-RING - seal, spool

2шт.

63

NSS

NOT SOLD SEPARAT

O-RING - seal, detent housing

1шт.

64

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

65

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

66

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

67

NSS

NOT SOLD SEPARAT

BALL - steel

8шт.

68

NSS

NOT SOLD SEPARAT

O-RING - seal, kickout piston

1шт.

69

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

70

NSS

NOT SOLD SEPARAT

O-RING - seal, kickout piston

1шт.

71

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

72

NSS

NOT SOLD SEPARAT

WASHER - spring

1шт.

73

NSS

NOT SOLD SEPARAT

O-RING - seal, poppet

1шт.

74

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

75

NSS

NOT SOLD SEPARAT

O-RING - seal

3шт.

76

NSS

NOT SOLD SEPARAT

O-RING - seal, shuttle, secondary

1шт.

77

NSS

NOT SOLD SEPARAT

O-RING - seal, shuttle, secondary

1шт.

78

NSS

NOT SOLD SEPARAT

O-RING - seal, shuttle, primary

1шт.

79

NSS

NOT SOLD SEPARAT

O-RING - seal, shuttle, primary

1шт.

A47210

PLUG

ASSEMBLY - secondary shuttle (Order (1) seat A47204, (1) ring 21590R1 and (1) o-ring 218-5002), Includes: Ref. 83 - 85

1шт.

R30185

SEAL KIT

SEAL KIT - plug, Includes: Ref. 83 and 84

1шт.

83

NSS

NOT SOLD SEPARAT

O-RING - seal, shuttle, secondary

1шт.

84

NSS

NOT SOLD SEPARAT

O-RING - seal, shuttle, secondary

1шт.

85

NSS

NOT SOLD SEPARAT

PLUG ASSEMBLY - secondary shuttle

1шт.

A52435

HOUSING ASSY.

HOUSING ASSEMBLY - detent, Includes: Ref. 88 - 113

1шт.

88

NSS

NOT SOLD SEPARAT

O-RING - seal, poppet

1шт.

89

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

90

NSS

NOT SOLD SEPARAT

HOUSING - detent

1шт.

91

A48931

WASHER

- guide

1шт.

92

NSS

NOT SOLD SEPARAT

BALL - steel

8шт.

93

A48932

PISTON

- kickout (Replaces 50-2380T1)

1шт.

94

NSS

NOT SOLD SEPARAT

O-RING - seal, piston

1шт.

95

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

96

A30975

SNAP RING,1.188", Int, #118

(Replaces 50-2381T1) 1.188", Int, #118

1шт.

97

A48933

RING

RETAINER - piston (Replaces 50-2382T1)

1шт.

98

A48934

SPRING

- detent (Replaces 50-2383T1)

1шт.

99

NSS

NOT SOLD SEPARAT

O-RING - seal, piston

1шт.

100

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

104

A47658

PLUG

- orifice (Replaces 50-1663T1)

1шт.

105

A47201

SEAT

- pilot float (Replaces 50-1668T1)

1шт.

106

NSS

NOT SOLD SEPARAT

POPPET - relief

1шт.

107

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

108

NSS

NOT SOLD SEPARAT

WASHER - spring

1шт.

109

A48936

GOVERNOR

PISTON - regulator (Replaces 50-2384T1)

1шт.

110

A47173

SCREW,3/8" - 24 x 0.96"

- adjusting (Replaces 50-1717T1)

1шт.

111

19-868

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF

1шт.

112

NSS

NOT SOLD SEPARAT

O-RING - seal, poppet

1шт.

113

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Выбрано товаров: 49
