(8-024) - PRIORITY VALVE ASSEMBLY

Запчасти Case IH 9270 (8-024) - PRIORITY VALVE ASSEMBLY (08) - HYDRAULICS

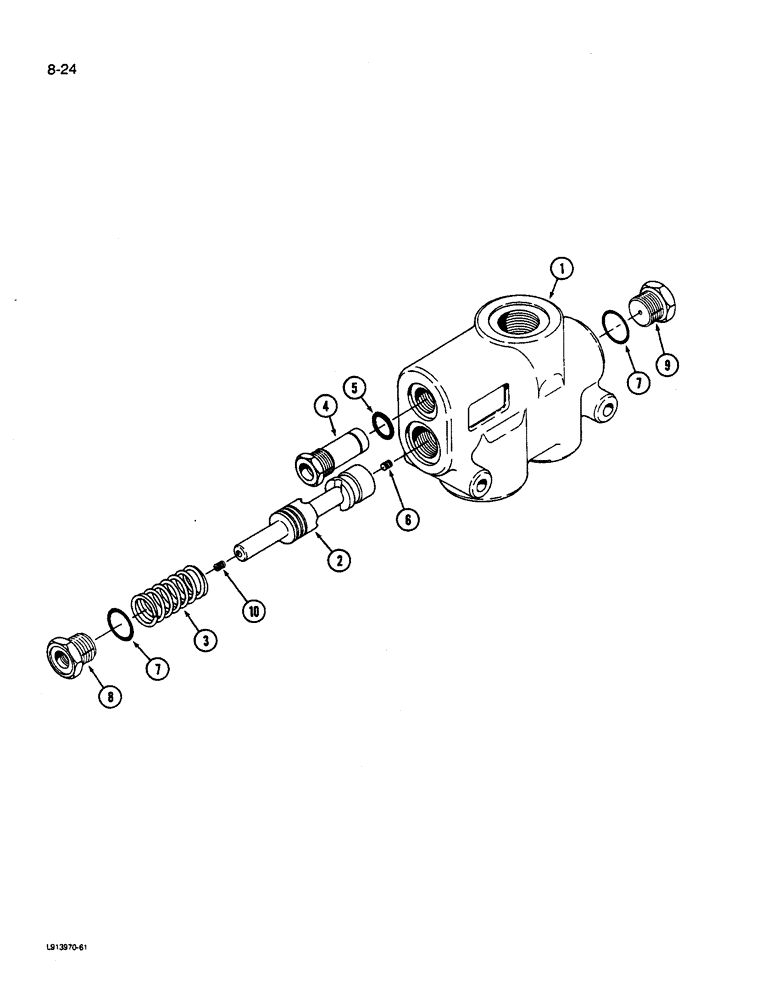

Схема запчастей Case IH 9270 - (8-024) - PRIORITY VALVE ASSEMBLY (08) - HYDRAULICS
1
10
5
8
6
9
7
4
7
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

50-3155T91

VALVE

ASSEMBLY - priority, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - priority valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - priority valve

1шт.

3

D82777

SPRING

- centering

1шт.

4

50-3035T91

CARTRIDGE

ASSEMBLY - relief valve, Includes: Ref. 5

1шт.

5

50-1872T1

O-RING

- relief cartridge

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - orificed

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

8

NSS

NOT SOLD SEPARAT

PLUG - end

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG - orificed

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - spool

1шт.
