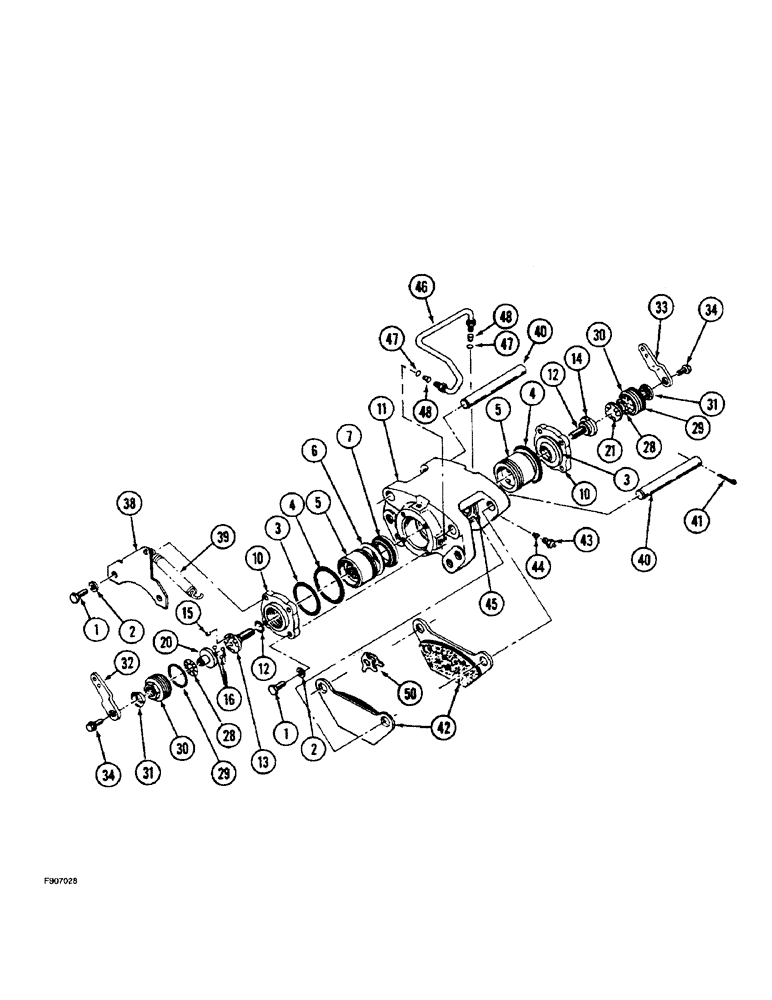

Запчасти Case IH 9270 (7-008) - CALIPER ASSEMBLY PRIOR TO P.I.N. JEE0032460 (07) - BRAKES

90-1352T95

BRAKE CALIPER

CALIPER ASSEMBLY - brake, Includes: Ref. 1 - 50

1шт.

90-1352T95R

REMAN-BRAKE ASSY.

Reman For 9270 Pwr. Shift, 9270 Synch. Shift, Both Aft. S/N JCB0027096 & Aft., 9280 Pwr. Shift SN JCB0027096 & Aft., 9280 Synch. Shift SN JEE0033803 & Aft.

1шт.

90-1352T95C

CORE-BRAKE ASSY.

Return Number

1шт.

1

90-3445T1

SCREW,Hex, 3/8" - 16 x 1"

BOLT - hex, special

8шт.

2

492-11038

LOCK WASHER,3/8"

4шт.

3

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

End cap mount seal -143, 90 Duro, 2.425" ID x .103" Thk

2шт.

4

A46968

SEAL

- piston

2шт.

5

A46967

PISTON

- caliper

2шт.

6

A46960

RUBBER INSULATOR

SEAL - piston

2шт.

7

90-3461T1

RETAINER

- seal

2шт.

10

A46959

HOUSING

CAP - end

2шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - caliper, brake

1шт.

12

238-6022

O-RING,0.07" Thk x 0.989" ID, -22, Cl 6, 90 Duro

Thrust screw seal -022, 90 Duro, .989" ID x .070" Thk

2шт.

13

90-3447T1

SCREW

- thrust, park brake, left-hand

1шт.

14

A46953

SCREW

- thrust, parking brake, right-hand

1шт.

15

A46970

PIN

anti-rotation

2шт.

16

211-1012

BALL,3/8" Dia

- chrome alloy steel, 3/8 inch, grade 24

6шт.

20

A46952

SHAFT

- actuator, parking brake, left-hand

1шт.

21

A46951

SHAFT

- actuator, parking brake, right-hand

1шт.

28

A46955

BEARING ASSY,15.93mm ID x 31.65mm OD x 3.17mm W

BEARING - thrust

2шт.

29

90-3478T1

O-RING

retainer seal

2шт.

30

A46958

RETAINER

- actuator, parking brake

2шт.

31

A46957

SEAL

- retainer

2шт.

32

90-3455T1

LEVER

- parking brake actuating, left-hand

1шт.

33

90-3454T1

LEVER

- parking brake actuating, right-hand

1шт.

34

A46956

SERRATED SCREW,Hex Serrated Washer

- machine, special

2шт.

38

90-3462T1

SUPPORT

BRACKET - spring

2шт.

39

90-2902T1

SPRING

return, parking brake

2шт.

40

A46971

PIN

- brake pad mounting

2шт.

41

323-1

COTTER PIN,5/32" x 1 1/4"

PIN - cotter, 5/32 x 1-1/4 inch

4шт.

42

90-7506T1

BRAKE LINING

PAD - brake

2шт.

43

A46962

BLEEDER,Bleeder, 7/16" - 24 x 1.469"

SCREW - bleeder

3шт.

44

A46961

INSERT

SEAT - bleeder screw insert

4шт.

45

A46969

BELLOWS

BOOT - dust

2шт.

46

90-7198T1

TUBE

- brake, cross over, no longer available, order 90-7631T1, Includes: Ref. 47 and 48

1шт.

47

90-7316T1

O-RING

tube

2шт.

48

A46961

INSERT

SEAT - bleeder screw insert

2шт.

50

90-7507T1

SPRING

- release, brake pad

2шт.
