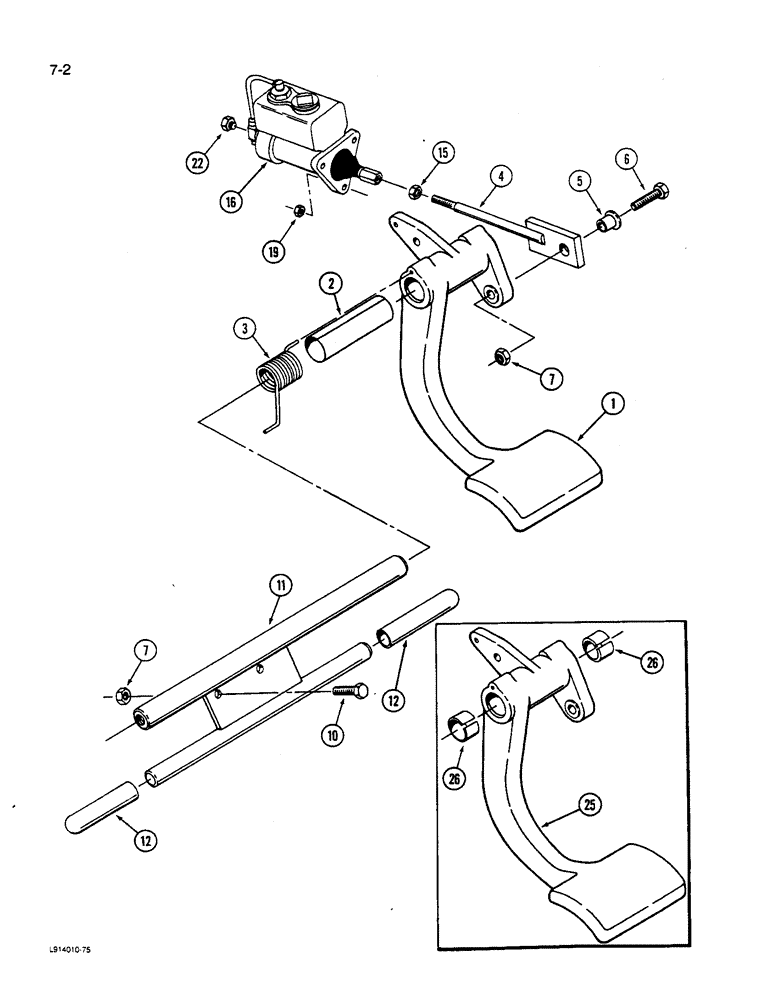

Запчасти Case IH 9270 (7-002) - BRAKE CONTROLS (07) - BRAKES

1

60-6835T1

PEDAL

- brake, if equipped

1шт.

2

60-6836T1

RING RACE

BUSHING - pivot, used with Ref. 1 only

1шт.

3

11-19

SPRING

- torsion, pedal return

1шт.

4

60-5792T1

THREADED ROD

ROD - push, master cylinder

1шт.

5

60-4337T1

FLANGED BEARING

BUSHING - flanged

1шт.

6

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

7

19-653

LOCK NUT

- hex, self-locking, 1/2 inch NC

3шт.

10

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

11

60-5074T1

PEDAL

MOUNT - pedal, brake and clutch

1шт.

12

1-3520

BUMPER

- pedal stop, brake and clutch

2шт.

15

19-2257

NUT

- hex, 5/8 inch NF

1шт.

16

REF

INSTRUCTION

CYLINDER - master, brake, parts list Figure 7-10

1шт.

19

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, self-locking, 3/8 inch NC

3шт.

22

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT

1шт.

25

60-4251T2

PEDAL

brake, if equipped, order 60-6835T1 pedal and 60-6836T1 bearing

1шт.

26

24-208

BEARING ASSY,1" ID x 1.125" OD x 0.75"

BUSHING - pivot, split, used with Ref. 25 only

2шт.
