(9270) - CASE IH STEIGER SYNCHROSHIFT 4WD TRACTOR (S/N JCB0027096 & AFTER) (1/90-5/95)
/
(06) - POWER TRAIN
/

(6-094) - PTO CLUTCH MOUNTING POWER SHIFT, SYNCHROSHIFT TRACTORS

Запчасти Case IH 9270 (6-094) - PTO CLUTCH MOUNTING POWER SHIFT, SYNCHROSHIFT TRACTORS (06) - POWER TRAIN

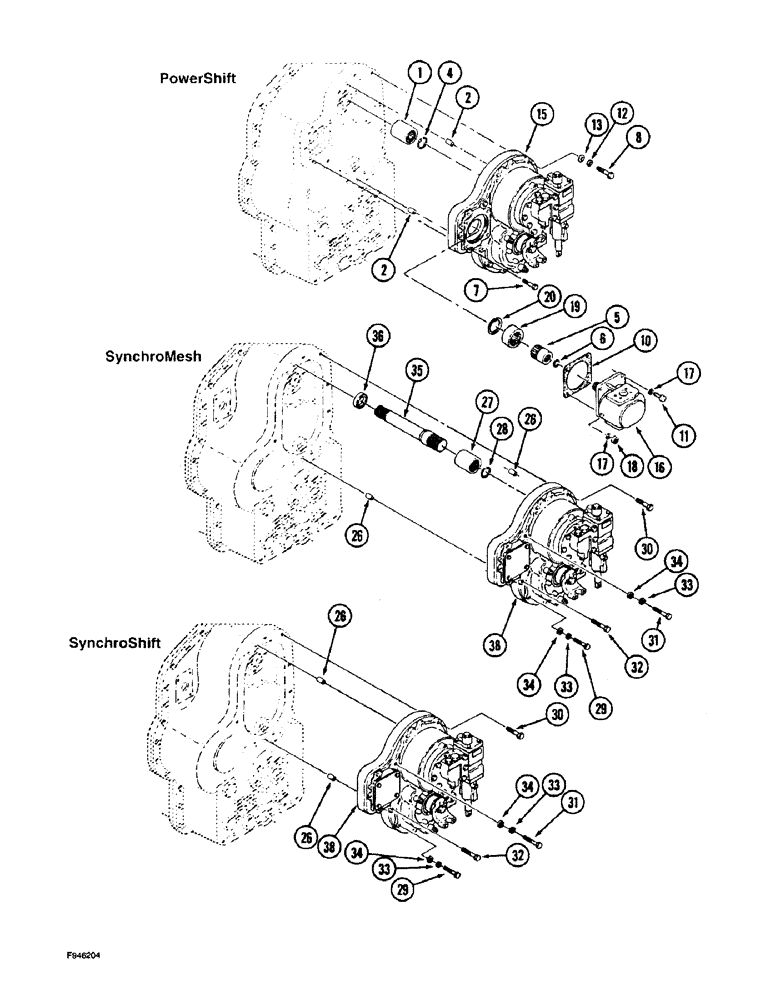

Схема запчастей Case IH 9270 - (6-094) - PTO CLUTCH MOUNTING POWER SHIFT, SYNCHROSHIFT TRACTORS (06) - POWER TRAIN
29
29
7
38
15
17
2
2
34
34
36
26
13
30
34
31
35
26
32
16
28
34
1
33
17
26
33
27
12
11
26
32
20
4
10
33
30
8
33
5
38
6
31
18
19

№

Артикул

Название

Примечание

Количество

90-7513T91

KIT

MOUNTING KIT - clutch, PTO, order components, Includes: Ref. 1 - 16

1шт.

1

90-7517T1

SLEEVE

- drive coupling

1шт.

POWERSHIFT & SYNCROSHIFT TRACTORS

1шт.

2

33-1467T1

DOWEL

PIN - dowel

2шт.

4

SM922247

RING, SNAP

RING - snap

1шт.

5

33-1528T1

COUPLING

ADAPTER - pump drive, used only when equipped with PTO, see Figure 6-6

1шт.

6

33-1446T1

RING, SNAP

RING - snap

1шт.

7

SM8124280

BOLT

BOLT - hex, 12 mm - 1.25 x 80 mm

4шт.

8

SM8124290

BOLT

BOLT - hex, 12 mm - 1.25 x 90 mm

8шт.

8

SM8124295

BOLT

BOLT - hex, 12 mm - 1.25 x 95 mm

2шт.

8

SM8124285

BOLT

BOLT - hex, 12 mm - 1.25 x 85 mm

1шт.

10

50-1388T2

GASKET

- pump

1шт.

11

SM8124460

BOLT

BOLT - hex, 8 mm - 1.50 x 60 mm

2шт.

12

SM8915342

LOCK WASHER

WASHER - lock, 12 mm

3шт.

13

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

3шт.

15

REF

INSTRUCTION

CLUTCH ASSEMBLY - PTO, parts list Figure 6-98

1шт.

16

REF

INSTRUCTION

PUMP ASSEMBLY - lubrication, parts list Figure 6-30

1шт.

17

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

18

SM8911244

NUT

- hex, 14 mm - 1.5

2шт.

19

33-1452T1

COUPLING

- pump

1шт.

20

33-1445T1

RING, SNAP

RING - snap

1шт.

SYNCROMESH TRACTORS

1шт.

90-7514T91

MOUNTING PARTS

MOUNTING KIT - clutch, PTO, order components, syncromesh tractors, Includes: Ref. 26 - 38

1шт.

26

33-1467T1

DOWEL

PIN - dowel, syncromesh tractors

2шт.

27

90-7517T1

SLEEVE

- drive coupling, syncromesh tractors

1шт.

28

SM922247

RING, SNAP

RING - snap, syncromesh tractors

1шт.

29

SM8124295

BOLT

BOLT - hex, 12 mm - 1.25 x 95 mm, syncromesh tractors

2шт.

30

SM8124290

BOLT

BOLT - hex, 12 mm - 1.25 x 90 mm, syncromesh tractors

8шт.

31

SM8124285

BOLT

BOLT - hex, 12 mm - 1.25 x 85 mm, syncromesh tractors

1шт.

32

SM8124280

BOLT

BOLT - hex, 12 mm - 1.25 x 80 mm, syncromesh tractors

1шт.

33

SM8915342

LOCK WASHER

WASHER - lock, 12 mm, syncromesh tractors

12шт.

34

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm, Syncromesh tractors

12шт.

35

90-7516T1

SHAFT

- stub, PTO, syncromesh tractors

1шт.

36

90-7515T1

BEARING, BALL

BEARING - stub shaft, syncromesh tractors

1шт.

38

REF

INSTRUCTION

CLUTCH ASSEMBLY - PTO, parts list Figure 6-98, syncromesh tractors

1шт.

90-7879T91

KIT

- PTO clutch mounting, order components, syncromesh tractors, Includes: Ref. 26 - 34

1шт.

26

33-1467T1

DOWEL

PIN - dowel, syncromesh tractors

2шт.

29

SM8124295

BOLT

BOLT - hex, 12 mm - 1.25 x 95 mm, syncromesh tractors

2шт.

30

SM8124290

BOLT

BOLT - hex, 12 mm - 1.25 x 90 mm, syncromesh tractors

10шт.

31

SM8124285

BOLT

BOLT - hex, 12 mm - 1.25 x 85 mm, syncromesh tractors

1шт.

32

SM8124280

BOLT

BOLT - hex, 12 mm - 1.25 x 80 mm, syncromesh tractors

1шт.

33

SM8915342

LOCK WASHER

WASHER - lock, 12 mm, syncromesh tractors

5шт.

34

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm, Syncromesh tractors

5шт.

Выбрано товаров: 43
