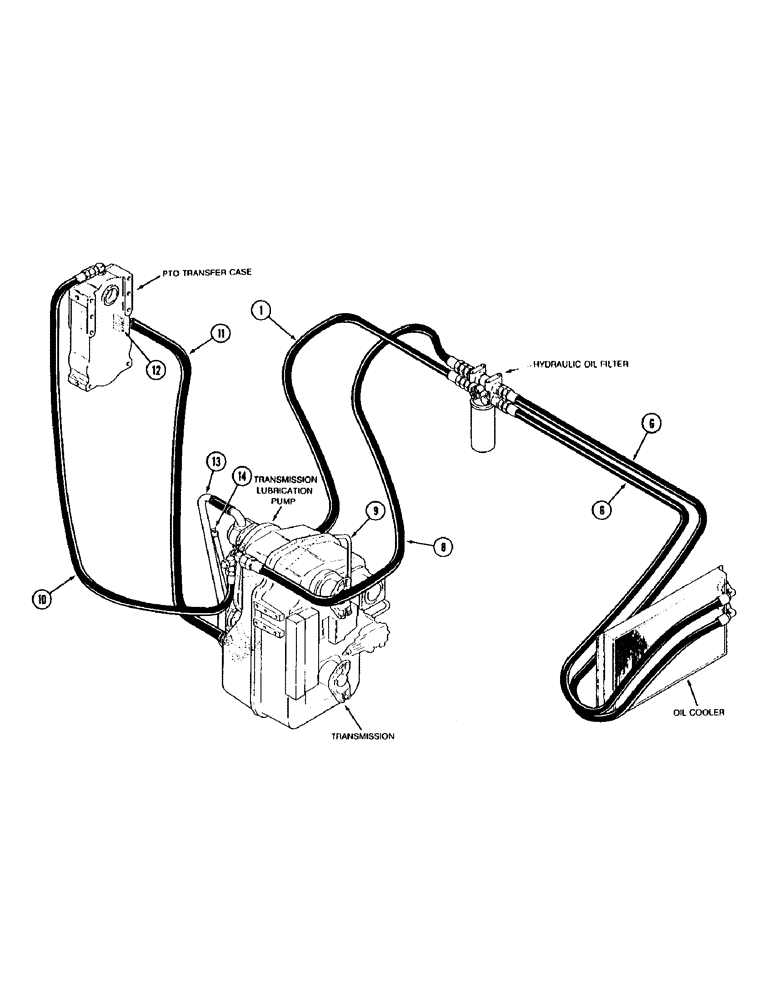

Запчасти Case IH 9270 (1-020) - LUBE HYDRAULICS SYNCHROSHIFT TRACTOR, P.I.N. JCB0028400 & AFTER (00) - PICTORIAL INDEX

1

Transmission Lubrication Supply Hose, Page 6-79

1шт.

6

Oil Cooler to Filter Hose, Page 6-79

1шт.

8

Transmission Lubrication Supply Hose, Page 6-79

1шт.

9

Transmission Lubrication Tube, Page 6-79

1шт.

10

PTO Transfer Case Lubrication Hose, Page 6-83

1шт.

11

PTO Transfer Case Return Hose, Page 6-83

1шт.

12

PTO Transfer Case Adapter Tube, Page 6-83

1шт.

13

Transmission Lubricaiton Pump Tube, Page 6-79

1шт.

14

Transmission Fill Tube, Page 6-79

1шт.
