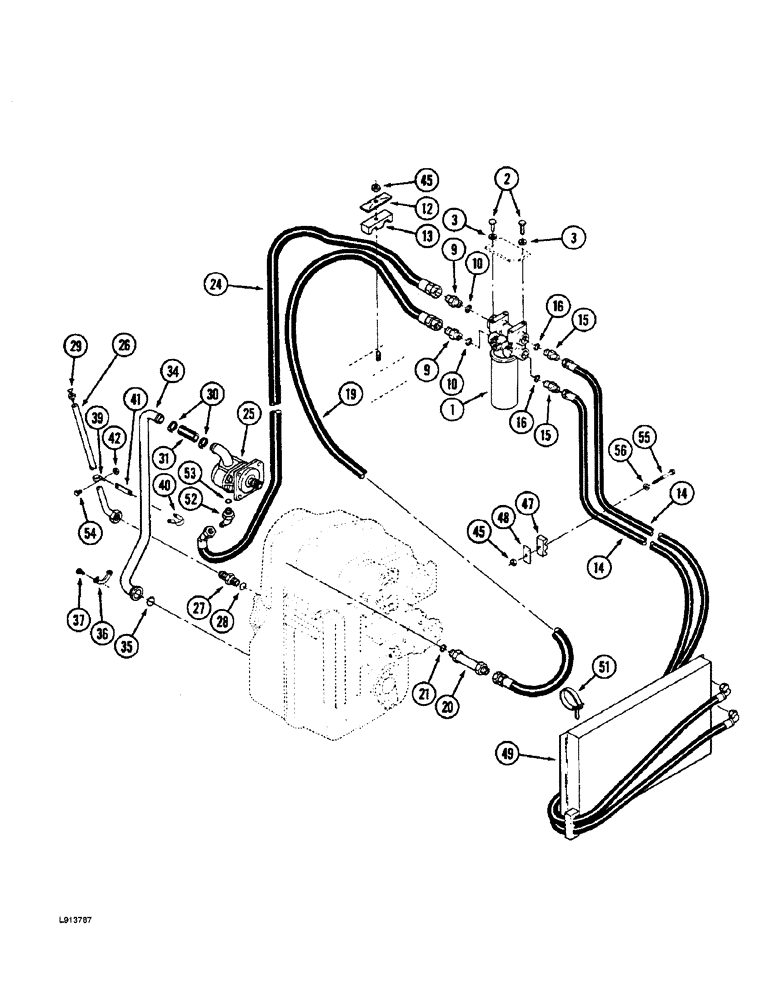

Запчасти Case IH 9270 (6-078) - TRANSMISSION LUBE TRANSMISSION TO COOLER SYNCHROMESH TRACTORS SERIAL NO. JCB0028400 & AFTER (06) - POWER TRAIN

1

REF

INSTRUCTION

FILTER - hydraulic, parts list Figure 8-22

1шт.

2

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

9

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 10

2шт.

10

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

12

50-2668T1

PLATE

- clamp support

1шт.

13

50-2965T1

HOSE CLAMP

CLAMP - double

1шт.

14

31-1486

HOSE

- cooler to filter, 138"

2шт.

15

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss

2шт.

16

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

2шт.

19

31-3014

HOSE,25.4mm ID x 2082.8mm L

- transmission to filter, 82"

1шт.

20

50-3492T1

HYD TUBE

TUBE -, Serial Range: transmission-filter

1шт.

21

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

24

31-2999

HOSE

- filter to pump (Replaces 31-3015)

1шт.

Replaced by 31-2999 (80")

1шт.

25

REF

INSTRUCTION

PUMP ASSEMBLY - lubrication, see Figure 6-36

1шт.

26

90-7490T1

TUBE,25, 2.37 mm L

- dipstick

1шт.

27

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 inch flare x O-ring boss, Includes: Ref. 28

1шт.

28

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

29

90-6546T1

DIPSTICK

- oil check

1шт.

30

31-1283

MOUNTING CLIP

CLAMP - adjustable, 1-1/4 x 2-5/8 inch

2шт.

31

1-4571

HOSE

- 4-1/2 inch (114 mm) long, cut from 1-4482 bulk hose, see below, Serial Range: pump-transmission

1шт.

34

90-7518T1

TUBE,33.82, 6.03 mm L

- pump to transmission

1шт.

35

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

36

31-1910

COUPLING FLANGE

FLANGE - split, clamp halves

2шт.

37

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

4шт.

39

31-1348

CLAMP

- P-type

1шт.

40

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type 1 1/2", Insul, 3/8" Bolt

1шт.

41

90-6588T1

SUPPORT

BRACKET - support

1шт.

42

425-106

NUT,3/8"-16, Cl 5

2шт.

45

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

47

50-2534T1

CLAMP

- split, one-half

1шт.

48

50-2533T1

PLATE

- clamp support

1шт.

49

REF

INSTRUCTION

COOLER - lubrication, parts list Figure 8-26

1шт.

51

50-2037T1

STRAP

- tie

1шт.

52

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, 1-5/16-12 inch flare x adj O-ring boss, Includes: Ref. 53

1шт.

53

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

54

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

2шт.

55

426-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

- hex, 5/16 NC x 2-1/2 inch

1шт.

56

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

1-4482

LARGE HOSE

HOSE - bulk, 120 inch (3048 mm) long

1шт.
