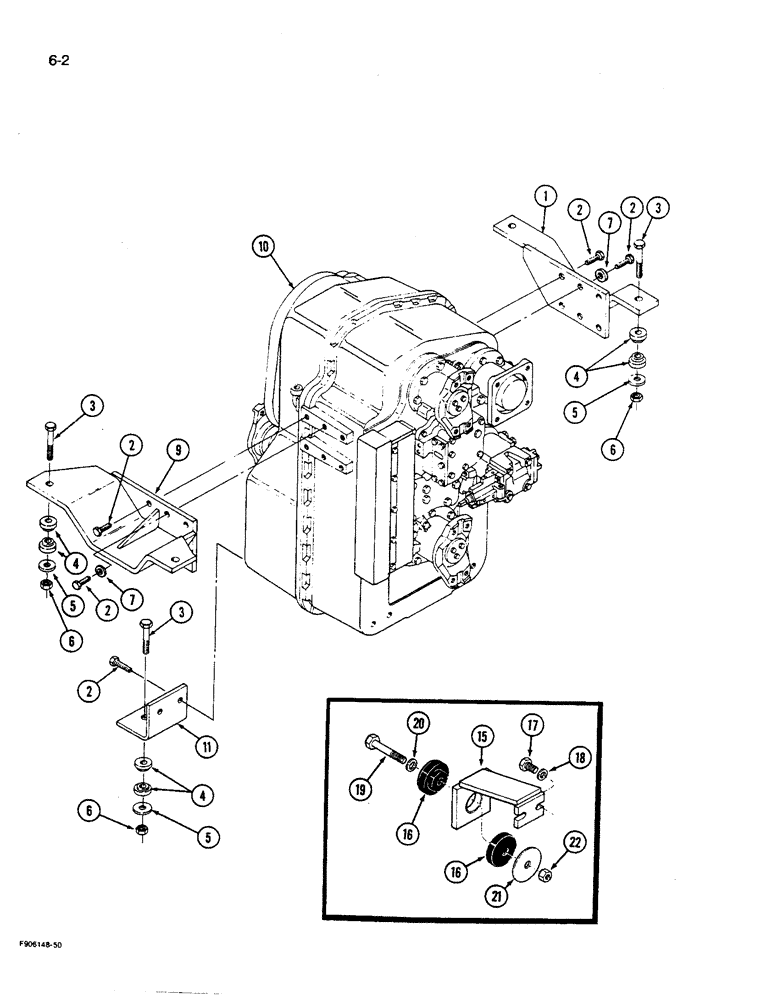

Запчасти Case IH 9270 (6-002) - TRANSMISSION MOUNTING POWER SHIFT TRACTOR (06) - POWER TRAIN

1

70-5981T2

SUPPORT

MOUNT - transmission, left-hand

1шт.

2

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

16шт.

3

426-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

6шт.

4

47-4171

SHOCK ABSORBER

MOUNT - isolator, rubber

12шт.

5

19-5518

WASHER

- flat, 25/32 x 4 x 3/16 inch

6шт.

6

232-46114

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

6шт.

7

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

4шт.

9

70-5983T4

SUPPORT

MOUNT - transmission, right-hand

1шт.

10

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - power shift, see Figures 6-6 - 6-32

1шт.

11

70-5782T1

SUPPORT

MOUNT - transmission, lower

2шт.

Used prior to P.I.N. JCB0027972.

1шт.

15

90-7626T1

MOUNTING PARTS

MOUNT - transmission, lower

2шт.

Inline mounting, used P.I.N. JCB0027972 and after.

1шт.

15

90-7489T3

SUPPORT

MOUNT - transmission, lower, shown

2шт.

Offset mounting, used P.I.N. JCB0027972 and after.

1шт.

16

47-4171

SHOCK ABSORBER

MOUNT - isolator, rubber

4шт.

Used with Ref. 15 only.

1шт.

17

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

4шт.

Used with Ref. 15 only.

1шт.

18

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

4шт.

Used with Ref. 15 only.

1шт.

19

426-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

2шт.

Used with Ref. 15 only.

1шт.

20

495-11081

WASHER,3/4", SAE

2шт.

Used with Ref. 15 only.

1шт.

21

19-5518

WASHER

- flat, 25/32 x 4 x 3/16 inch

2шт.

Used with Ref. 15 only.

1шт.

22

232-46114

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

2шт.

Used with Ref. 15 only.

1шт.

70-6482T1

MOUNTING PARTS

MOUNT - Lower, Released to correct Powertrain Vibration Complaints. 02/27/96

1шт.

70-6486T2

MOUNTING PARTS

MOUNT - Upper, Released to correct Powertrain Vibration Complaints. 02/27/96

1шт.
