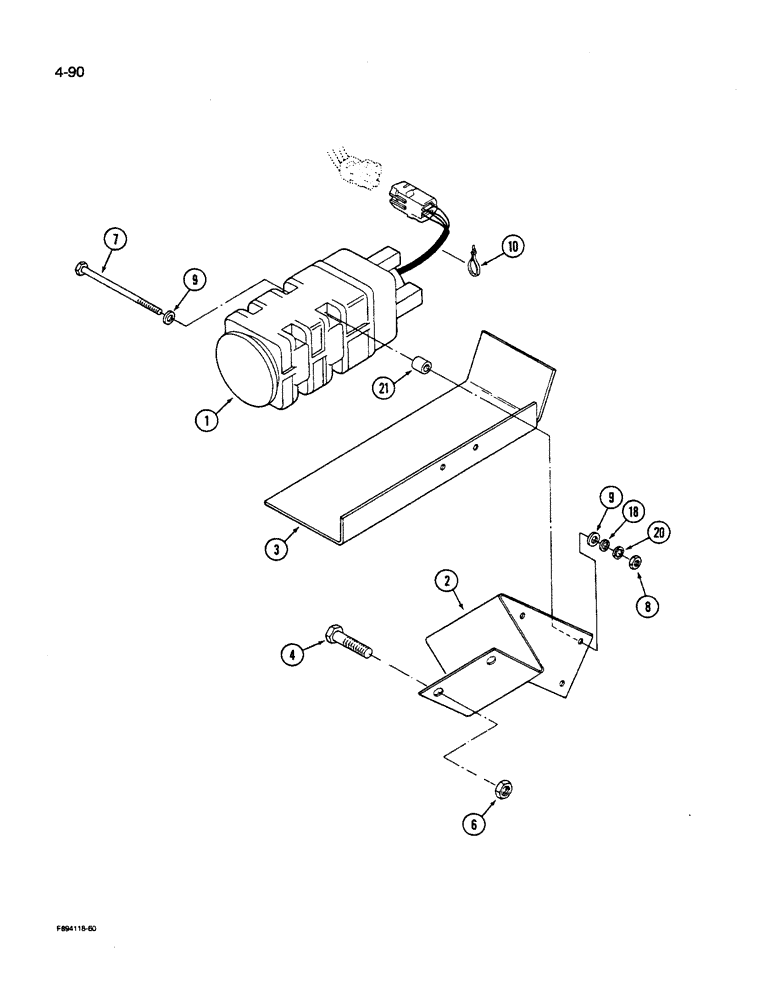

Запчасти Case IH 9270 (4-090) - GROUND SPEED SENSOR (04) - ELECTRICAL SYSTEMS

1

1983294C1

SPEED LIMITER

SENSOR - speed, ground

1шт.

1

87733890R

REMAN-SENSOR

9270, 9280, Both CASE IH STEIGER POWER SHIFT 4WD TRACTOR (S/N JCB0027096 & AFTER) (2/91-5/95), 9270 (S/N JCB0027096 & AFTER), 9280 (S/N JEE0033803 & AFTER), Both CASE IH STEIGER SYNCHROSHIFT 4WD TRACTOR, All SENSOR - speed, ground, Reman for New PN 1983294C1

1шт.

1

87733890C

CORE-SENSOR

Return Number

1шт.

2

60-6130T1

BRACKET

- mounting, sensor

1шт.

3

60-6131T1

GUARD ASSY.

GUARD - sensor

1шт.

4

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

6

19-82

LOCK NUT

- hex lock, 1/2 inch NC

2шт.

7

413-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

- hex, 1/4 NC x 4-1/2 inch

4шт.

8

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

9

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

8шт.

10

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

20

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal lock, 1/4 inch

1шт.

21

50-2955T1

SPACER

- bracket, mounting

4шт.
