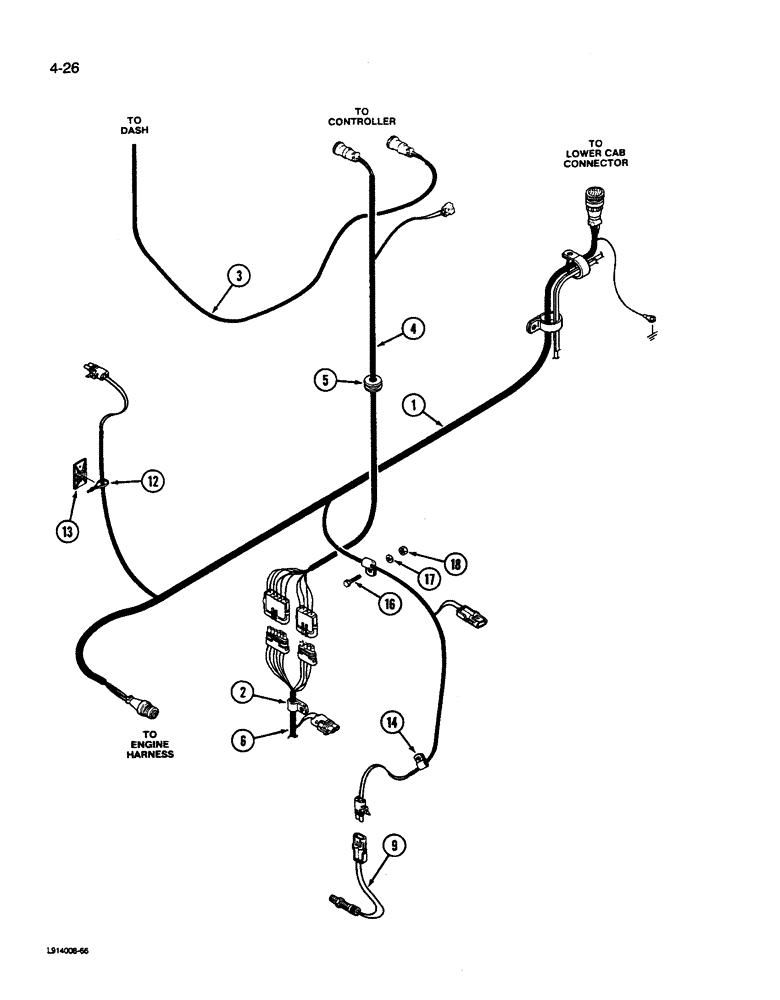

Запчасти Case IH 9270 (4-026) - TRANSMISSION HARNESS POWER SHIFT TRANSMISSION P.I.N. JCB0028400 & AFTER (04) - ELECTRICAL SYSTEMS

1

60-6782T1

HARNESS

ASSEMBLY - transmission

1шт.

2

31-1775

CLAMP

- retaining

1шт.

3

60-6089T1

HARNESS

ASSEMBLY - dash display

1шт.

4

60-6288T1

HARNESS

ASSEMBLY - transmission solenoid

1шт.

5

1-1051

GROMMET

- protective

1шт.

6

60-6800T1

HARNESS

ASSEMBLY - transmission solenoid

1шт.

7

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining

2шт.

9

60-6085T1

SENSOR

- magnetic, MPH

1шт.

12

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

13

22-823

MOUNT

MOUNT - strap, adhesive backed

1шт.

14

31-1862

CLAMP

- retaining

1шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.
