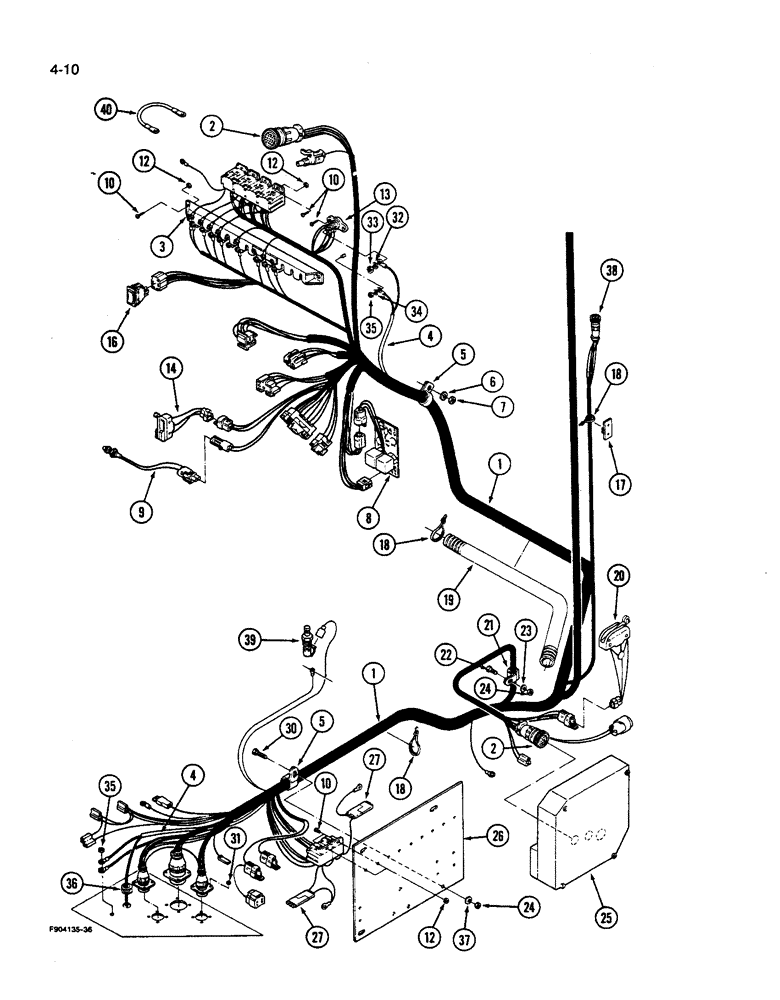

Запчасти Case IH 9270 (4-010) - LOWER ROPS HARNESS POWER SHIFT TRACTOR (04) - ELECTRICAL SYSTEMS

1

60-6452T2

HARNESS

ASSEMBLY - ROPS main (Replaces 60-6452T1), Includes: Ref. 2

1шт.

2

1301191C1

CONNECTION

RING - lock, connector

2шт.

3

20-2485T91

BREAKER

BRACKET - mounting, circuit breaker (See Figure 4-16)

1шт.

4

60-6301T1

HARNESS

ASSEMBLY - relay power, Serial Range: -JCB0028400

1шт.

4

60-6803T1

HARNESS

ASSEMBLY - relay power, Start Serial: JCB0028400

1шт.

5

31-1349

MOUNTING CLIP

CLAMP - retaining, harness

2шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

7

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

8

REF

INSTRUCTION

FLASHER ASSEMBLY - time base (See Figure 4-88)

1шт.

9

60-6027T1

SENSOR

ASSEMBLY - proximity (See Figure 6-70)

1шт.

10

459-5108

SCREW,Slotted Pan Hd, #10-32 x 1/2", G5

- pan head machine, No. 10 NF x 1/2 inch

8шт.

12

19-481

SERRATED NUT

- keps, No. 10 NF

8шт.

13

20-1451T1

BLOCK

- junction

1шт.

14

20-2340T91

IGNITION SWITCH

SWITCH ASSEMBLY - micro (See Figure 6-70) (Order 20-2333T1switch and 60-2666T1 wire)

1шт.

16

1964752C1

SWITCH

- light

1шт.

17

22-823

MOUNT

MOUNT - strap, adhesive backed

1шт.

18

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

19

50-2962T1

CONDUIT

PROTECTOR - flexguard (Order S119717 and, Serial Range: cut-length)

1шт.

20

60-6059T91

IGNITION SWITCH

SWITCH - model lever (See Figure 6-62)

1шт.

21

T50104

CLAMP

- retaining, harness

1шт.

22

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

1шт.

23

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

24

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

2шт.

25

REF

INSTRUCTION

CONTROLLER ASSEMBLY - transmission (See Figure 6-60)

1шт.

26

REF

INSTRUCTION

PLATE - mounting, relay (See Figure 4-18)

1шт.

27

22-738

DIODE

- electrical

2шт.

30

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

31

19-5564

LOCK NUT,#6-32, GB

NUT - hex lock, No. 6 NC

12шт.

32

19-5577

LOCK WASHER

- lock, 3/8 inch

1шт.

33

115772

NUT

- hex brass, 3/8 inch NC

1шт.

34

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

35

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

36

D37936

GROMMET

- protective

1шт.

37

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

38

60-6127T1

CONNECTION

LOCK RING - connector

1шт.

39

245175C1

SWITCH

- park brake (See Figure 7-4)

1шт.

40

60-6804T2

CABLE

STRAP - ground, Start Serial: JCB0028400

1шт.
