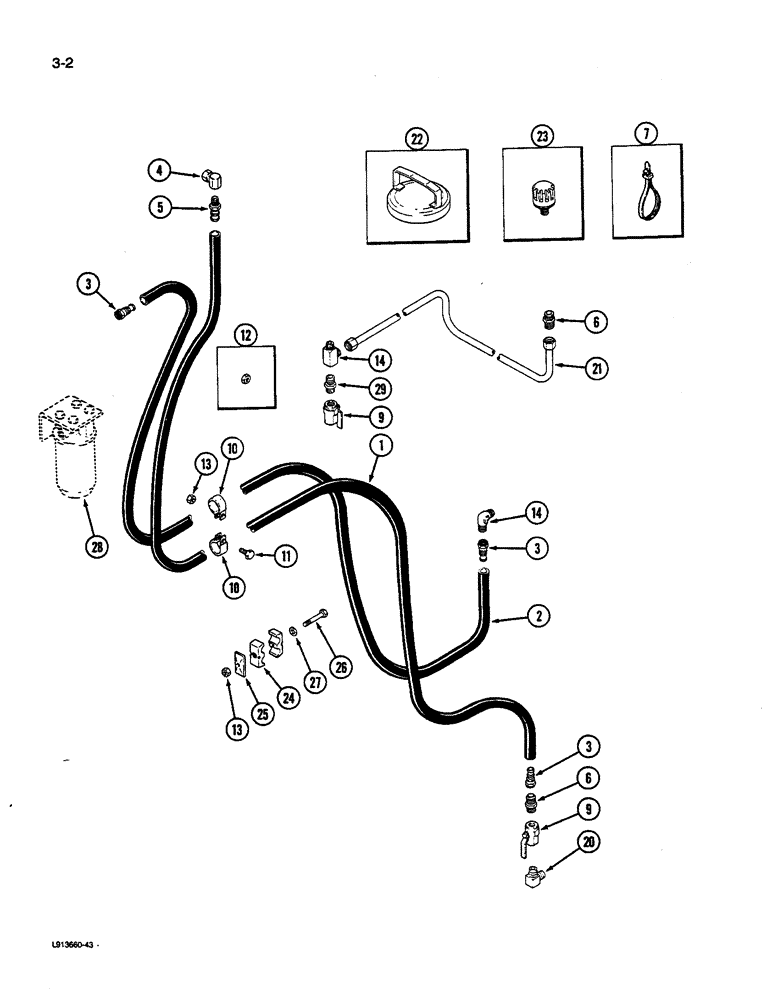

Запчасти Case IH 9270 (3-002) - FUEL LINE SYSTEM (03) - FUEL SYSTEM

1

31-2967

HOSE

15.9 mm ID x 4368.8 mm, Fuel, Supply; Order 50-3418X1, and Cut to Required Length

1шт.

2

31-3047

HOSE

15.9 mm ID x 4546.6mm, Fuel, Return; Order 50-3418X1, and Cut to Required Length (Replaces 31-2953)

1шт.

Replaced by 31-3047 179" Hose, Order 50-3418T1 30' Bulk Hose and cut to fit.

1шт.

3

31-2976

FITTING

CONNECTOR - straight, 7/8-14 inch swivel x 5/8 hose barb end

3шт.

4

31-2947

ELBOW

- 90 degree swivel, 3/4-16 thread x 1/2 inch PT

1шт.

5

31-2966

FITTING

CONNECTOR - straight, 1/2-14 inch PT x 5/8 hose barb end

1шт.

6

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 7/8-14 thread x 1/2 inch PT

2шт.

7

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.

9

31-1267

SHUT-OFF VALVE

VALVE - shut off, 1/2 inch PT

2шт.

10

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

- retaining, hose

4шт.

11

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

14

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 thread x 1/2 inch PT

1шт.

15

31-1000

TEE

- adapter, 7/8-14 thread branch x 1/2 inch PT

1шт.

20

217-1226

ELBOW,90 Degree, 1/2"-14 Male

- 90 degree, 1/2 inch PT thread (Shown), Start Serial: JCB0027691

1шт.

20

31-345

FITTING

CONNECTOR - straight, 1/2 x 1/2 inch PT, Serial Range: -JCB0027691

1шт.

21

90-7508T1

FUEL TUBE,.625" OD

TUBE ASSEMBLY - fuel, tank

1шт.

22

A162191

CAP

- fuel

1шт.

23

1971726C1

BREATHER,1/4" - 18

VENT ASSEMBLY - breather, fuel tank

1шт.

24

50-3396T1

FIXING BRACKET

CLAMP - half, hose

4шт.

25

50-2533T1

PLATE

COVER - clamp

2шт.

26

426-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

- hex, 5/16 NC x 2-1/2 inch

1шт.

27

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

28

REF

INSTRUCTION

ELEMENT - filter, fuel (See Figure 2-16)

1шт.

29

31-345

FITTING

CONNECTOR - straight, 1/2 x 1/2 inch PT

1шт.
