Запчасти Case IH 9270 (9-110) - 60-6416T1 DECALS (09) - CHASSIS/ATTACHMENTS

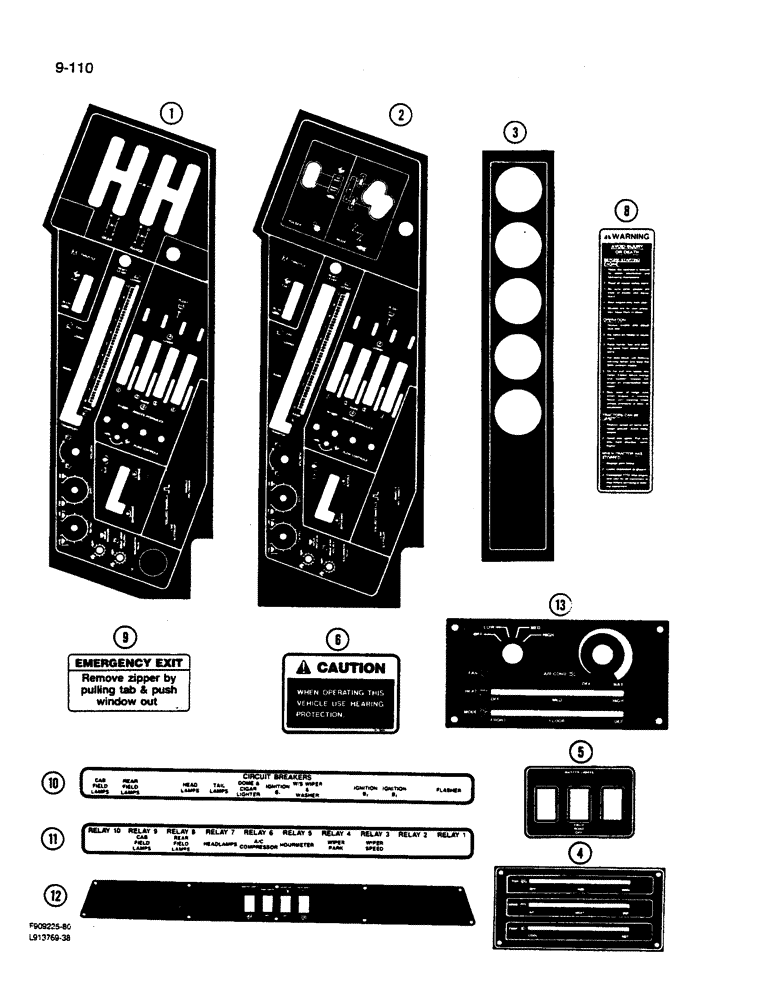

Схема запчастей Case IH 9270 - (9-110) - 60-6416T1 DECALS (09) - CHASSIS/ATTACHMENTS
3
8
10
6
2
11
9
4
1
5
13
12

Артикул

Название

Примечание

Количество

1

60-6416T1

DECAL

- control console (Power shift tractor)

1шт.

2

60-6610T3

DECAL

- control console (Mechanical shift tractor)

1шт.

3

60-5939T2

DECAL

- gauge panel

1шт.

4

60-5932T1

DECAL

- air conditioning/heating controls (If equipped)

1шт.

5

60-5980T1

DECAL

- master lights, ROPS

1шт.

6

60-5866T1

DECAL

- hearing protection

1шт.

8

60-6468T1

DECAL

- safety, cab post

1шт.

9

2-6879T1

DECAL

- emergency exit, cab

1шт.

10

60-6297T1

DECAL

- circuit breaker

1шт.

11

60-6298T1

DECAL

- relay

1шт.

12

60-6458T2

DECAL

- overhead

1шт.

13

60-6716T1

DECAL

- air conditioning/heating controls (If equipped)

1шт.

Выбрано товаров: 12
