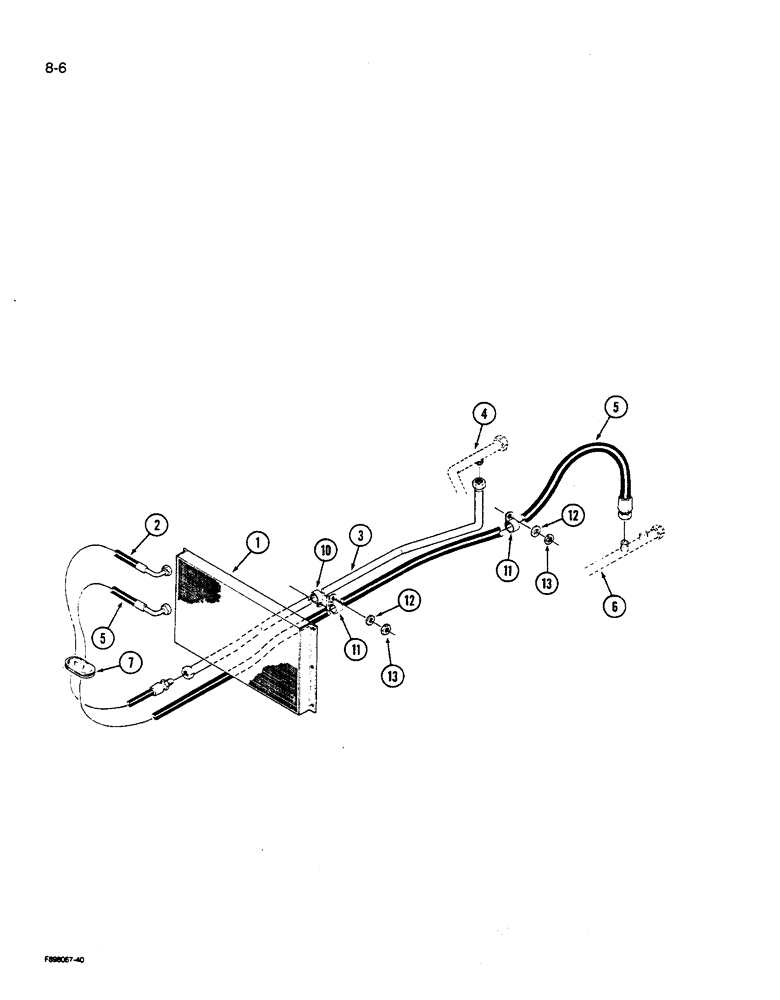

Запчасти Case IH 9270 (8-006) - OIL COOLER SYSTEM PRIOR TO P.I.N. JCB0028400 (08) - HYDRAULICS

1

90-6708T1

OIL COOLER

COOLER - oil, hydraulic (See Figure 8-22 for mounting)

1шт.

2

31-2761

HOSE

ASSEMBLY - oil cooler to tube (80 inch)

1шт.

3

50-3254T1

HYD TUBE

TUBE ASSEMBLY - cooler supply

1шт.

4

REF

INSTRUCTION

TUBE - to oil filter (See Figure 8-2)

1шт.

5

31-2962

HOSE

ASSEMBLY - cooler return, 126 1/2" long

1шт.

6

REF

INSTRUCTION

TUBE - hydraulic oil return (See Figure 8-2)

1шт.

7

NSS

NOT SOLD SEPARAT

GROMMET - hose protection (Order 31-1785T1, Serial Range: cut-length)

1шт.

31-1785

GROMMET

- bulk, 10 foot roll

1шт.

10

31-1776

MOUNTING CLIP

CLAMP - retaining

1шт.

11

308576R1

CLAMP

- retaining

4шт.

12

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.
