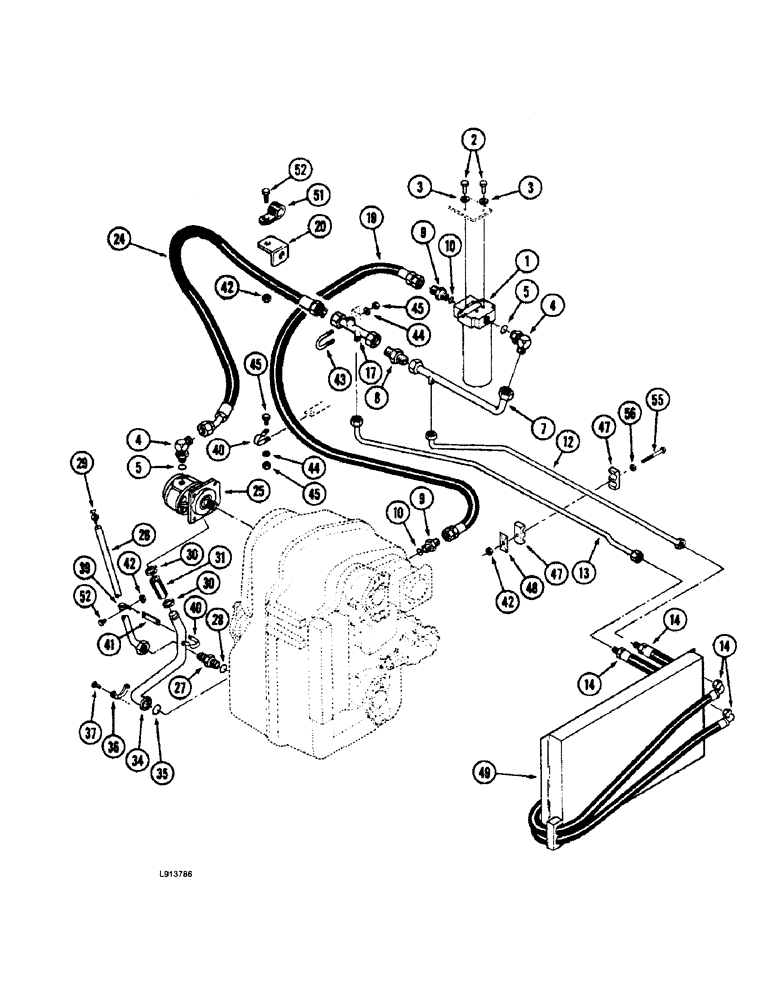

Запчасти Case IH 9270 (6-072) - TRANSMISSION LUBE TRANSMISSION TO COOLER POWERSHIFT TRACTORS PRIOR TO SERIAL NO. JCB0028400 (06) - POWER TRAIN

1

REF

INSTRUCTION

FILTER - hydraulic, parts list Figure 8-22

1шт.

2

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

4

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-5/8-12 flare x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 5

2шт.

5

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

7

50-3131T1

HYD TUBE

TUBE - filter to check valve

1шт.

8

90-6578T1

VALVE POPPET

VALVE - check

1шт.

9

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 10

2шт.

10

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

12

50-3129T1

HYD TUBE

TUBE - to cooler hose

1шт.

13

50-3128T2

HYD TUBE

TUBE - cooler return

1шт.

14

31-2709

HOSE

103 inch long, at cooler

2шт.

17

50-3442T1

HYD TUBE

TUBE - tee, from, Serial Range: cooler-pump

1шт.

19

31-2938

HOSE

, Serial Range: transmission-filter

1шт.

20

90-6894T1

SUPPORT

BRACKET - clamp mounting, tube support

1шт.

24

31-2969

HOSE

65 inch long, Serial Range: filter-pump

1шт.

25

REF

INSTRUCTION

PUMP ASSEMBLY - lubrication, parts list Figure 6-30

1шт.

26

90-7490T1

TUBE,25, 2.37 mm L

- dipstick

1шт.

27

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 inch flare x O-ring boss, Includes: Ref. 28

1шт.

28

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

29

90-6546T1

DIPSTICK

- oil check

1шт.

30

31-1283

MOUNTING CLIP

CLAMP - adjustable, 1-1/4 x 2-5/8 inch

2шт.

31

1-4571

HOSE

4-1/2 inch (114 mm) long, cut from 1-4482 bulk hose, see below, Serial Range: pump-transmission

1шт.

34

90-7064T1

TUBE,1.5" OD

- pump to transmission, without PTO

1шт.

34

90-7063T1

TUBE,1.5" OD

- pump to transmission, with PTO

1шт.

35

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

36

31-1910

COUPLING FLANGE

FLANGE - split, clamp halves

2шт.

37

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

4шт.

39

31-1348

CLAMP

- P-type

1шт.

40

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type 1 1/2", Insul, 3/8" Bolt

2шт.

41

90-6588T1

SUPPORT

BRACKET - support, suction tube to dipstick tube

1шт.

42

425-106

NUT,3/8"-16, Cl 5

3шт.

43

19-153

U-BOLT

5/16 inch NC

1шт.

44

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

45

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

47

50-2551T1

CLAMP

- hose, split, includes both halves

2шт.

48

50-2533T1

PLATE

- clamp support

1шт.

49

REF

INSTRUCTION

COOLER - lubrication, parts list Figure 8-26

1шт.

51

31-1427

MOUNTING CLIP

CLAMP - P-type

1шт.

52

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

3шт.

55

426-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

- hex, 5/16 NC x 2-1/2 inch

1шт.

56

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

1-4482

LARGE HOSE

HOSE - bulk, 120 inch (3048 mm) long

1шт.
