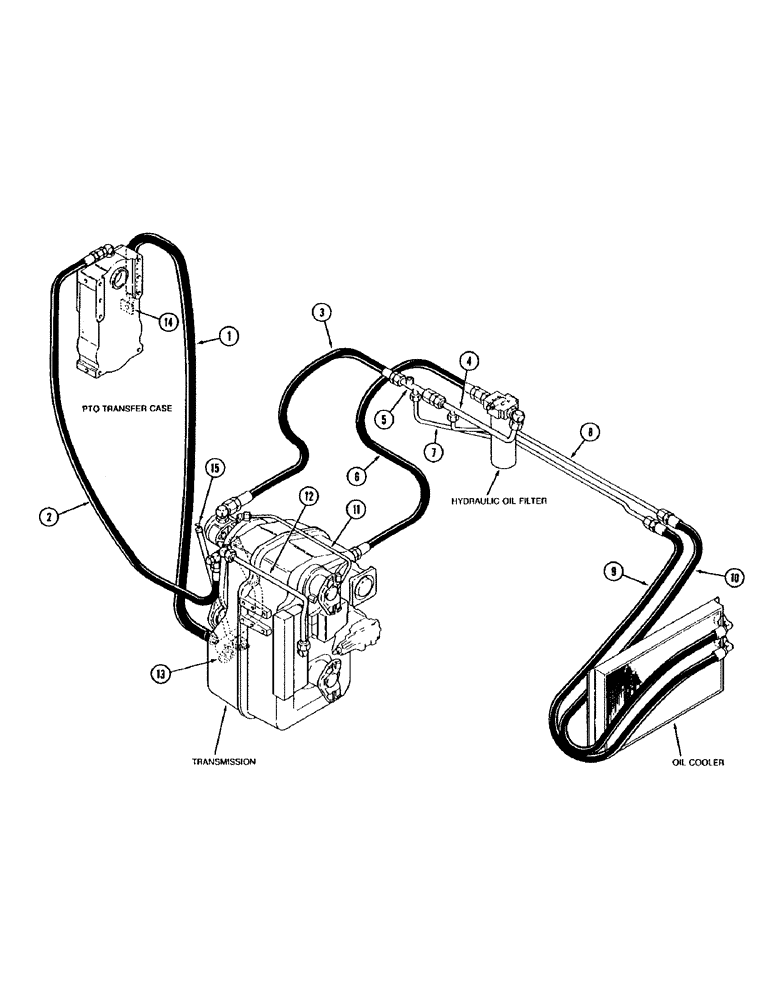

Запчасти Case IH 9270 (1-014) - LUBE HYDRAULICS POWER SHIFT TRACTOR, PRIOR TO P.I.N. JCB0028400 (00) - PICTORIAL INDEX

1

PTO Transfer Case Return Tube, Page 6-77

1шт.

2

PTO Transfer Case Lubricaiton Hose, Page 6-77

1шт.

3

Transmission Lubricaiton Supply Hose, Page 6-73

1шт.

4

Oil Filter Supply Tube, Page 6-73

1шт.

5

Oil Filter Regulator Valve Tube, Page 6-73

1шт.

6

Transmission Lubricaiton Supply Tube, Page 6-73

1шт.

7

Oil Cooler Supply Tube, Page 6-73

1шт.

8

Oil Cooler Return Tube, Page 6-73

1шт.

9

Oil Cooler Supply Hose, Page 6-73

1шт.

10

Oil Cooler Return Hose, Page 6-73

1шт.

11

Transmission Lubrication Tube, Page 6-77

1шт.

12

Transmission Lubrication Tube, Page 6-77

1шт.

13

Transmission Lubrication Supply tube, Page 6-73

1шт.

14

PTO Transfer Case Return Hose Tube, Page 6-77

1шт.

15

Transmission Fill Tube, Page 6-73

1шт.
