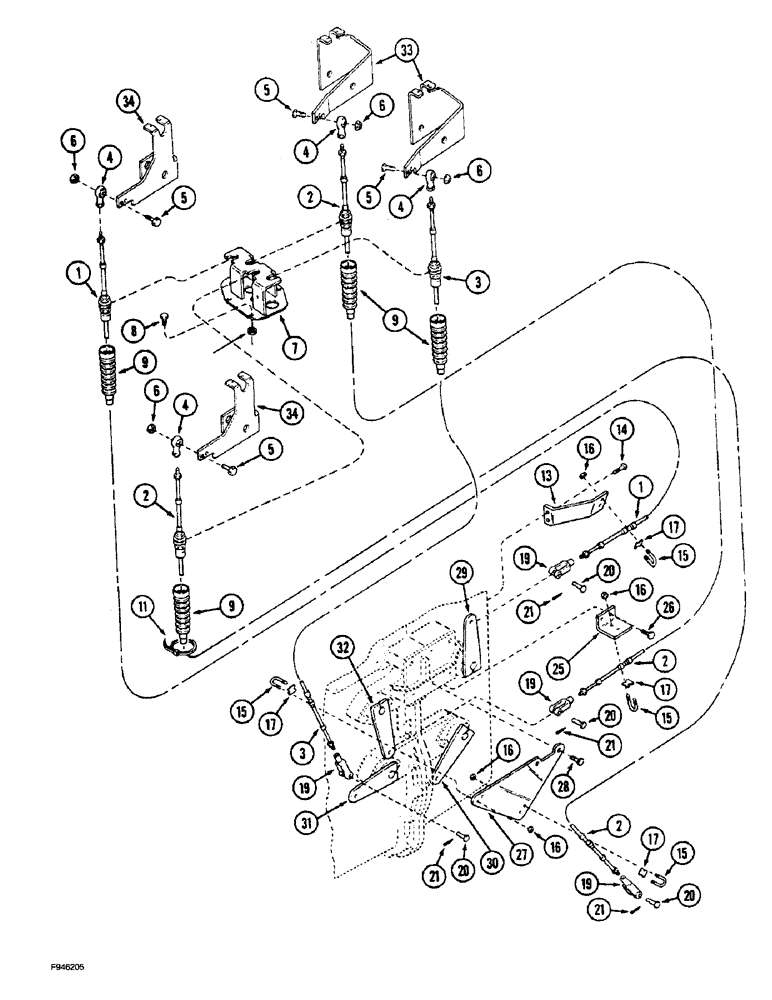

Запчасти Case IH 9270 (6-069A) - TRANSMISSION SHIFT CONTROLS SHIFT LEVER CABLES SYNCHROSHIFT TRACTORS (06) - POWER TRAIN

1

60-6564T2

CABLE

- shift lever, A-B range

2шт.

2

60-6641T1

CABLE

- shift lever, C range

1шт.

3

60-6640T1

CABLE

- shift lever, D range

1шт.

4

19-6233

BALL JOINT

JOINT - ball

4шт.

5

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

6

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

4шт.

7

60-6668T3

MOUNTING PARTS

MOUNT - cable

1шт.

8

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

4шт.

9

60-4279T2

BELLOWS

BOOT - rubber

4шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

11

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

4шт.

13

90-7768T1

SUPPORT

BRACKET - cable support

1шт.

14

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

2шт.

15

90-7452T1

U-BOLT,U, 3/8" - 16 x 44mm

retainer, cable

4шт.

16

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

8шт.

17

90-7453T1

SHIM

SADDLE - clamp

4шт.

19

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8 inch NF

4шт.

20

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened 3/8" x 1 1/16"

4шт.

21

32-616

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

4шт.

25

90-7769T1

SUPPORT

BRACKET - mounting, cable

1шт.

26

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

2шт.

27

90-7770T1

SUPPORT

PLATE - mounting, cable

1шт.

28

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

29

REF

INSTRUCTION

LEVER - shift, see Figure 6-59I

1шт.

30

REF

INSTRUCTION

LEVER - shift, see Figure 6-59I

1шт.

31

REF

INSTRUCTION

LEVER - shift, see Figure 6-59K

1шт.

32

REF

INSTRUCTION

LEVER - shift, see Figure 6-59K

1шт.

33

REF

INSTRUCTION

BRACKET - shift, outer, see Figure 6-66

2шт.

34

REF

INSTRUCTION

BRACKET - shift, inner, see Figure 6-66

2шт.
