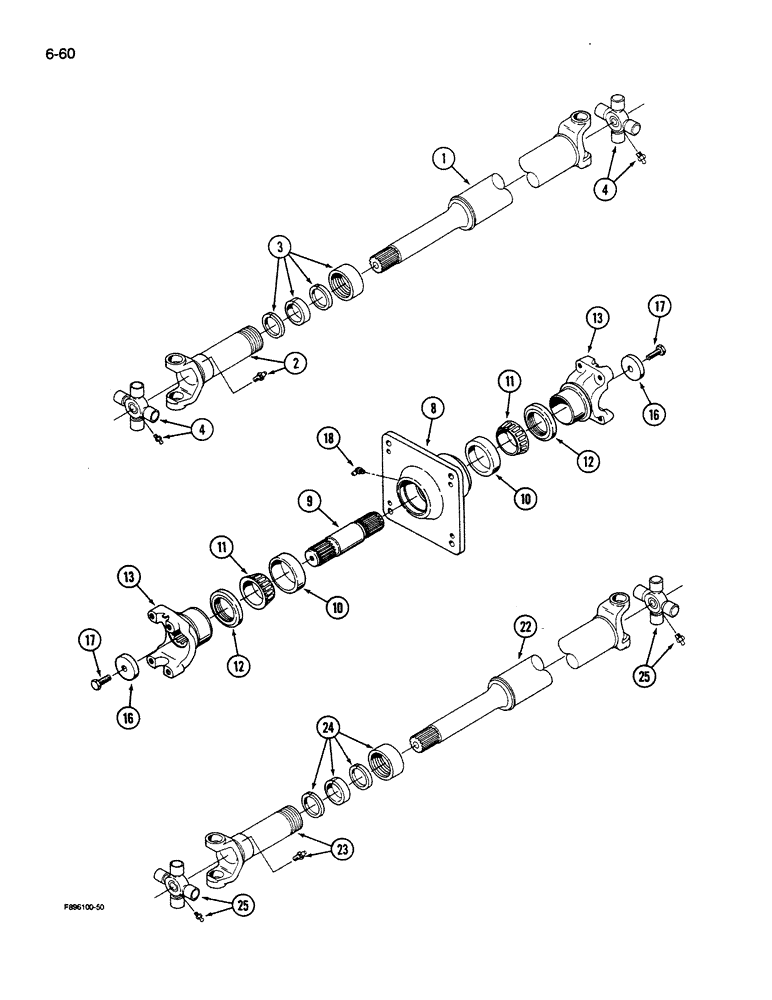

Запчасти Case IH 9270 (6-60) - PTO DRIVE SHAFT ASSEMBLIES (06) - POWER TRAIN

90-7010T91

DRIVE SHAFT

SHAFT ASSEMBLY - drive, PTO, PTO clutch to hanger bearing, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - flanged

1шт.

3

33-1001T1

SEAL RETAINER

SEAL ASSEMBLY - shaft retainer

1шт.

4

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

SPIDER ASSEMBLY - shaft

2шт.

90-7036T91

BEARING ASSY

BEARING ASSEMBLY - hanger, Includes: Ref. 8 - 18

1шт.

8

90-6759T1

HOUSING

- hanger bearing

1шт.

9

90-1930T1

SHAFT

- drive, center

1шт.

10

13363D

TAPERED BEARING

CUP - bearing, gear

2шт.

11

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

CONE - bearing

2шт.

12

90-1934T2

SEAL

- grease

2шт.

13

90-7006T1

YOKE

- shaft

2шт.

16

19-5864

WASHER

- flat

2шт.

17

26-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, Grade 8

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/4 inch PT

1шт.

90-7011T91

DRIVE SHAFT

SHAFT ASSEMBLY - drive, PTO, hanger bearing to PTO transfer case, Includes: Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

23

NSS

NOT SOLD SEPARAT

SHAFT - flanged

1шт.

24

33-1001T1

SEAL RETAINER

SEAL ASSEMBLY - shaft retainer

1шт.

25

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

SPIDER ASSEMBLY - shaft

2шт.
