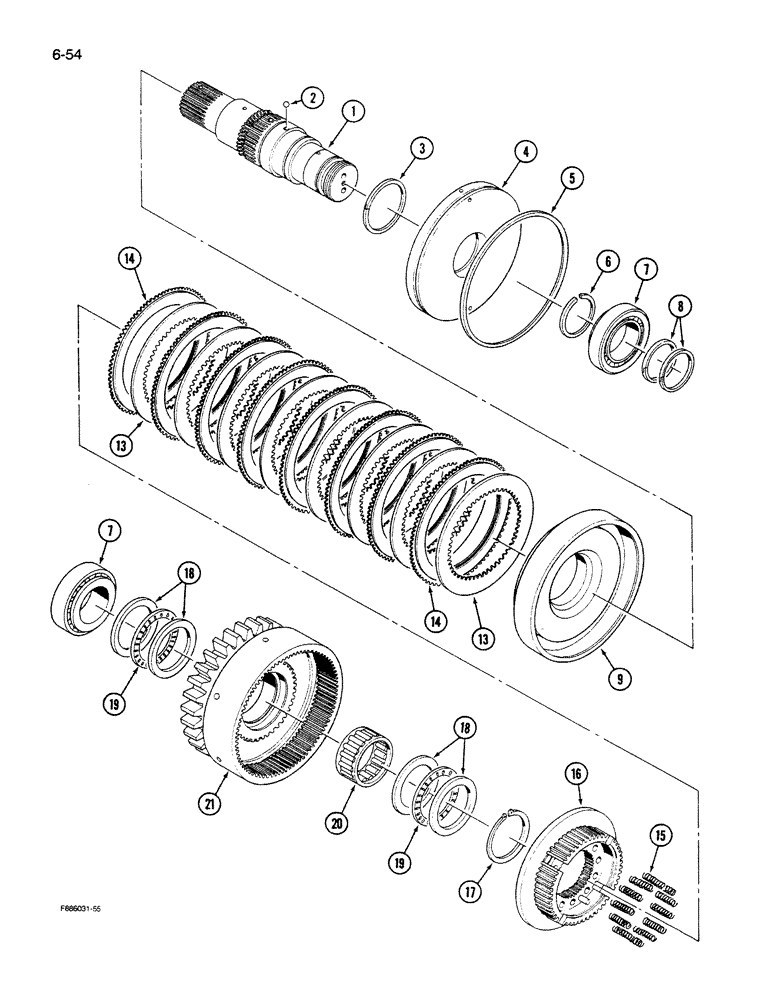

Запчасти Case IH 9270 (6-54) - PTO ASSEMBLY, CLUTCH PACK (06) - POWER TRAIN

90-7045T91

REAR PTO ASSY

PTO ASSEMBLY, Includes: Ref. 1 - 21

1шт.

S8590S00A

CLUTCH HOUSING

CLUTCH ASSEMBLY - PTO, Includes: Ref. 1 - 21

1шт.

1

S8610S00A

SHAFT

- input, PTO

1шт.

2

SM3272036

BALL

- steel

1шт.

3

S2610S00F

RING

- piston

1шт.

Part of P/N S9870S00F PTO Overhaul Kit

1шт.

4

S9190S00F

LARGE PLATE

PLATE - reaction

1шт.

5

S2630S00F

RING

- sealing

1шт.

Part of P/N S9870S00F PTO Overhaul Kit

1шт.

6

S2240S00F

RING, SNAP

RING - retaining

1шт.

7

S8730S00F

TAPERED BEARING,55mm ID x 90mm OD x 23mm W

BEARING - roller

2шт.

8

S3070S00F

RING

- sealing

2шт.

Part of P/N S9870S00F PTO Overhaul Kit

1шт.

9

33-1526T1

PISTON

- clutch

1шт.

13

S2090S00F

CLUTCH DISC,2.1mm Thk

PLATE - steel, flat, 2.1 mm thick

8шт.

14

33-1518T1

NOTCHED DISK

PLATE - faced

8шт.

15

S8690S00F

SPRING

- compression

12шт.

16

S9850S00A

HUB

- clutch (Replaces S9850S00F)

1шт.

17

S2100S00F

RING, SNAP

RING - snap

1шт.

18

S2200S00F

BEARING WASHER

WASHER - thrust, bearing

4шт.

19

S2230S00F

BEARING

- thrust

2шт.

20

S2030S00F

BEARING, ROLLER

BEARING - roller

1шт.

21

S8700S00A

PINION

GEAR - drive

1шт.
