Запчасти Case IH 9270 (6-42) - TRANSMISSION LUBRICATION, TRANSMISSION TO PTO TRANSFER CASE, IF EQUIPPED (06) - POWER TRAIN

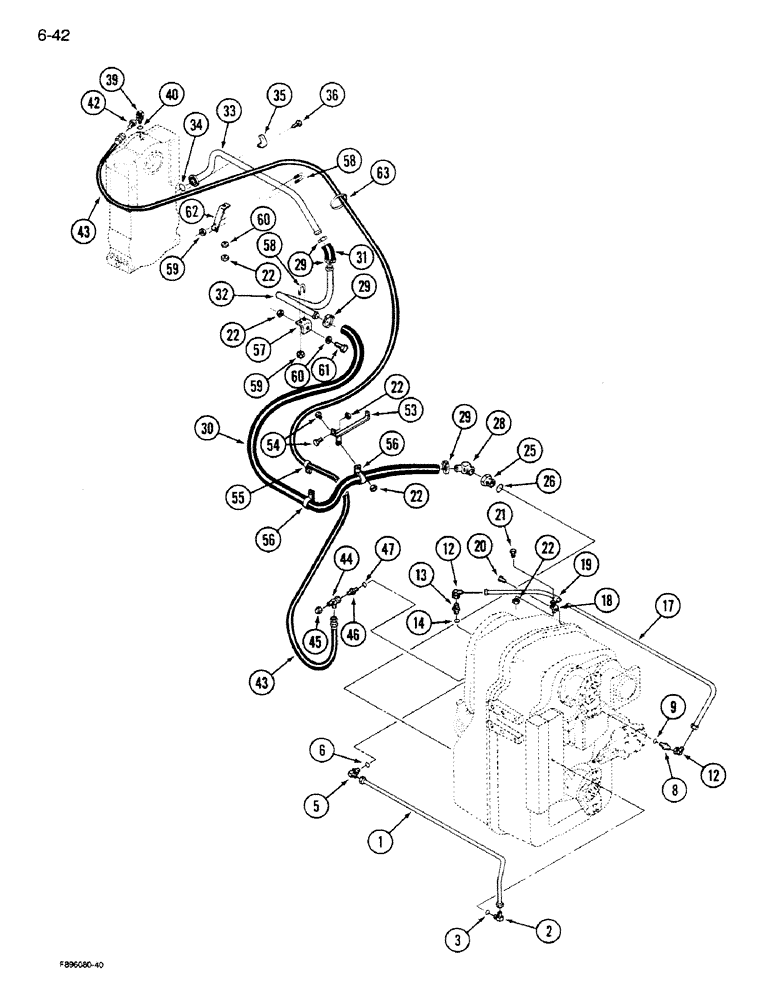

Схема запчастей Case IH 9270 - (6-42) - TRANSMISSION LUBRICATION, TRANSMISSION TO PTO TRANSFER CASE, IF EQUIPPED (06) - POWER TRAIN
22
35
22
25
32
58
21
58
57
17
1
43
19
29
34
60
13
46
56
43
36
22
20
14
59
30
9
54
59
42
12
18
2
22
56
40
33
60
62
12
47
29
55
39
26
44
63
6
8
28
45
3
22
31
53
5
61
29

Артикул

Название

Примечание

Количество

1

90-6691T1

TUBE,.5" OD

- range selector valve to PTO control valve

1шт.

2

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adj, 3/4-16 flare x 9/16-18 inch O-ring, Includes: Ref. 3

1шт.

3

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

31-367

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

- 90 degree, adjustable, 7/8 x 3/4 inch thread, Includes: Ref. 6

1шт.

6

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

8

31-329

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, 3/4 inch thread, Includes: Ref. 9

1шт.

9

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

12

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

2шт.

13

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 14 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

14

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

17

90-6889T1

TUBE,.5" OD

- regulator valve to PTO control valve

1шт.

18

90-6894T1

SUPPORT

BRACKET - mounting, clamp

1шт.

19

31-1775

CLAMP

- tube

1шт.

20

SM8121240

BOLT

BOLT - hex, 12 mm - 1.75 x 40 mm

1шт.

21

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

22

425-106

NUT,3/8"-16, Cl 5

6шт.

25

31-2777

FITTING

ADAPTER - straight, 1 inch PT x 1-5/8 inch thread, Includes: Ref. 26

1шт.

26

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-1/2 x 1/8 inch

1шт.

28

31-2778

FITTING

ELBOW - 45 degree, 1 inch PT x 1 inch hose

1шт.

29

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 13/16 to 1-3/4 inch

4шт.

30

31-2783

HOSE,1.00" ID x 68.00"

Suction, Tube to Transmission 1.00" ID x 68.00"

1шт.

31

31-2757

HOSE,1.00" ID x 4.00"

Suction; Order S118383X, and Cut to Required Length 1.00" ID x 4.00"

1шт.

32

90-6883T1

TUBE,1" OD

- drain, hose to hose

1шт.

33

90-6868T1

HYD TUBE,1" OD

TUBE - drain, PTO transfer case to hose

1шт.

34

31-1925

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- 1-1/2 x 9/64 inch

1шт.

35

31-1910

COUPLING FLANGE

FLANGE - split, clamp halves

2шт.

36

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch

8шт.

39

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 40

1шт.

40

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

42

31-2537

FITTING

CONNECTOR - orificed

1шт.

43

31-2753

HOSE

- lube, PTO control valve to PTO transfer case, 113 inch

1шт.

44

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x adj straight thread

1шт.

45

218-755

CAP,37 Degree, 3/4"-16

1шт.

46

31-432

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 9/16 x 3/4 inch thread, Includes: Ref. 47

1шт.

47

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

53

90-6881T1

SUPPORT

BRACKET - support, clamp mount

1шт.

54

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

55

31-1776

MOUNTING CLIP

CLAMP - hose

2шт.

56

31-1349

MOUNTING CLIP

CLAMP - hose

3шт.

57

90-6878T1

BRACKET - mounting, clamp

1шт.

58

19-6258

U-BOLT

- tube mounting, 1/4 NC x 1 x 1-3/4 inch

2шт.

59

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

60

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.

61

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

62

90-6869T1

BRACKET - mounting, U-bolt

1шт.

63

50-2037T1

STRAP

- nylon

1шт.

Выбрано товаров: 46
