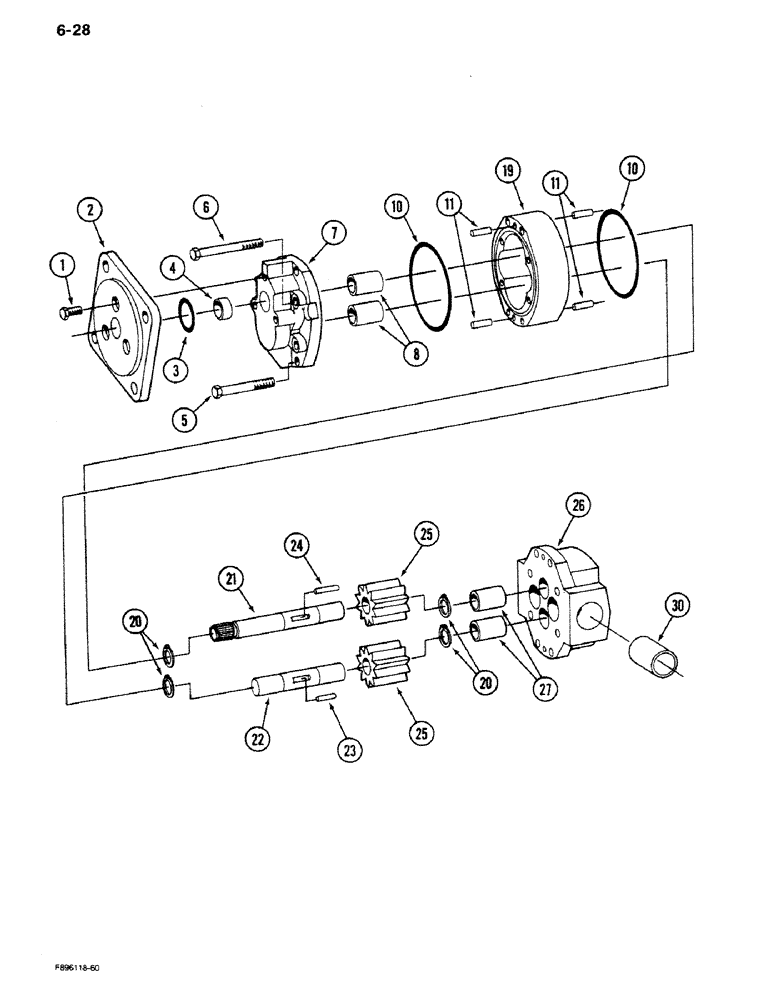

Запчасти Case IH 9270 (6-28) - TRANSMISSION, LUBRICATION PUMP (CONTD) (06) - POWER TRAIN

90-7016T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY

1шт.

Includes: Ref. 1 - 40 on Figure 6-04, 1 - 14 on Figure 6-06, 1 - 24 on Figure 6-08, 25 - 39 on Figure 6-10, 1 - 31 on Figure 6-12, 1 - 7 on Figure 6-14, 1 - 23 on Figure 6-16, 1 - 21 on Figure 6-18, 1 - 26 on Figure 6-20, 1 - 32 on Figure 6-22, 1 - 25 on Figure 6-24, 1 - 14 on Figure 6-26, 1 - 30 on Figure 6-28 and 1 - 29 on Figure 6-30.

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift; On The Steiger 9280 BSN JCB0028400, Harness Part Number 60-6289T1 Must Also Be Ordered When Replacing Original Transmission 90-7016T91.

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

33-1524T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - lubrication, Includes: Ref. 1 - 30

1шт.

33-1524T91R

REMAN-HYD PUMP

9270, 9280 Both (9/90-1/91)

1шт.

33-1524T91C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

1

33-1540T1

SCREW

BOLT - hex

3шт.

2

33-1541T1

ADAPTER

ADAPTER - pump mounting

1шт.

3

33-1542T1

O-RING

O-RING - seal

1шт.

4

33-1543T1

RING

RING - locating

1шт.

5

33-1544T1

SCREW

BOLT - hex, short

4шт.

6

33-1545T1

SCREW

BOLT - hex, long

4шт.

7

33-1546T1

HOUSING

HOUSING - front, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

BUSHING - front housing

2шт.

10

33-1547T1

O-RING

O-RING - seal, pump housing

2шт.

11

33-1548T1

DOWEL

PIN - dowel

4шт.

19

33-1549T1

HOUSING

HOUSING - center

1шт.

20

33-1550T1

RING, SNAP

RING SNAP RING - snap

4шт.

21

33-1551T1

DRIVE SHAFT

SHAFT - drive

1шт.

22

33-1552T1

SHAFT

SHAFT - idler

1шт.

23

33-1553T1

KEY

KEY - dowel, idler shaft

1шт.

24

33-1554T1

HITCH ASSY

KEY - dowel, drive shaft

1шт.

25

33-1555T1

PINION

GEAR - pump.

2шт.

26

33-1556T1

HOUSING

HOUSING - rear, Includes: Ref. 27

1шт.

27

NSS

NOT SOLD SEPARAT

BUSHING - rear housing

2шт.

30

33-1557T1

TUBE

TUBE - inlet

1шт.
