Запчасти Case IH 9270 (6-18) - TRANSMISSION, 7 INCH CLUTCH PACK, SECOND (CONTD) (06) - POWER TRAIN

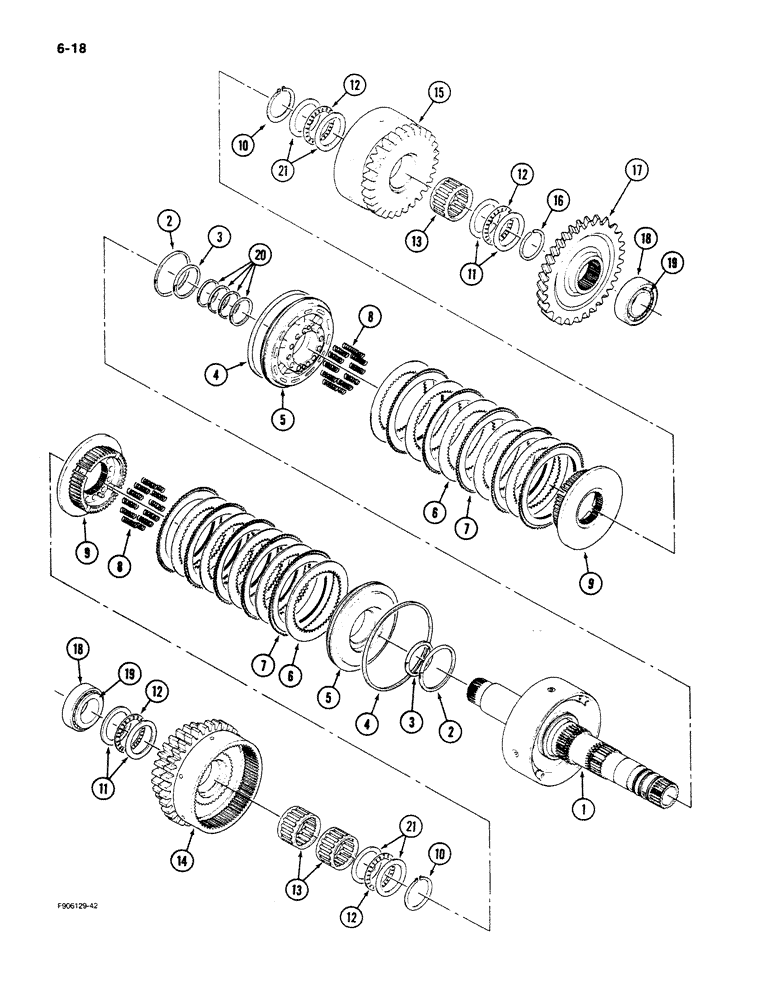

Схема запчастей Case IH 9270 - (6-18) - TRANSMISSION, 7 INCH CLUTCH PACK, SECOND (CONTD) (06) - POWER TRAIN
16
11
7
2
13
18
3
18
6
4
2
6
13
10
21
21
17
12
5
20
1
5
10
8
11
14
7
8
9
9
12
15
12
19
3
12
4
19

Артикул

Название

Примечание

Количество

90-7016T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY

1шт.

Includes: Ref. 1 - 40 on Figure 6-04, 1 - 14 on Figure 6-06, 1 - 24 on Figure 6-08, 25 - 39 on Figure 6-10, 1 - 31 on Figure 6-12, 1 - 7 on Figure 6-14, 1 - 23 on Figure 6-16, 1 - 21 on Figure 6-18, 1 - 26 on Figure 6-20, 1 - 32 on Figure 6-22, 1 - 25 on Figure 6-24, 1 - 14 on Figure 6-26, 1 - 30 on Figure 6-28 and 1 - 29 on Figure 6-30.

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift; On The Steiger 9280 BSN JCB0028400, Harness Part Number 60-6289T1 Must Also Be Ordered When Replacing Original Transmission 90-7016T91.

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

S3000S01F

CLUTCH HOUSING

CLUTCH PACK ASSEMBLY - 7 INCH, 2nd, Includes: Ref. 1 - 21

1шт.

1

S3900S01F

SHAFT ASSY.

SHAFT ASSEMBLY - drum

1шт.

2

S2620S00F

RING

RING - piston

2шт.

Part of P/N 33-1559T1 Transmission Gasket Kit

1шт.

3

S2610S00F

RING

RING - piston

2шт.

Part of P/N 33-1559T1 Transmission Gasket Kit

1шт.

4

S2630S00F

RING

RING - sealing

2шт.

Part of P/N 33-1559T1 Transmission Gasket Kit

1шт.

5

33-1521T1

PISTON

PISTON - clutch

2шт.

6

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK PLATE - steel, flat, 2.4 mm thick

1шт.

Steel Plates, a total of 10 pieces must be used

1шт.

6

S2090S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK PLATE - steel, flat, 2.1 mm thick

1шт.

Steel Plates, a total of 10 pieces must be used

1шт.

7

33-1518T1

NOTCHED DISK

PLATE - faced

10шт.

8

S2640S00F

SPRING

SPRING - return, piston

24шт.

9

S2850S00F

HUB

HUB - clutch

2шт.

10

S2100S00F

RING, SNAP

RING SNAP RING - snap

2шт.

11

S2200S00F

BEARING WASHER

WASHER - thrust, bearing

8шт.

12

S2230S00F

BEARING

BEARING - thrust

4шт.

13

S2210S00F

BEARING, ROLLER

BEARING - roller

3шт.

14

S3040S00F

PINION

GEAR - counter (34 Tooth/26 Tooth)

1шт.

15

S2280S00F

PINION

GEAR - drive (29 Tooth)

1шт.

16

S2240S00F

RING, SNAP

RING SNAP RING - retaining

1шт.

17

S3030S01F

PINION

GEAR - input (36 Tooth)

1шт.

P/N S3030S00F has 31 Teeth

1шт.

18

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

CUP - bearing

2шт.

19

529207R91

BEARING ASSY,54.99mm ID x 29mm W

CONE - bearing

2шт.

20

S3070S00F

RING

RING - sealing

4шт.

Part of P/N 33-1559T1 Transmission Gasket Kit

1шт.

21

S2220S00F

THRUST WASHER

WASHER - thrust, bearing (2.4 mm thick)

4шт.

Выбрано товаров: 34
