Запчасти Case IH 9270 (6-16) - TRANSMISSION, 7 INCH CLUTCH PACK, INPUT (CONTD) (06) - POWER TRAIN

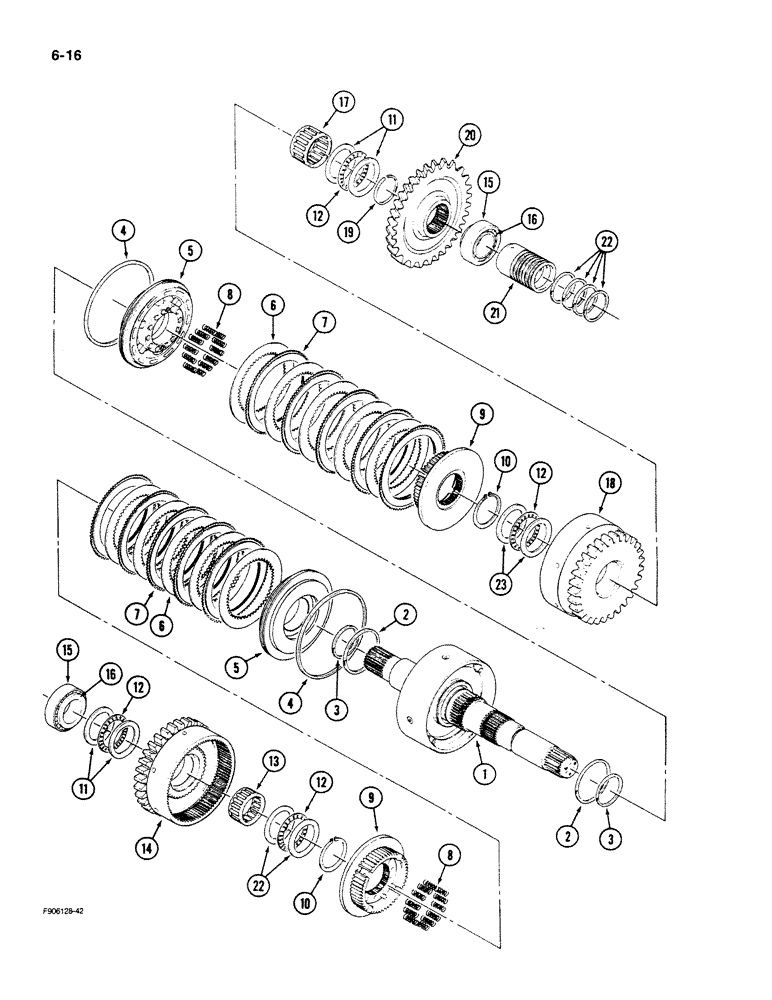

Схема запчастей Case IH 9270 - (6-16) - TRANSMISSION, 7 INCH CLUTCH PACK, INPUT (CONTD) (06) - POWER TRAIN
16
11
8
17
14
2
1
11
20
10
19
4
18
3
9
8
23
21
9
22
12
5
16
3
10
7
13
12
6
12
15
2
6
4
7
22
5
15
12

Артикул

Название

Примечание

Количество

90-7016T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY

1шт.

Includes: Ref. 1 - 40 on Figure 6-04, 1 - 14 on Figure 6-06, 1 - 24 on Figure 6-08, 25 - 39 on Figure 6-10, 1 - 31 on Figure 6-12, 1 - 7 on Figure 6-14, 1 - 23 on Figure 6-16, 1 - 21 on Figure 6-18, 1 - 26 on Figure 6-20, 1 - 32 on Figure 6-22, 1 - 25 on Figure 6-24, 1 - 14 on Figure 6-26, 1 - 30 on Figure 6-28 and 1 - 29 on Figure 6-30.

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift; On The Steiger 9280 BSN JCB0028400, Harness Part Number 60-6289T1 Must Also Be Ordered When Replacing Original Transmission 90-7016T91.

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

S2000S01A

CLUTCH HOUSING

CLUTCH PACK ASSEMBLY - 7 inch input, Includes: Ref. 1 - 23

1шт.

1

S2900S01F

SHAFT ASSY.

SHAFT ASSEMBLY - drum

1шт.

2

S2620S00F

RING

RING - piston

2шт.

Part of P/N 33-1559T1 Transmission Gasket Kit

1шт.

3

S2610S00F

RING

RING - piston

2шт.

4

S2630S00F

RING

RING - sealing

2шт.

Part of P/N 33-1559T1 Transmission Gasket Kit

1шт.

5

33-1521T1

PISTON

PISTON - clutch

2шт.

6

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK PLATE - steel, flat, 2.4 mm thick

1шт.

Steel Plates, a total of 10 pieces must be used

1шт.

6

S2090S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK PLATE - steel, flat, 2.1 mm thick

1шт.

Steel Plates, a total of 10 pieces must be used

1шт.

7

33-1518T1

NOTCHED DISK

PLATE - faced

10шт.

8

S2640S00F

SPRING

SPRING - return, piston

24шт.

9

S2850S00F

HUB

HUB - clutch

2шт.

10

S2100S00F

RING, SNAP

RING SNAP RING - snap

2шт.

11

S2200S00F

BEARING WASHER

WASHER - thrust, bearing

8шт.

12

S2230S00F

BEARING

BEARING - thrust

4шт.

13

S2030S00F

BEARING, ROLLER

BEARING - roller

1шт.

14

S2040S00F

PINION

GEAR - drive (32 Tooth)

1шт.

15

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

CUP - bearing

2шт.

16

529207R91

BEARING ASSY,54.99mm ID x 29mm W

CONE - bearing

2шт.

17

S2210S00F

BEARING, ROLLER

BEARING - roller

1шт.

18

S2280S00F

PINION

GEAR - drive (29 Tooth)

1шт.

19

S2240S00F

RING, SNAP

RING SNAP RING - retaining

1шт.

20

S2270S01F

PINION

GEAR - input (41 Tooth)

1шт.

P/N S2270S00F has 35 Teeth

1шт.

21

S2410S00F

CARRIER FLANGE SEAL

CARRIER - piston ring

1шт.

22

S2250S00F

SEALING RING

RING - sealing

4шт.

Part of P/N 33-1559T1 Transmission Gasket Kit

1шт.

23

S2220S00F

THRUST WASHER

WASHER - thrust, bearing (2.4 mm thick)

4шт.

Выбрано товаров: 35
