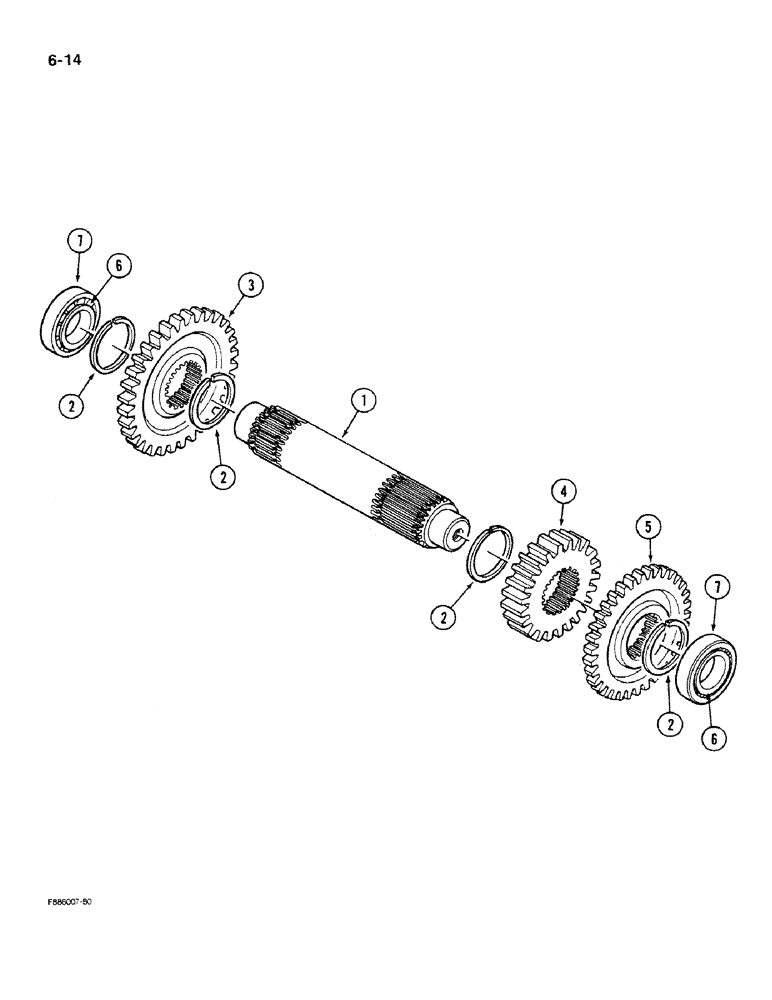

Запчасти Case IH 9270 (6-14) - TRANSMISSION, COMPOUND SHAFT (CONTD) (06) - POWER TRAIN

90-7016T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY, Includes: Ref. 1 - 7

1шт.

Includes: Ref. 1 - 40 on Figure 6-04, 1 - 14 on Figure 6-06, 1 - 24 on Figure 6-08, 25 - 39 on Figure 6-10, 1 - 31 on Figure 6-12, 1 - 7 on Figure 6-14, 1 - 23 on Figure 6-16, 1 - 21 on Figure 6-18, 1 - 26 on Figure 6-20, 1 - 32 on Figure 6-22, 1 - 25 on Figure 6-24, 1 - 14 on Figure 6-26, 1 - 30 on Figure 6-28 and 1 - 29 on Figure 6-30.

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift; On The Steiger 9280 BSN JCB0028400, Harness Part Number 60-6289T1 Must Also Be Ordered When Replacing Original Transmission 90-7016T91.

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

1

33-1436T1

SHAFT

SHAFT - compound

1шт.

2

33-1416T1

RING, SNAP

RING SNAP RING - retaining

4шт.

3

33-1415T1

PINION

GEAR - compound shaft (32 Tooth)

1шт.

4

33-1434T1

PINION

GEAR - drive (22 Tooth)

1шт.

5

33-1435T1

PINION

GEAR - driven (29 Tooth)

1шт.

6

529207R91

BEARING ASSY,54.99mm ID x 29mm W

CONE - bearing

2шт.

7

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

CUP - bearing

2шт.
