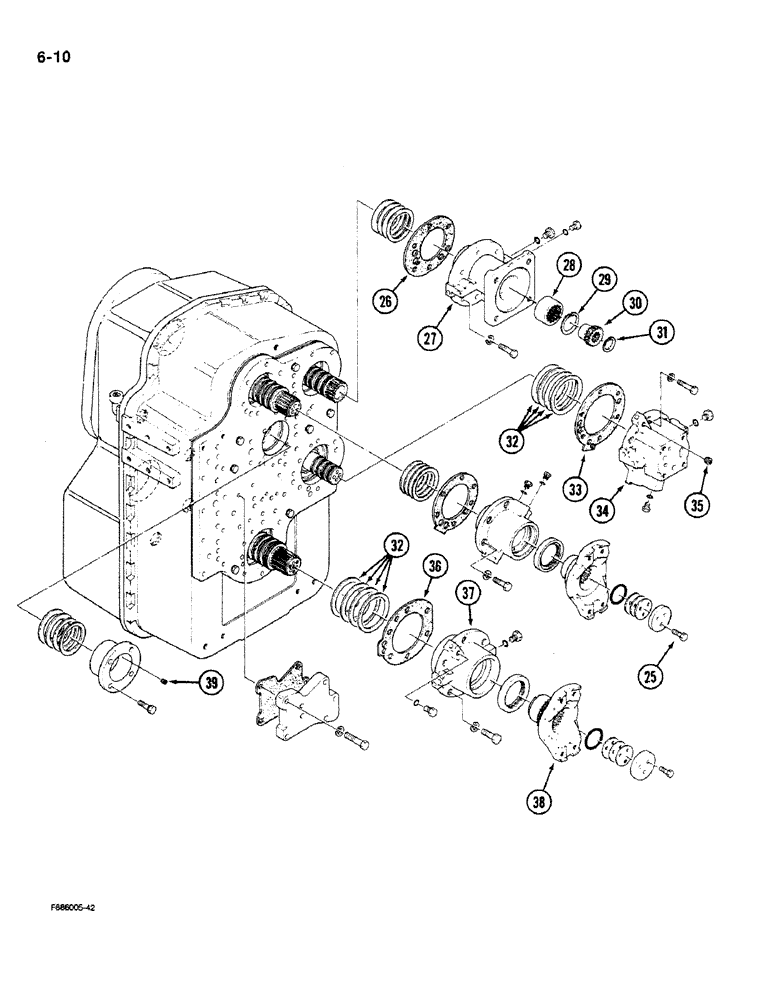

Запчасти Case IH 9270 (6-10) - TRANSMISSION (CONTD) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
90-7016T91
GEARBOX ASSY
TRANSMISSION ASSEMBLY
1шт.
Includes: Ref. 1 - 40 on Figure 6-04, 1 - 14 on Figure 6-06, 1 - 24 on Figure 6-08, 25 - 39 on Figure 6-10, 1 - 31 on Figure 6-12, 1 - 7 on Figure 6-14, 1 - 23 on Figure 6-16, 1 - 21 on Figure 6-18, 1 - 26 on Figure 6-20, 1 - 32 on Figure 6-22, 1 - 25 on Figure 6-24, 1 - 14 on Figure 6-26, 1 - 30 on Figure 6-28 and 1 - 29 on Figure 6-30.
1шт.
313686A1R
REMAN-TRANSMISSION
Remanufactured Transmission 4WD Powershift; On The Steiger 9280 BSN JCB0028400, Harness Part Number 60-6289T1 Must Also Be Ordered When Replacing Original Transmission 90-7016T91.
1шт.
313686A1C
CORE-TRANSMISSION
Return Part Number
1шт.
25
SM8134035
BOLT
BOLT - hex, 10 mm - 1.25 x 35 mm, Grade 10.9
3шт.
26
33-1468T1
GASKET
GASKET - pump support
1шт.
Part of P/N 33-1559T1 Transmission Gasket Kit
1шт.
27
33-1514T1
HOLDER
SUPPORT - oil pump
1шт.
28
33-1444T1
COUPLING
COUPLING - pump adapter
1шт.
29
33-1445T1
RING, SNAP
RING SNAP RING - snap
1шт.
30
33-1515T1
ADAPTER
ADAPTER - pump drive
1шт.
31
33-1517T1
RING, SNAP
RING SNAP RING - snap
1шт.
32
33-1460T1
SHIM
SHIM - bearing, 0.10 mm thick
1шт.
32
33-1461T1
SHIM
SHIM - bearing, 0.30 mm thick
1шт.
32
33-1462T1
SHIM
SHIM - bearing, 0.50 mm thick
1шт.
32
33-1463T1
SHIM
SHIM - bearing, 0.70 mm thick
1шт.
32
33-1475T1
SHIM
SHIM - bearing, 0.15 mm thick
1шт.
33
33-1433T1
GASKET
GASKET - clutch collector
1шт.
Part of P/N 33-1559T1 Transmission Gasket Kit
1шт.
34
33-1438T1
CLUTCH
COLLECTOR - clutch
1шт.
35
STX99700F
PLUG
PLUG
1шт.
36
33-1426T1
GASKET
GASKET - bearing retainer
1шт.
Part of P/N 33-1559T1 Transmission Gasket Kit
1шт.
37
33-1427T1
BEARING CARRIER
RETAINER - bearing
1шт.
38
33-1429T1
YOKE
UNIVERSAL JOINT YOKE YOKE - output, front
1шт.
P/N 331429T1 ok for 9270 and 9280 HM2 and HM24 manual transmission. For HM12 manual transmission use P/N 33-1613T1
1шт.
39
33-1439T1
PLUG
PLUG - orifice
2шт.
Выбрано товаров: 27
