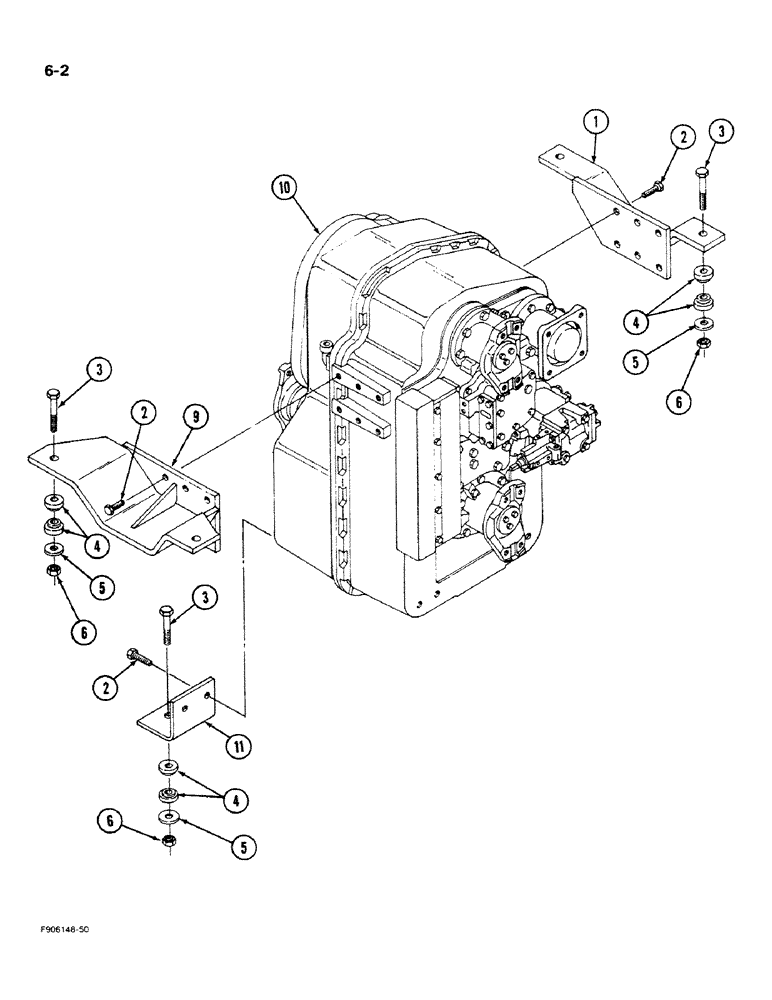

Запчасти Case IH 9270 (6-02) - TRANSMISSION MOUNTING (06) - POWER TRAIN

1

70-5981T2

SUPPORT

MOUNT - transmission, left

1шт.

2

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

BOLT, Hex, 5/8"-11 x 1 1/2", G5, Full Thd

16шт.

3

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

BOLT - hex, 3/4 NC x 4 inch

6шт.

4

47-4171

SHOCK ABSORBER

MOUNT - isolator, rubber

12шт.

5

19-5518

WASHER

WASHER - flat, 3/4 x 2-3/4 x 5/16 inch

6шт.

6

131-1252

LOCK NUT,7/8"-14, GC

NUT - hex lock, 3/4 inch NC

4шт.

9

70-5983T2

SUPPORT

MOUNT - transmission, right

1шт.

10

90-7016T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY, See Figures 6-04 through 6-30

1шт.

10

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift; On The Steiger 9280 BSN JCB0028400, Harness Part Number 60-6289T1 Must Also Be Ordered When Replacing Original Transmission 90-7016T91.

1шт.

10

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

11

70-5782T1

SUPPORT

MOUNT - transmission

2шт.
