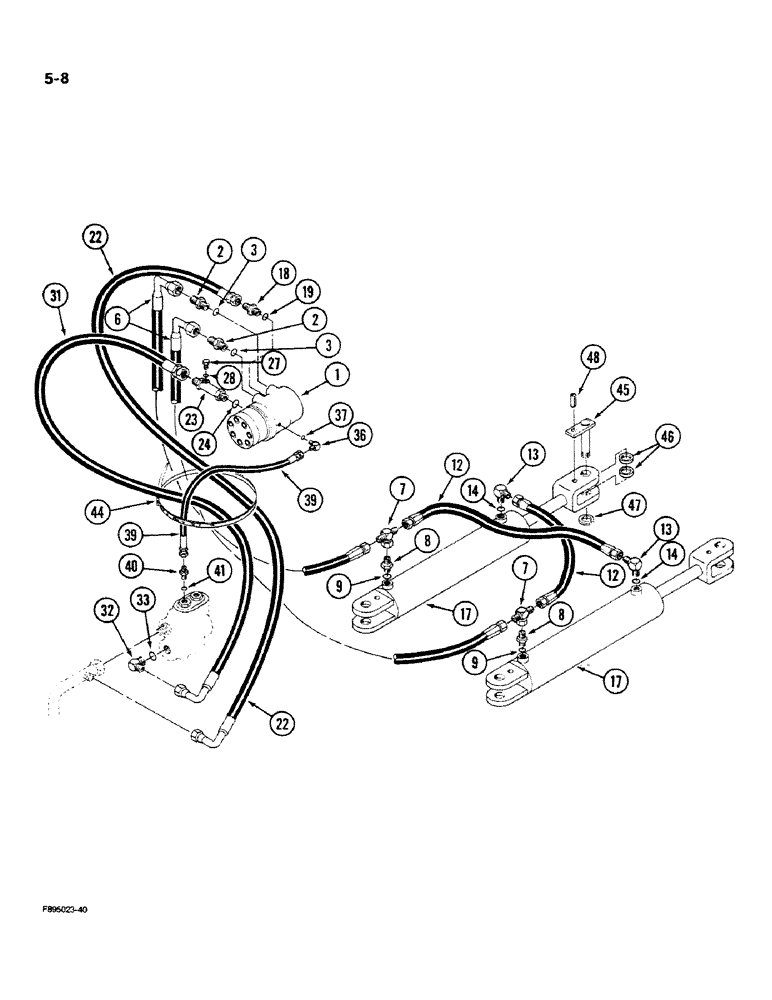

Запчасти Case IH 9270 (5-08) - STEERING SYSTEM HYDRAULICS (05) - STEERING

1

REF

INSTRUCTION

VALVE - control, steering, See Figure 5-10

1шт.

2

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring, Includes: Ref. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

2шт.

6

31-2763

HOSE

- control valve to steering cylinders, 44 inch

2шт.

Ref # 6, is a straight end hose on both ends. 31-1769 a hose with 90 deg., fitting on one end and a straigth fitting on the other end.

1шт.

7

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

- swivel, 7/8 NF flare x swivel branch

2шт.

8

31-462

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4 x 7/8 inch thread, Includes: Ref. 9

2шт.

9

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

2шт.

12

31-2762

HOSE

- cylinder to cylinder, 32 inch

2шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 14

2шт.

14

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

2шт.

17

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, See Figure 5-12

2шт.

18

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

22

31-2820

HOSE

- control valve to filter tube, 30 inch

1шт.

23

50-3188T1

FITTING

TEE - adjustable, 1-1/16-12 x 9/16-18 inch thread, Includes: Ref. 24

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

27

1-3213

PLUG

- hex, 9/16 inch thread, Includes: Ref. 28

1шт.

28

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

31-1041

HOSE,19.05mm ID x 838mm L

- steering control valve to priority valve, 33 inch

1шт.

32

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 33

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

36

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree adjustable, 7/16-20 thread, Includes: Ref. 37

1шт.

37

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

39

31-2814

HOSE

- load sense, control valve to priority valve, 28 inch

1шт.

40

18-1539

HYD CONNECTOR,7/16"-20, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - straight, 7/16 inch thread, Includes: Ref. 41

1шт.

41

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

44

50-2037T1

STRAP

- nylon

1шт.

45

50-1086T1

PIN

- retainer, steering cylinder

4шт.

46

2-3223T1

SPACER

- cylinder mounting

8шт.

47

19-5619

RING, SNAP

RING - snap, cylinder pin

4шт.

48

19-5785

LOCK PIN,1/2" x 7/8", Slotted

Pin, 1/2" x 7/8", Slotted

4шт.
