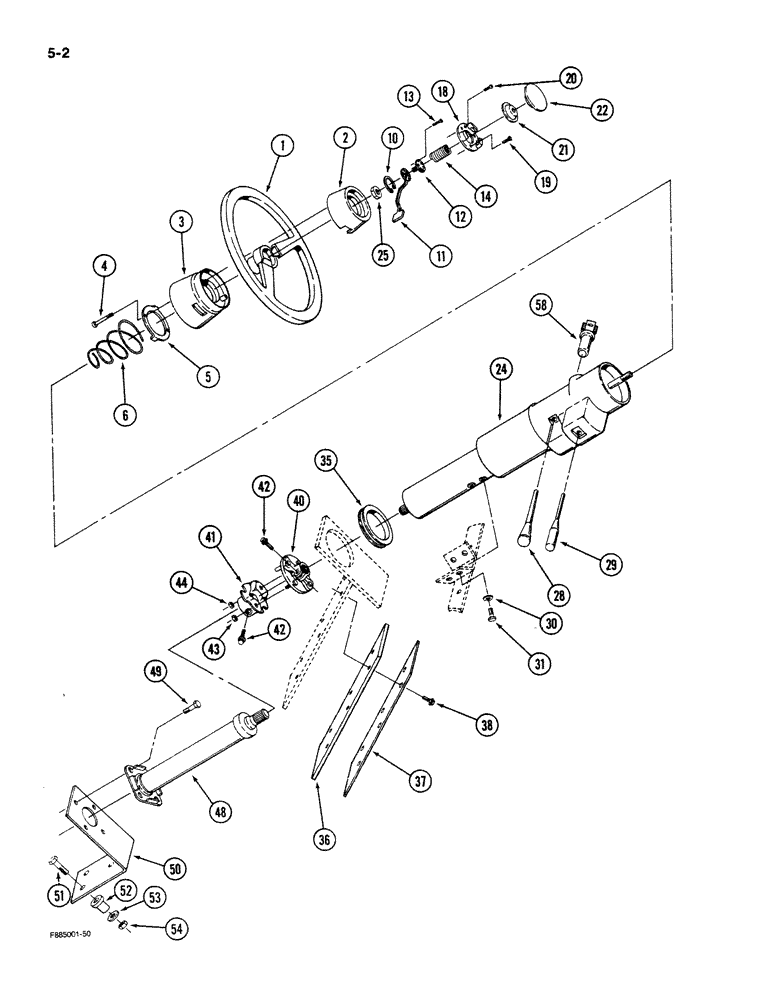

Запчасти Case IH 9270 (5-02) - STEERING WHEEL AND COLUMN (05) - STEERING

2-3755T92

STEERING WHEEL

WHEEL ASSEMBLY - steering, Includes: Ref. 1 - 6

1шт.

1

60-1827T2

WHEEL (STEERING)

WHEEL - steering (Order 2-3755T92)

1шт.

2

60-1828T1

CAP

COVER - hub, upper

1шт.

3

60-1829T1

COVER

- hub, lower

1шт.

4

19-5791

SELF-TAP SCREW,Cross Pan Hd, #6 x 1 1/4"

SCREW - tapping, pan head, No. 6 NS x 1-1/4 inch

2шт.

5

60-1830T1

RETAINER

- spring

1шт.

6

60-1831T1

SPRING

- compression telescoping

1шт.

10

18-1570

RING, SNAP

RETAINER - nut, locking

1шт.

11

60-1951T1

CONTROL LEVER

LEVER - release, telescoping

1шт.

12

18-1565

LOCK SCREW,5/16" - 18 x 0.95"

SCREW - release, telescoping

1шт.

13

60-6469T1

SCREW

- machine, flat head, No. 10 NF x 1/4 inch

2шт.

14

60-1820T1

SPRING

- horn button

1шт.

18

60-1819T1

PLATE

- base

1шт.

19

260-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 5/8 inch

3шт.

20

260-14436

SELF-TAP SCREW,Cross Pan Hd, #8 x 2 1/4"

SCREW - tapping, pan head, No. 8 NS x 2-1/4 inch

1шт.

21

60-1821T1

CUPEL

CONTACT - horn

1шт.

22

60-1822T1

BUTTON

- horn

1шт.

24

REF

INSTRUCTION

COLUMN ASSEMBLY - steering, See Figure 5-04, Includes: Ref. 25

1шт.

25

425-159

JAM NUT,Jam, 9/16"-18, G5

- hex, jam, 9/16 inch NF

1шт.

28

18-1567T1

CONTROL LEVER

LEVER - tilt actuating

1шт.

29

1-4188T1

CONTROL LEVER

LEVER - blinker, wiper, washer and hi-low beam

1шт.

30

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

4шт.

31

40-1231

BOLT,Hex, M8 x 1.25 x 16mm, Gr 8.8

BOLT - hex, 8 mm - 1.25 x 18 mm

4шт.

35

32-327

GROMMET

- column

1шт.

36

60-4751T1

SEAL

- steering column access

1шт.

37

60-4459T1

COVER

PLATE - cover, access

1шт.

38

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - tapping, flanged head, 1/4 NC x 3/4 inch

6шт.

60-4390T91

COUPLING

COUPLER ASSEMBLY - steering (Order Components), Includes: Ref. 40 - 44

1шт.

40

60-4436T1

FLANGE

- coupling, column

1шт.

41

60-4437T1

FLANGE

- coupling, steering shaft

1шт.

42

7807271

SCREW,3/8" - 24 x 1.22"

- 12 point, locking

2шт.

43

451399

NUT,5/16"-18, G5, Hvy

- hex, 5/16 inch NF

1шт.

44

9420821

NUT

- hex, 3/8 inch NF

1шт.

48

60-4230T1

STEERING COLUMN

SHAFT ASSEMBLY - steering

1шт.

49

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

50

60-4231T1

SUPPORT

BRACKET - mounting, steering shaft

1шт.

51

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

52

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

CUSHION - rubber

3шт.

53

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

3шт.

54

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

3шт.

58

22-752T1

IGNITION SWITCH

LOCK ASSEMBLY - ignition

1шт.

Keys for ignition lockset are Briggs and Stratton made to American Motors key code. Any tractor ignition key will open any tractor door but ignition keys are not interchangeable. Key codes are recorded and placed in overhead console compartment in cab.

1шт.
