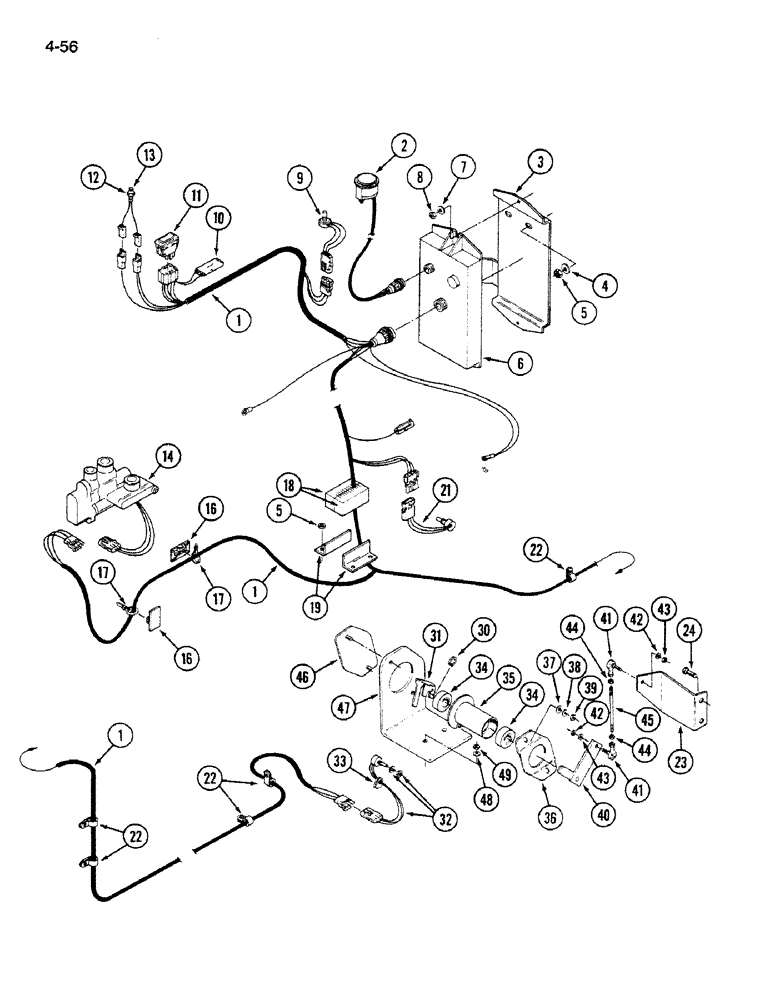

Запчасти Case IH 9270 (4-56) - THREE POINT HITCH HARNESSES (04) - ELECTRICAL SYSTEMS

1

60-6123T1

HARNESS

HARNESS - electronic depth control

1шт.

2

1983331C1

GAUGE

GAUGE - display, seven segment

1шт.

3

60-6120T1

LARGE PLATE

PLATE, LARGE PLATE - mounting, controller

1шт.

4

495-11034

WASHER,5/16", SAE

WASHER, 5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

5

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

7шт.

6

60-6136T1

CONTROL

CONTROLLER - three point hitch, electronic

1шт.

60-6136T1C

CORE-MODULE

CORE-MODUL Return Number, CONTROLLER, for N.A. Only

1шт.

7

495-11028

WASHER,1/4", SAE

WASHER, (flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

8

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

2шт.

9

A186061

POTENTIOMETER,10,000 Ohm, 8V

Electrical

1шт.

10

22-738

DIODE

DIODE - electrical

1шт.

11

1964753C1

SWITCH

SWITCH - rocker

1шт.

12

60-6111T1

INDICATOR

LIGHT ASSEMBLY - indicator

1шт.

13

23731R1

BULB,C2F, #1893, 14V

BULB - lamp, No.1893

1шт.

14

REF

INSTRUCTION

VALVE - three point hitch, See Figure 8-34

1шт.

16

22-823

MOUNT

MOUNT - adhesive back, strap

2шт.

17

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP STRAP - tie, 7 inch

1шт.

18

60-6066T1

FOAM

FOAM - sealing

2шт.

19

60-6065T1

ANGLE BAR

ANGLE - retaining, foam

2шт.

21

60-6117T1

POTENTIOMETER

Electrical

1шт.

22

299416C1

CLAMP

CLAMP - retaining, harness

5шт.

23

60-6192T1

SUPPORT

BRACKET - actuating, three point hitch

1шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex, 3/8 NC x 1 inch

2шт.

60-6196T91

HOUSING ASSY.

Potentiometer, Includes Ref. 30 - 47

1шт.

30

19-5860

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

31

60-6186T1

SUPPORT

Mount, Potentiometer

1шт.

32

60-6117T1

POTENTIOMETER

Raise and Lower

1шт.

33

31-2475

GROMMET

GROMMET - wire protection

1шт.

34

60-6177T1

BALL BEARING,0.7874" ID x 1.8504" OD x 0.5512"

BEARING - ball

2шт.

35

60-6167T2

BEARING HOUSING,1.654" ID x 3.25" OD x 2.928"

Housing, Potentiometer

1шт.

36

60-6169T2

RETAINER

Housing

1шт.

37

495-11028

WASHER,1/4", SAE

WASHER, (flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

38

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

39

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

2шт.

40

60-6179T1

LEVER

LEVER - actuating

1шт.

41

A75447

BALL JOINT

JOINT - ball, linkage

2шт.

42

495-31022

WASHER,#10

WASHER, #10

2шт.

43

9411893

LOCK NUT,#10-32, GB

NUT - hex lock, No. 10 inch NF

2шт.

44

225-14210

NUT,#10-32

NUT, #10-32

2шт.

45

60-6175T1

TRUSS ROD

ROD - actuating

1шт.

46

60-6185T1

LARGE PLATE

PLATE, LARGE PLATE - mounting

1шт.

47

60-6191T1

LARGE PLATE

PLATE, LARGE Mount, Potentiometer Assembly

1шт.

48

495-11028

WASHER,1/4", SAE

WASHER, (flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

49

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

2шт.
