Запчасти Case IH 9270 (4-12) - SYSTEMS CIRCUIT BREAKERS AND SOLENOIDS (04) - ELECTRICAL SYSTEMS

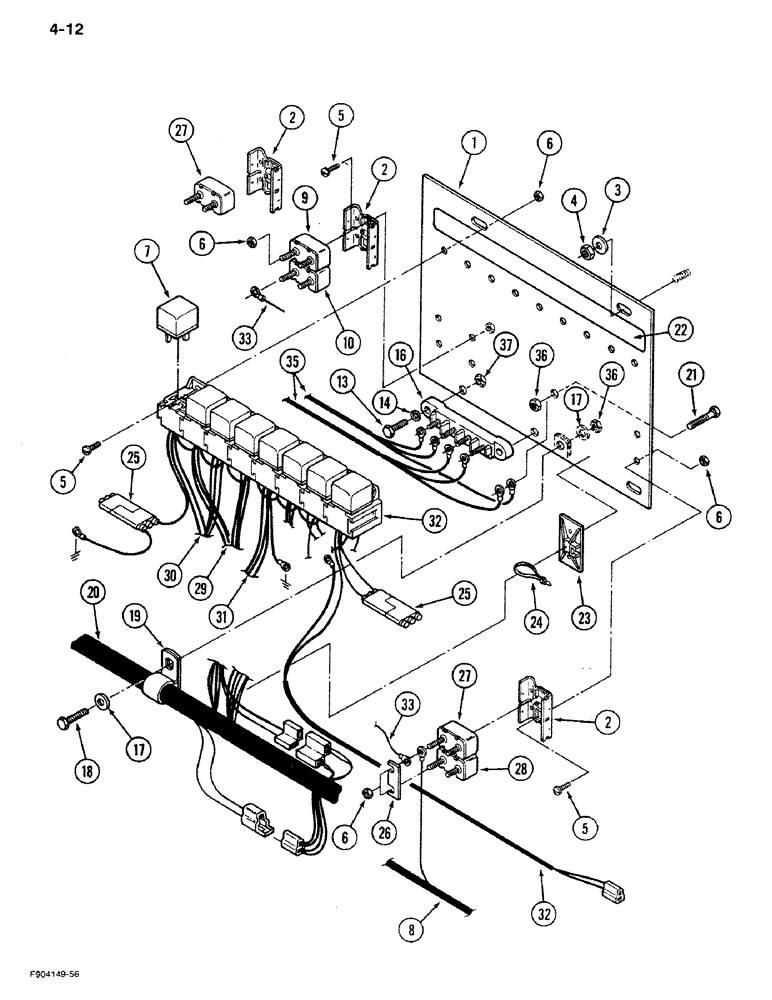

Схема запчастей Case IH 9270 - (4-12) - SYSTEMS CIRCUIT BREAKERS AND SOLENOIDS (04) - ELECTRICAL SYSTEMS
4
25
10
27
6
26
2
31
21
5
33
27
35
14
25
37
2
3
22
28
24
29
13
8
17
18
19
5
33
32
36
36
6
9
2
7
16
20
30
6
17
6
32
23
1
5

Артикул

Название

Примечание

Количество

1

60-5052T2

LARGE PLATE

PLATE - relay mounting

1шт.

2

20-1171T1

SUPPORT

BRACKET - mounting, circuit breaker

3шт.

3

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

3шт.

4

19-508

LOCK NUT

- hex lock, 5/16 inch NC

3шт.

5

459-5108

SCREW,Slotted Pan Hd, #10-32 x 1/2", G5

- pan head machine, No. NF x 1/2 inch

1шт.

6

19-481

SERRATED NUT

- keps, No. 10 NF

1шт.

7

1-7877

RELAY

- electrical, non-sealed

1шт.

7

20-2133T1

RELAY

- electrical, sealed

1шт.

8

REF

INSTRUCTION

HARNESS - power, overhead, See Figure 4-02

1шт.

9

22-809

BREAKER

CIRCUIT BREAKER - 5 ampere

1шт.

10

245765C1

CIRCUIT-BREAKER,30A

CIRCUIT BREAKER - 30 ampere

1шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

20-1514T1

JUNCTION

BLOCK - electrical

1шт.

17

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

18

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

19

31-1349

MOUNTING CLIP

CLAMP - harness, retaining

1шт.

20

REF

INSTRUCTION

HARNESS - main, cab, See Figure 4-02

1шт.

21

19-5773

SCREW,Hex, 1/4" - 20 x 1 1/4", W/ LW

- keps machine, 1/4 NC x 1-1/4 inch

1шт.

22

60-5053T2

DECAL

- relay

1шт.

23

22-823

MOUNT

MOUNT - strap, adhesive backed

1шт.

24

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

25

22-738

DIODE

- electrical

1шт.

26

22-677

BAR

CONNECTOR - circuit breaker

1шт.

27

22-670

BREAKER

CIRCUIT BREAKER - 10 ampere

2шт.

28

22-671

BREAKER

CIRCUIT BREAKER - 15 ampere

1шт.

29

60-6339T1

HARNESS

- relay, rear differential

1шт.

30

60-6340T1

HARNESS

- relay, front differential

1шт.

31

20-2336T1

HARNESS

- relay, 3-point

1шт.

32

60-6162T1

HARNESS

- air seat

1шт.

33

60-6303T1

ELECTRICAL WIRE

WIRE ASSEMBLY - circuit breaker

1шт.

35

20-2484T1

HARNESS

ASSEMBLY - differential, front and rear

2шт.

36

280129

NUT,1/4"-20

NUT - hex, 1/4 inch NC

3шт.

37

19-76

NUT,1/4"-20, G5

- hex, 1/4 inch NC

1шт.

Выбрано товаров: 34
