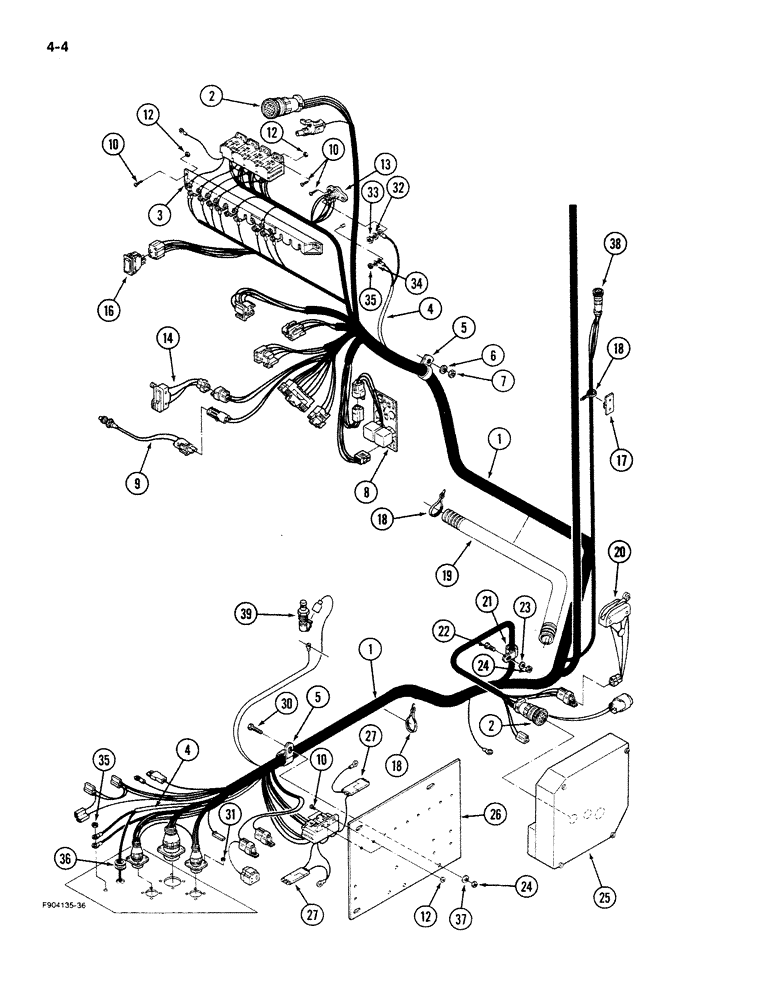

Запчасти Case IH 9270 (4-04) - LOWER ROPS HARNESS (04) - ELECTRICAL SYSTEMS

1

60-6452T1

HARNESS

ASSEMBLY - main ROPS, Includes: Ref. 2

1шт.

2

1301191C1

CONNECTION

RING - lock, connector

2шт.

3

20-2485T91

BREAKER

BRACKET - mounting, circuit breaker, See Figure 4-10

1шт.

4

60-6301T1

HARNESS

ASSEMBLY - relay power

1шт.

5

31-1349

MOUNTING CLIP

CLAMP - retaining, harness

2шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/32 inch

1шт.

7

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

1шт.

8

REF

INSTRUCTION

FLASHER ASSEMBLY - time base, See Figure 4-58

1шт.

9

60-6027T1

SENSOR

ASSEMBLY - proximity, See Figure 6-38

1шт.

10

459-5108

SCREW,Slotted Pan Hd, #10-32 x 1/2", G5

- pan head machine, No. 10 NF x 1/2 inch

8шт.

12

19-481

SERRATED NUT

- keps, No. 10 NF

8шт.

13

20-1451T1

BLOCK

- junction

1шт.

14

20-2340T91

IGNITION SWITCH

SWITCH ASSEMBLY - micro, See Figure 6-38 (Order 20-2333T1

1шт.

switch and 60-2666T1 wire)

1шт.

16

1964752C1

SWITCH

- light

1шт.

17

22-823

MOUNT

MOUNT - strap, adhesive backed

1шт.

18

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

19

50-2962T1

CONDUIT

PROTECTOR - flexguard (Order S119717 and, Serial Range: cut-length)

1шт.

20

60-6059T91

IGNITION SWITCH

SWITCH - model lever, See Figure 6-35

1шт.

21

299416C1

CLAMP

- retaining, harness

1шт.

22

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

23

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

24

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

2шт.

25

REF

INSTRUCTION

CONTROLLER ASSEMBLY - transmission, See Figure 5-33

1шт.

26

REF

INSTRUCTION

PLATE - mounting, relay, See Figure 4-12

1шт.

27

22-738

DIODE

- electrical

2шт.

30

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

31

19-5564

LOCK NUT,#6-32, GB

NUT - hex lock, No. 6 NC

12шт.

32

19-5577

LOCK WASHER

- lock, 3/8 inch

1шт.

33

115772

NUT

- hex brass, 3/8 inch NC

1шт.

34

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

35

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

36

22-766

GROMMET

- protective

1шт.

37

495-31031

WASHER,0.31" ID x 0.88" OD x 0.07" Thk

- flat, 5/16 x 7/8 x 1/16 inch

1шт.

38

60-6127T1

CONNECTION

LOCK RING - connector

1шт.

39

245175C1

SWITCH

- park brake, See Figure 7-04

1шт.
