Запчасти Case IH 9270 (9-84) - AIR CONDITIONING, COMPRESSOR MOUNTING AND DRIVE (09) - CHASSIS/ATTACHMENTS

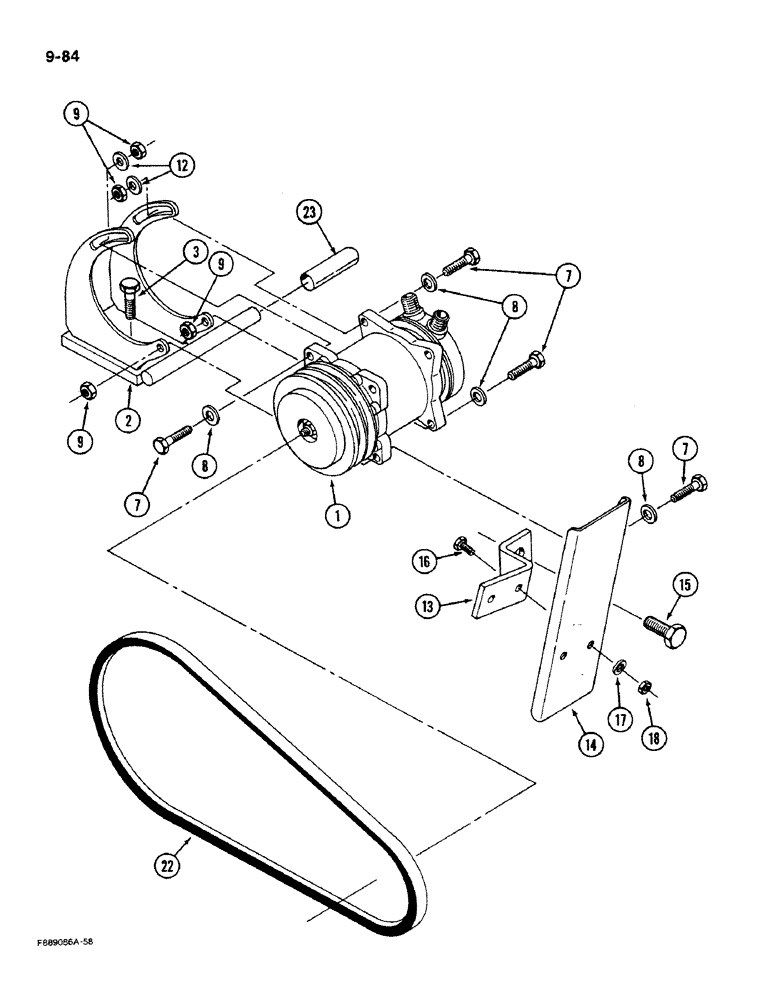

Схема запчастей Case IH 9270 - (9-84) - AIR CONDITIONING, COMPRESSOR MOUNTING AND DRIVE (09) - CHASSIS/ATTACHMENTS
17
3
15
16
8
9
7
8
2
14
9
23
7
18
7
8
22
9
1
13
12

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

COMPRESSOR - air conditioning, See Figure 9-86

1шт.

2

55-209T1

SUPPORT

MOUNT - compressor

1шт.

3

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

2шт.

7

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

9

825-1410

NUT,M10, Cl 8

4шт.

12

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

2шт.

13

90-6871T1

SUPPORT

BRACKET - mounting, shield

1шт.

14

90-6872T1

SHIELD

- compressor

1шт.

15

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

- hex, 5/8 NC x 1 inch

1шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

18

19-508

LOCK NUT

- hex lock, 5/16 inch NC

2шт.

22

90-7190T1

V-BELT,0.56" W x 40.25" L

Air conditioning compressor (Replaces 1-6864) 0.56" W x 40.25" L

1шт.

23

70-5846T1

GRIP

HANDLE - grip

1шт.
