Запчасти Case IH 9270 (9-80) - HEATER PLUMBING, CAB (09) - CHASSIS/ATTACHMENTS

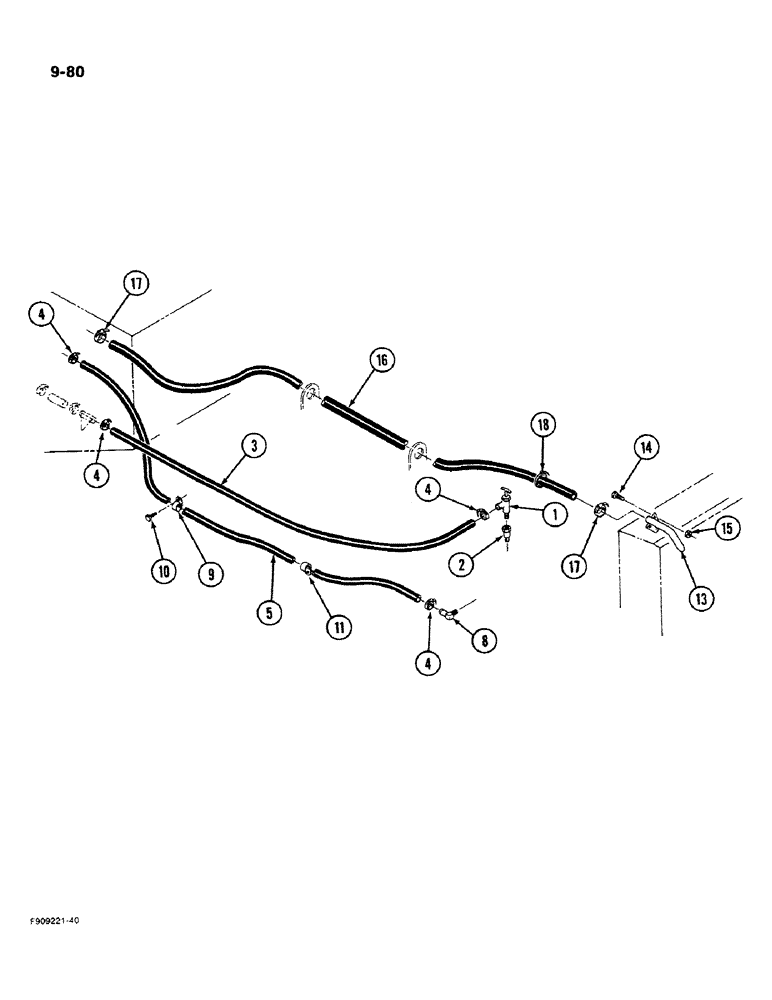

Схема запчастей Case IH 9270 - (9-80) - HEATER PLUMBING, CAB (09) - CHASSIS/ATTACHMENTS
4
18
1
4
14
13
17
10
9
16
15
11
3
2
4
4
5
8
17

Артикул

Название

Примечание

Количество

1

941980R1

SHUT-OFF VALVE

VALVE - water shut off

1шт.

2

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - heater core inlet, 5/8 x 31 inch (Order 97252C1 and, Serial Range: cut-length)

1шт.

4

25-285T1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP - hose, 1/2 to 7/8 inch

4шт.

5

NSS

NOT SOLD SEPARAT

HOSE - heater core return, 5/8 x 96 inch (Order 97252C1 and, Serial Range: cut-length)

1шт.

8

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

- 90 degree, 5/8 stem end x 1/2 inch PT

1шт.

9

28135R1

CLAMP

- closed, coated, 15/16 inch ID

1шт.

10

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

11

299416C1

CLAMP

- retaining

1шт.

13

90-6830T1

TUBE,3.69 mm L

- evacuation, precleaner

1шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

15

19-508

LOCK NUT

- lock, 5/16 inch NC

3шт.

16

31-2290

HOSE,1.00" ID x 84.00"

Evacuation, Order 31-1502T1, and Cut to Required Length 1.00" ID x 84.00"

1шт.

17

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - adj, 13/16 - 1-3/4 inch dia

2шт.

18

19-135

CABLE TIE

STRAP - nylon, guard retaining

1шт.

Выбрано товаров: 15
