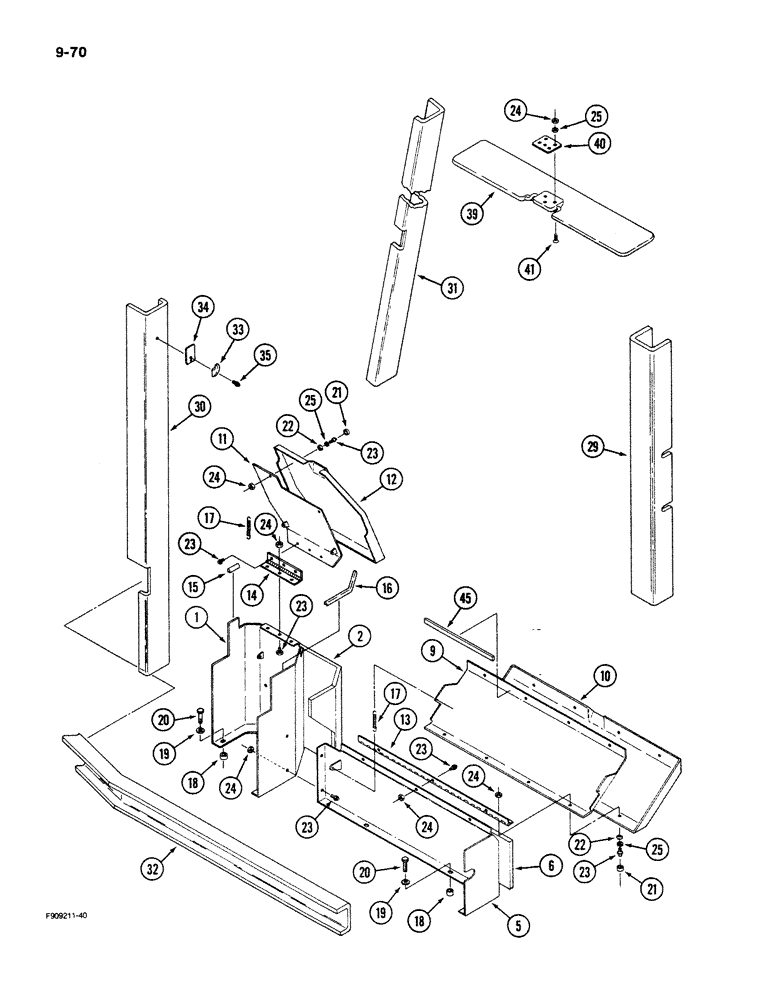

Запчасти Case IH 9270 (9-70) - STORAGE COMPARTMENTS, IF EQUIPPED (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
35-1803T91
CAB KIT - deluxe (Machinery item), Includes: Ref. 1 - 32
1шт.
1
60-6366T91
HOOD
CONTAINER ASSEMBLY - storage compartment, Includes: Ref. 2
1шт.
2
NSS
NOT SOLD SEPARAT
COVER - storage compartment
1шт.
5
60-6362T91
HOOD
CONTAINER ASSEMBLY - storage compartment, Includes: Ref. 6
1шт.
6
NSS
NOT SOLD SEPARAT
COVER - storage compartment
1шт.
9
60-6370T1
COVER
DOOR - storage compartment
1шт.
10
60-6369T1
HOOD
COVER - door
1шт.
11
60-6372T1
FLAP
DOOR - storage compartment
1шт.
12
60-6371T1
COVER
- door
1шт.
13
60-6360T1
HINGE
- door
1шт.
14
60-6361T1
HINGE
- door
1шт.
15
60-6358T1
GASKET
MOLDING - door seal (Order F64277 and, Serial Range: cut-length)
1шт.
16
60-6359T1
GASKET
MOLDING - door seal (Order F64277 and, Serial Range: cut-length)
1шт.
17
60-6374T2
SPRING
- door closure
4шт.
18
19-5724
SPACER
- mounting
6шт.
19
495-11028
WASHER,1/4", SAE
(flat, 9/32 x 5/8 x 1/16") 1/4", SAE
6шт.
20
413-424
BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5
6шт.
21
60-5920T1
CAP
- trim
10шт.
22
1-8674
CAP WASHER
- trim cap
10шт.
23
363-3108
SCREW,Hex Wash Hd, #10-24 x 1/2"
- hex flange machine, No. 10 NC x 1/2 inch
21шт.
24
19-5571
SERRATED NUT
- keps lock, No. 10 NC
21шт.
25
9421089
WASHER
- flat, 3/16 x 1/2 x 1/16 inch
21шт.
29
60-6354T1
COVER
- cab post, right rear
1шт.
30
60-6352T2
COVER
- cab post, left rear
1шт.
31
60-6353T1
COVER
- cab post, left front
1шт.
32
60-6355T1
COVER
- cab, rear
1шт.
33
3234176R1
COAT HOOK
HOOK - coat
1шт.
34
60-6520T1
PLATE
- coat hook
1шт.
35
281-14512
SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"
SCREW, SELF TAPPING, Hex Wash Hd, #10 x 3/4"
1шт.
39
1971228C1
VISOR, SUN
VISOR - sun
1шт.
40
60-6521T1
LARGE PLATE
PLATE - sun visor
1шт.
41
343-11016
SCREW,Cross Flat Hd, #10-24 x 1"
- flat head machine, No.10 x 1 inch
3шт.
45
60-6531T1
FOAM
SEAL - door, 11-1/2 inch (Order 60-4596T2 and, Serial Range: cut-length)
2шт.
Выбрано товаров: 33
