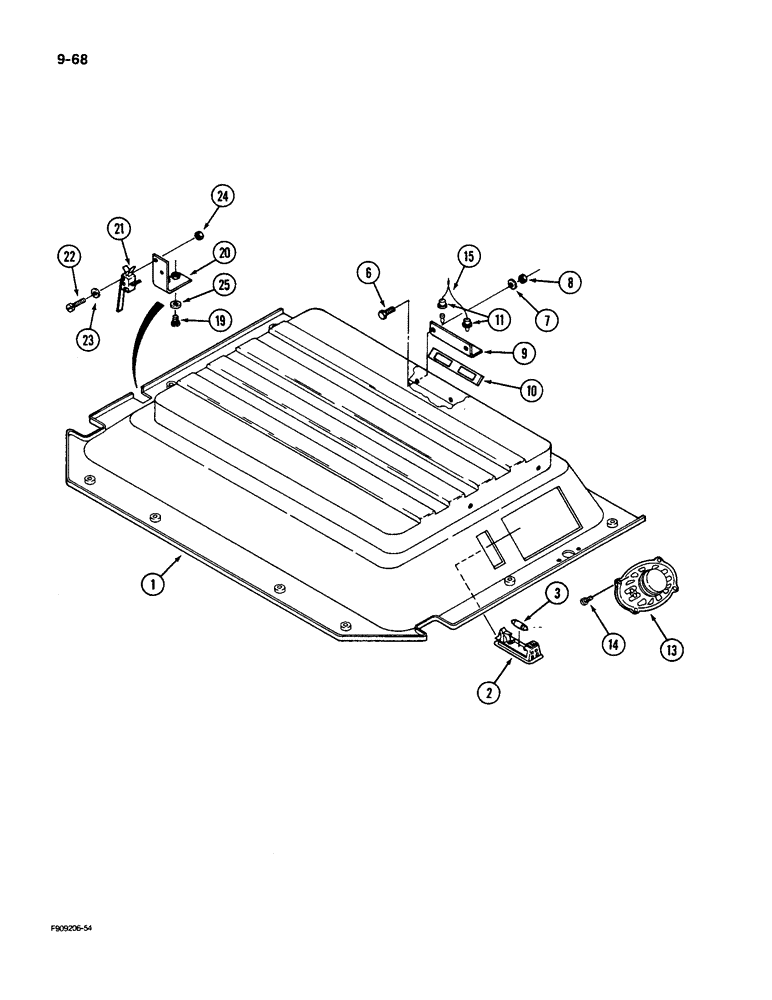

Запчасти Case IH 9270 (9-68) - HEADLINER, CAB (09) - CHASSIS/ATTACHMENTS

1

60-6254T3

PADDING

HEADLINER - cab

1шт.

2

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome

1шт.

3

3050958R1

BULB,K, 12V, 10W

- lamp, No. 1141 K, 12V, 10W

1шт.

6

163-45

SCREW,Hex, #10 - 24 x 1/2", Gr 5

- hex machine, No. 10 x 1/2 inch

2шт.

7

9421089

WASHER

- flat, 3/16 x 1/2 x 1/16 inch

2шт.

8

225-14110

NUT,#10-24

2шт.

9

60-6299T1

ANGLE BAR

PLATE - mounting, light

1шт.

10

60-4029T1

LARGE PLATE

DIFFUSER PLATE - light

1шт.

11

B50213

BULB

- lamp, No. 53

2шт.

13

60-5748T1

SPEAKER

- radio

2шт.

14

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- pan head Phillips machine, No. 10 NC x 5/8 inch

8шт.

15

REF

INSTRUCTION

HARNESS - overhead , See Figure 4-06

1шт.

19

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

20

60-6518T1

SUPPORT

BRACKET - mounting, switch

1шт.

21

60-6515T1

SWITCH

- dome light

1шт.

22

19-1035

SCREW,Rnd Hd, #4 - 40 x 1"

- round head machine, No. 4 NC x 1 inch

2шт.

23

19-6100

WASHER

- flat, No.4

2шт.

24

225-14104

NUT,#4-40

- hex, No.4 NC

2шт.

25

9421089

WASHER

- flat, 3/16 x 1/2 x 1/16 inch

2шт.
