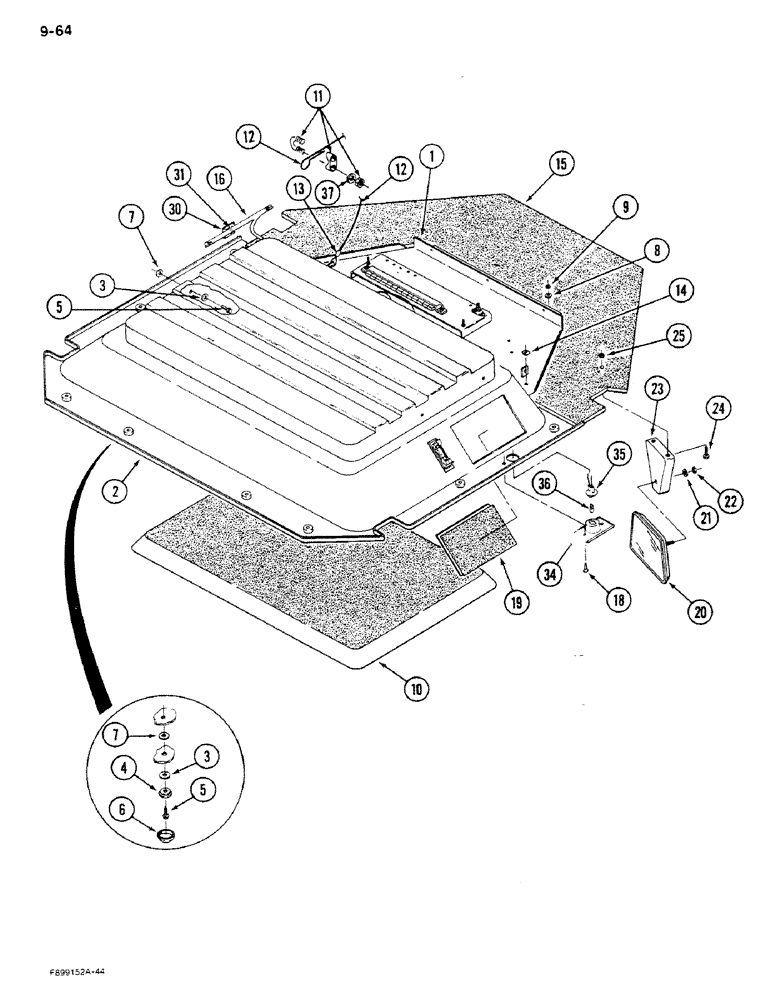

Запчасти Case IH 9270 (9-64) - OVERHEAD CONSOLE, CAB (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

DOOR - overhead, See Figure 9-66

1шт.

2

REF

INSTRUCTION

HEADLINER - cab, See Figure 9-68

1шт.

3

9421089

WASHER

- flat, 3/16 x 1/2 x 1/16 inch

9шт.

4

1-8674

CAP WASHER

- trim cap

7шт.

5

276-24512

SELF-TAP SCREW,Hex Hd, #10 x 3/4"

SCREW - hex tap, No. 10 NC x 3/4 inch

7шт.

6

60-5920T1

CAP

- trim

7шт.

7

19-5668

WASHER

- flat, 1/4 x 3/4 x 3/16 inch

7шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

10

60-6351T1

FOAM

PAD - insulation

1шт.

11

70-5275T1

MOUNTING CLIP

CLAMP ASSEMBLY - wire rope

2шт.

12

60-4137T1

ROPE

WIRE ROPE - plastic coated (Order 60-5883T1 and, Serial Range: cut-length)

2шт.

13

70-5269T1

FERRULE

- wire rope

2шт.

14

19-5524

NUT

- clip, J-type 1/4-20

2шт.

15

60-5924T1

NOISE PROTECTION

PAD - insulation

1шт.

16

REF

INSTRUCTION

HARNESS - wiring, overhead, See Figure 4-7

1шт.

18

24379R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - round head tap, No. 8 NC x 1/2 inch

2шт.

19

60-5922T1

FOAM

PAD - speaker cover

2шт.

20

A177462

MIRROR

ASSEMBLY - rear view, Includes: Ref. 21 & 22

1шт.

21

19-467

LOCK WASHER,Ext Tooth, 1/4"

WASHER - lock, 1/4 inch

1шт.

22

19-5565

LOCK NUT,1/4"-28, GB

NUT, LOCK, 1/4"-28, GB

1шт.

23

64-86T3

SUPPORT

BRACKET - rear view mirror

1шт.

24

363-31012

SCREW,Hex Wash Hd, #10-24 x 3/4"

- flange head machine, No. 10 NC x 3/4 inch

2шт.

25

19-5563

LOCK NUT

- hex lock, No. 10 NC

2шт.

30

22-823

MOUNT

MOUNT - strap, adhesive backed

1шт.

31

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

34

83882C91

LAMP

ASSEMBLY - console, Includes: Ref. 35 & 36

1шт.

35

107329C1

WIRE HARNESS

SOCKET - lamp

1шт.

36

D71346

TAIL LAMP,12V

BULB - light, No.168

1шт.

37

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.
