Запчасти Case IH 9270 (9-62) - CONTROL CONSOLE, ROPS (09) - CHASSIS/ATTACHMENTS

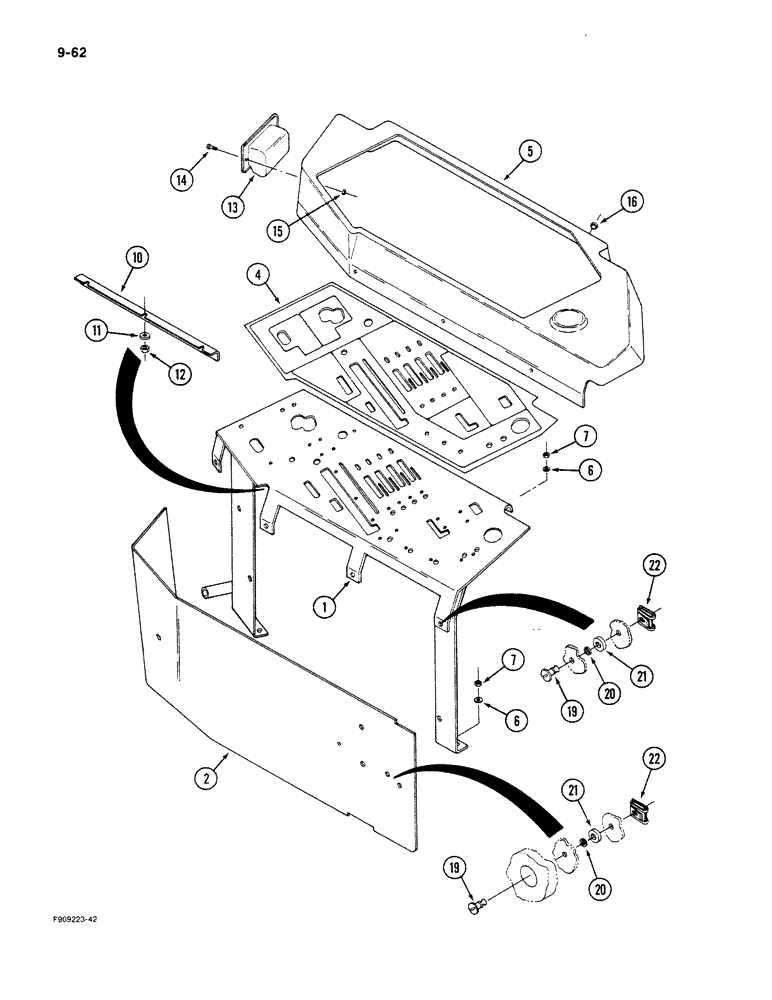

Схема запчастей Case IH 9270 - (9-62) - CONTROL CONSOLE, ROPS (09) - CHASSIS/ATTACHMENTS
16
21
12
19
7
7
2
5
19
15
22
20
6
20
1
6
22
21
10
14
11
4
13

Артикул

Название

Примечание

Количество

1

60-6412T3

BRACKET

PANEL - control, console

1шт.

2

60-6386T1

PANEL

- console, wrap around

1шт.

4

60-6416T1

DECAL

- control console

1шт.

5

60-6436T1

COVER

- console

1шт.

6

495-11034

WASHER,5/16", SAE

5/16" SAE, flat

5шт.

7

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

5шт.

10

60-4276T1

SUPPORT

BRACKET - stiffener, console

1шт.

11

495-31022

WASHER,#10

3шт.

12

19-5563

LOCK NUT

- hex lock, No. 10 NC

3шт.

13

2-6138T91

ASH TRAY

ASHTRAY - smoking

1шт.

14

473-10810

SCREW,Slotted Flat Hd, #8-32 x 5/8"

- flat head machine, No. 8 NC x 5/8 inch

2шт.

15

19-5621

LOCK NUT,#8-32, GB

NUT - hex lock, No. 8 NC

2шт.

16

22-619

GROMMET

- button, plug

1шт.

19

19-6136

STUD

- lock, quarter turn

11шт.

20

L103349

WASHER

RETAINER - split ring

11шт.

21

19-5668

WASHER

- flat, 1/4 x 3/4 x 3/16 inch

7шт.

22

A36042

CLIP

RECEPTACLE - quarter turn

11шт.

Выбрано товаров: 17
