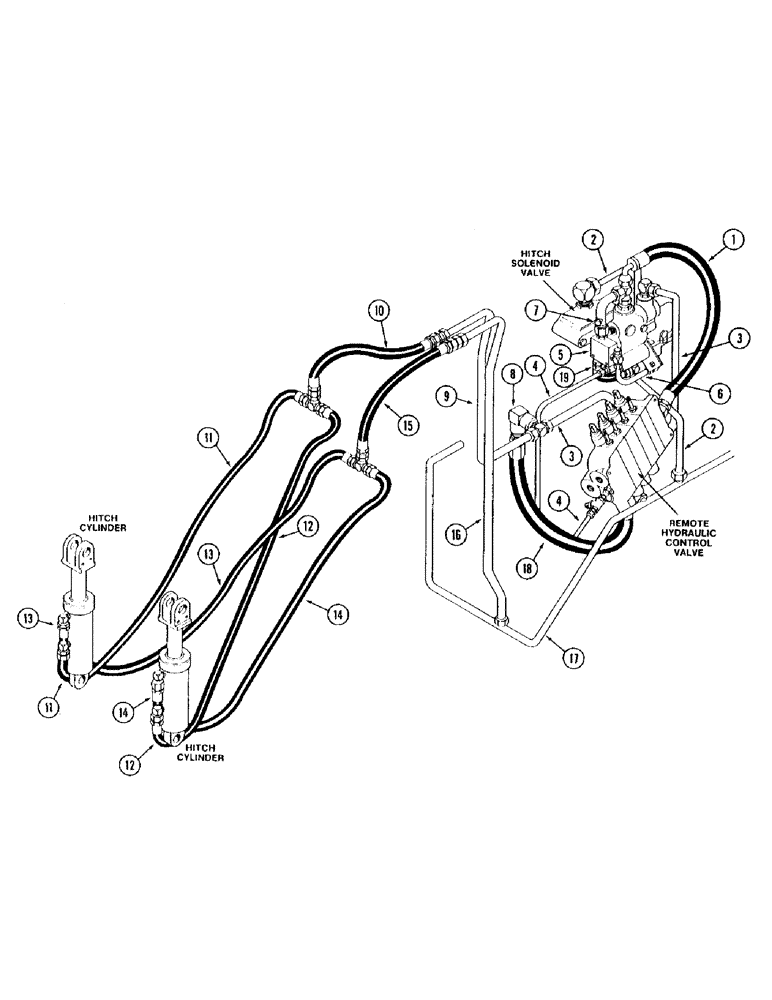

Запчасти Case IH 9270 (1-18) - PICTORIAL INDEX, HITCH HYDRAULICS, ELECTRONIC CONTROLLED (00) - PICTORIAL INDEX

1

Hitch Solenoid Valve Supply Hose, Page 8-25

1шт.

2

Hitch Solenoid Valve Drain Tube, Page 8-25

1шт.

3

Hitch Cylinder Supply Tube, Page 8-25

1шт.

4

Hydraulic Pressure Sensing Tube, Page 8-25

1шт.

5

Pressure reducing Valve, Page 8-25, 8-37

1шт.

6

Pressure Reducing Valve Tube, Page 8-25

1шт.

7

Pressure Reducing Valve Tube, Page 8-25

1шт.

8

Relief Valve, Page 8-25, 8-37

1шт.

9

Hitch Cylinder Supply Tube, Page 8-27

1шт.

10

Hithc Cylinder Supply Hose, Page 8-27

1шт.

11

Left Hitch Cylinder Supply Hose, Page 8-27

1шт.

12

Right Hitch Cylinder Supply Hose, Page 8-27

1шт.

13

Left Hitch Cylinder Drain Hose, Page 8-27

1шт.

14

Right Hitch Cylinder Drain Hose, Page 8-27

1шт.

15

Hitch Cylinder Drain Hose, Page 8-27

1шт.

16

Hitch Cylinder Drain Tube, Page 8-27

1шт.

17

Hydraulic Drain Tube To Hydraulic Tank, Page 8-3

1шт.

18

Pressure Relief Drain Hose, Page 8-25

1шт.

19

Pressure Reducing Valve Drain Hose, Page 8-25

1шт.
