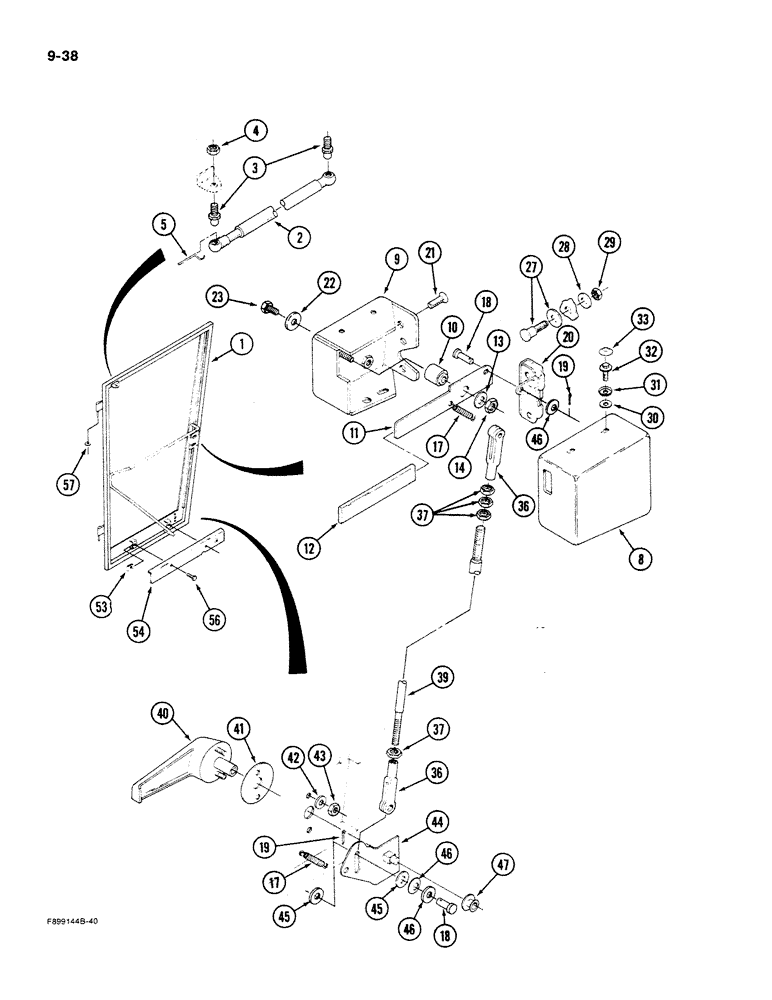

Запчасти Case IH 9270 (9-38) - CAB DOOR AND LATCH (09) - CHASSIS/ATTACHMENTS

1

60-6284T1

CABIN DOOR

DOOR - cab

1шт.

2

1280263C1

CYLINDER ASSY.

CYLINDER - door

1шт.

3

3234063R1

BALL STUD,M10 x 1.5

STUD - ball

2шт.

4

825-1410

NUT,M10, Cl 8

1шт.

5

3233348R1

CLIP

- retaining

2шт.

8

60-6269T1

COVER

- box, latch

1шт.

9

60-6265T1

HOOD

MOUNT - latch

1шт.

10

60-6260T1

BUSHING

- pivot, handle

1шт.

11

60-6263T1

LEVER

- latch actuating

1шт.

12

60-6267T1

GRIP

MOLDING - latch

1шт.

13

60-6261T1

WASHER

- flat, plastic

1шт.

14

19-5777

LOCK NUT

- hex lock, 5/16 inch NC

4шт.

17

A163012

SPRING

- tension, return

2шт.

18

141-52

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 x 43/64 inch, hardened

2шт.

19

32-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

20

60-5001T1

LATCH

- door

1шт.

21

443-13120

SCREW,Cross Flat Hd, 5/16"-18 x 1 1/4"

- machine, flat head, 5/16 NC x 1-1/4 inch

3шт.

22

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

27

60-4193T1

LATCH

STRIKER - door latch

1шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

29

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch NC

1шт.

30

9421089

WASHER

- flat, 3/16 x 1/2 x 1/16 inch

3шт.

31

1-8674

CAP WASHER

- trim cap

3шт.

32

276-24512

SELF-TAP SCREW,Hex Hd, #10 x 3/4"

SCREW - self-tapping, hex head, No. 10 NC x 3/4 inch

3шт.

33

60-5920T1

CAP

- trim

3шт.

36

116383

CLEVIS

YOKE - adjustable clevis

2шт.

37

19-936

JAM NUT

- hex jam, 1/4 inch NF

4шт.

39

60-6262T1

THREADED ROD

ROD - actuating, latch

1шт.

40

60-6324T1

HANDLE

- door

1шт.

41

60-5062T2

GASKET

- door handle

1шт.

42

495-31022

WASHER,#10

2шт.

43

19-351

NUT,#10 - 24, GA

NUT - hex lock, No. 10 NC

2шт.

44

60-6323T1

PIVOT

- latch actuating

1шт.

45

19-6201

WASHER

- flat, plastic, 1/4 x 5/8 x 1/8 inch

3шт.

46

19-5924

SPRING WASHER

- spring, 1/4 inch

2шт.

47

19-6255

RING RACE

BEARING - latch pivot

1шт.

53

131-617

NUT,Ret, J, 1/4"-20

- speed, J type, 1/4 inch NC

2шт.

54

60-6282T1

COVER

- door, lower

1шт.

56

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

2шт.

57

60-4585T1

SPACER

SHIM - door adjustment

1шт.
