Запчасти Case IH 9270 (9-28) - ROPS (09) - CHASSIS/ATTACHMENTS

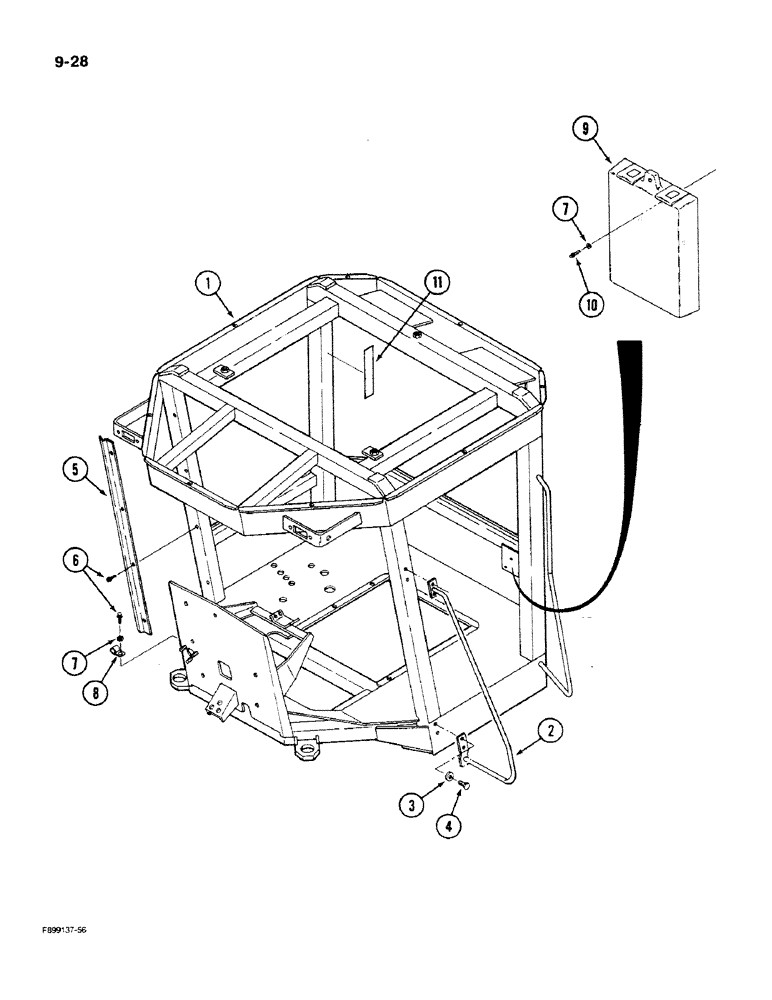

Схема запчастей Case IH 9270 - (9-28) - ROPS (09) - CHASSIS/ATTACHMENTS
7
9
11
10
1
7
2
5
4
6
8
3

Артикул

Название

Примечание

Количество

1

60-6556T2

FRAME

- protective ROPS

1шт.

2

60-5778T1

HANDLE

- side grab

1шт.

3

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

4

26-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 8

- hex, 3/8 NC x 5/8 inch Grade 8

4шт.

5

60-5855T1

GUARD

- wire protection

1шт.

6

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tapping flanged, No. 10 NC x 1/2 inch

6шт.

7

495-31022

WASHER,#10

6шт.

8

31-1349

MOUNTING CLIP

CLAMP - harness

2шт.

9

R46464

CASE

BOX - operators manual

1шт.

10

363-31012

SCREW,Hex Wash Hd, #10-24 x 3/4"

- machine, flanged, No. 10 NC x 3/4 inch

3шт.

11

2-7393T1

DECAL

- safety

1шт.

Выбрано товаров: 11
