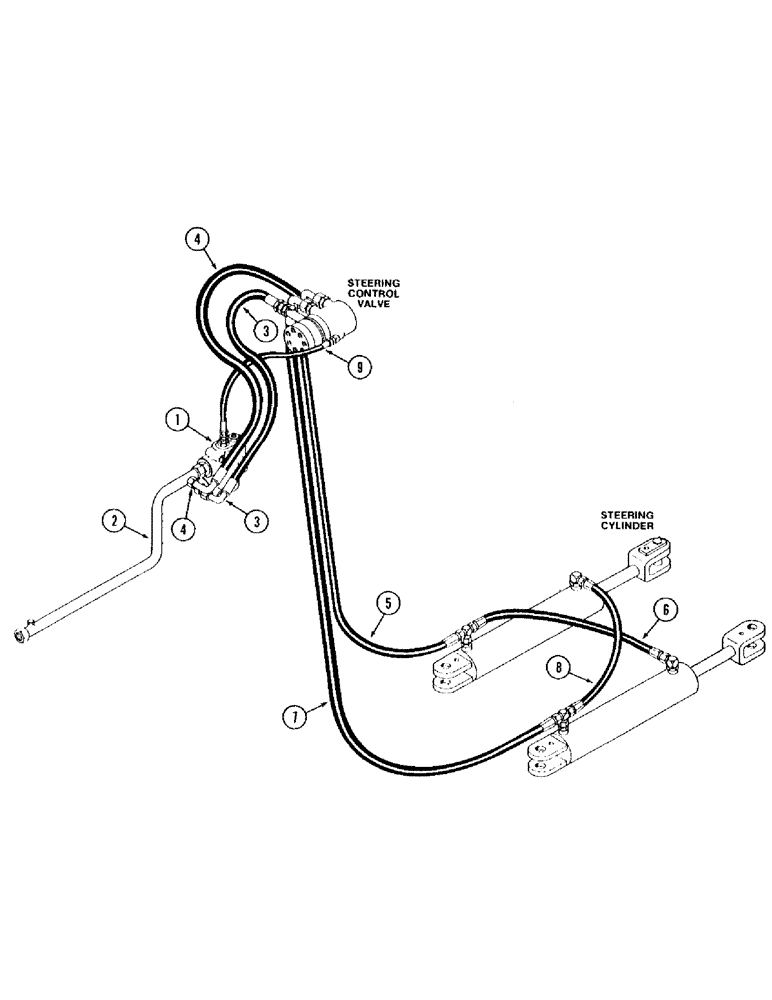

Запчасти Case IH 9270 (1-16) - PICTORIAL INDEX, STEERING HYDRAULICS (00) - PICTORIAL INDEX

1

Priority Valve, Page 5-9, 8-5, 8-21

1шт.

2

Priority Valve To Filter Tube, Page 8-5

1шт.

3

Steering Control Valve Supply Hose, Page 8-5

1шт.

4

Steering Control Valve Drain Hose, Page 5-9

1шт.

5

Left Turn Steering Hose, Page 5-9

1шт.

6

Left Turn Steering Hose, Page 5-9

1шт.

7

Right Turn Steering Hose, Page 5-9

1шт.

8

Right Turn Steerign Hose, Page 5-9

1шт.

9

Steering Pressure Sensing Hose, Page 5-9

1шт.
