Запчасти Case IH 9270 (9-18) - GRILLE (09) - CHASSIS/ATTACHMENTS

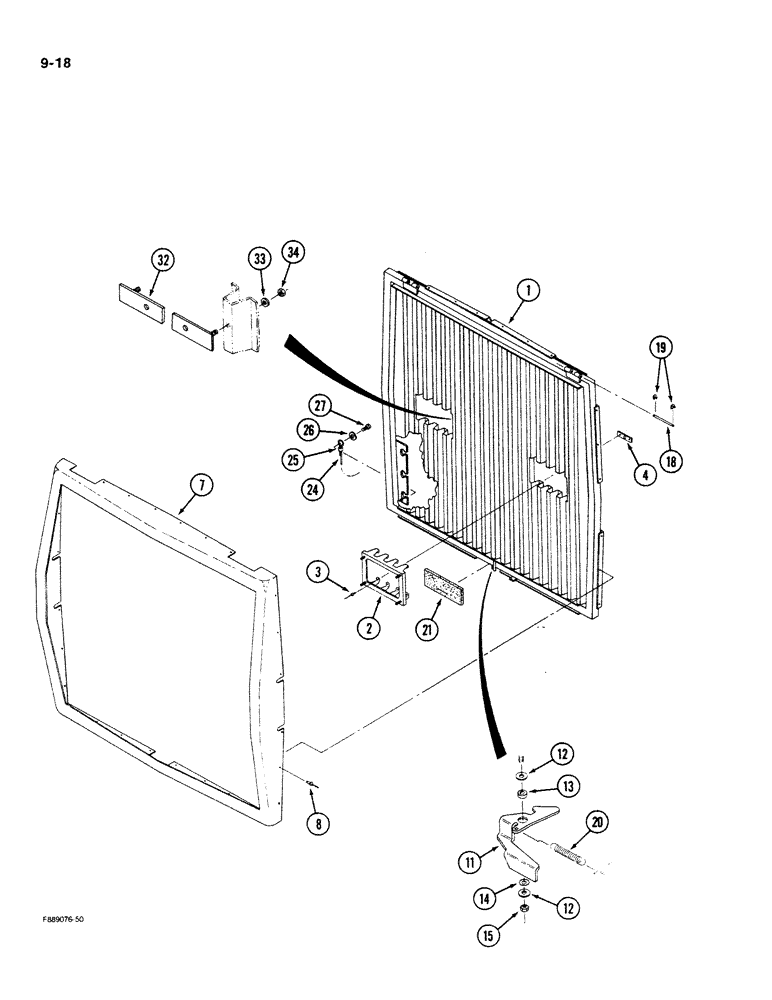

Схема запчастей Case IH 9270 - (9-18) - GRILLE (09) - CHASSIS/ATTACHMENTS
26
7
4
21
1
19
32
33
14
11
25
18
34
12
13
2
8
3
12
20
24
27
15

Артикул

Название

Примечание

Количество

1

70-5175T1

SIEVE

GRILLE - front screen

1шт.

#1 - hinges at the ends of #1 are part number 70-4177t1 per jerry larson. these hinges connect to hinges on p. 9-16 at the top of the hood. same part number.

1шт.

2

70-4484T1

SUPPORT

BRACKET - lamp mounting

2шт.

3

1-2503

RIVET,Pop, .146" x .425"

- pop 5/32 x 1/4 inch

18шт.

4

70-2507T2

LARGE PLATE

PLATE - clamp mounting

3шт.

7

70-5046T1

FRAME

GRILLE - shell

1шт.

8

19-127

RIVET

- pop, 3/16 x 1/4 inch

26шт.

11

70-5273T1

LATCH

- grille opening

1шт.

12

19-1059

WASHER

- flat, hardened, 3/8 inch

2шт.

13

70-5177T1

SPACER

- pivot, latch

1шт.

14

19-6266T1

WAVE WASHER

- wave, 3/8 inch

1шт.

15

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

1шт.

18

70-1996T2

PIN

- hinge, grille

2шт.

19

70-2600T1

RING, SNAP

RING - retaining

4шт.

20

11-8

SPRING

- latch return

1шт.

21

70-5258T1

SEAL

FOAM - seal, grille latch

1шт.

24

60-5882T1

ROPE

- wire, latch actuating (Order 60-5883T1 and, Serial Range: cut-length)

1шт.

25

70-5269T1

FERRULE

- wire rope

1шт.

26

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

27

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - tapping, flanged, 1/4 NC x 3/4 inch

1шт.

32

60-5969T1

LARGE PLATE

PLATE - mounting, medallion

1шт.

33

19-699

WASHER,3/16"

- flat, 1/4 inch

2шт.

34

19-5563

LOCK NUT

- hex lock, No. 10 NC

2шт.

33

495-31025

WASHER,3/16"

- flat, 1/4 x 9/16 x 1/16 inch

2шт.

Выбрано товаров: 24
