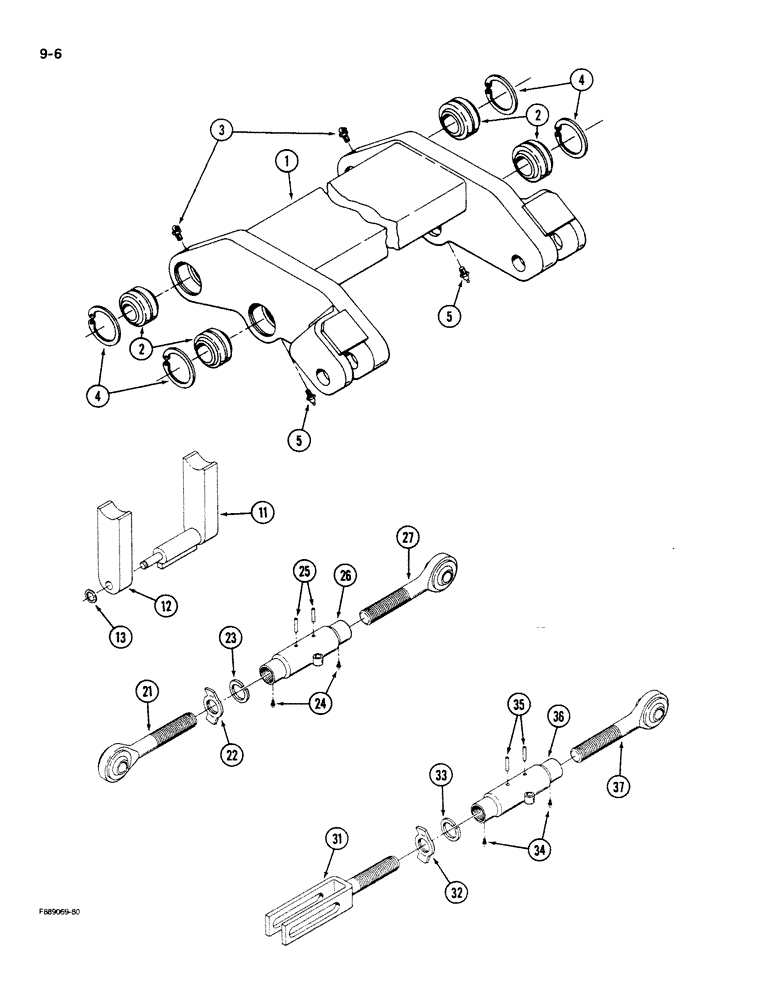

Запчасти Case IH 9270 (9-06) - HITCH COMPONENTS (09) - CHASSIS/ATTACHMENTS

2-3663T92

SHAFT

ROCKERSHAFT ASSEMBLY - hitch, Includes: Ref. 1 - 5

1шт.

1

2-3592T4

SHAFT

ROCKERSHAFT - hitch

1шт.

2

2-3644T1

RING RACE

BEARING - self aligning

4шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

4

19-5693

RING

- snap

4шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

2шт.

70-2724T91

BLOCK ASSY.

BLOCK ASSEMBLY - clevis locking, Includes: Ref. 11 - 13

1шт.

11

70-2732T1

CLEVIS

BLOCK - clevis locking

1шт.

12

70-2730T1

CLEVIS

SUPPORT - block, clevis locking

1шт.

13

19-6078

RING, SNAP

RING - snap

1шт.

2-3589T93

UPPER LINK

LINK ASSEMBLY - upper, Includes: Ref. 21 - 27

1шт.

21

2-3652T3

ROD, CONNECTING

ROD ASSEMBLY - ball, RH thread

1шт.

22

2-3651T1

LOCK NUT

NUT - wing, locking

1шт.

23

19-6098

LOCK WASHER,2"

WASHER - lock, 2 inch

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

25

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

26

70-1832T2

PIPE

TUBE - link, upper

1шт.

27

2-3649T3

ROD, CONNECTING

ROD ASSEMBLY - ball, LH thread

1шт.

2-3591T92

LOWER LINK

LINK ASSEMBLY - lift, Includes: Ref. 31 - 37

1шт.

31

2-3637T2

ROD, CONNECTING

ROD ASSEMBLY - lift

1шт.

32

2-3651T1

LOCK NUT

NUT - wing, locking

1шт.

33

19-6098

LOCK WASHER,2"

WASHER - lock, 2 inch

1шт.

34

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

35

19-175

LOCK PIN,1/4" x 2", Slotted

Pin, 1/4" x 2", Slotted

2шт.

36

2-3650T1

TUBE,1.5 - 3.125" OD, 13" Length

- link, lift

1шт.

37

2-3638T2

ROD, CONNECTING

ROD ASSEMBLY - ball

1шт.
