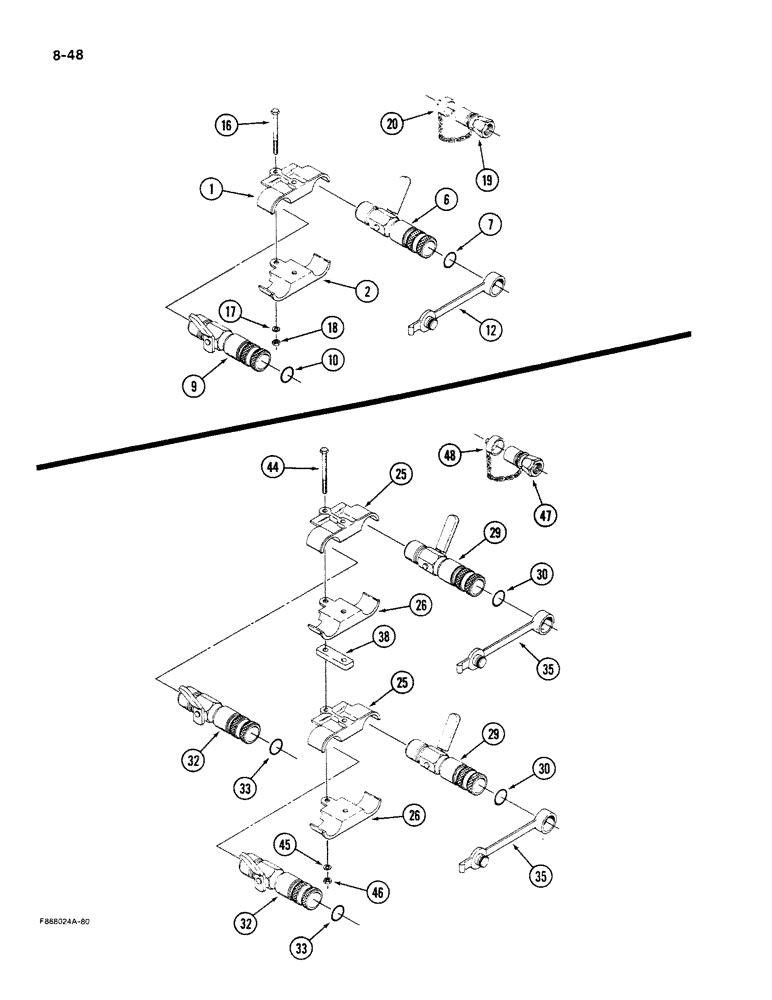

Запчасти Case IH 9270 (8-48) - QUICK DISCONNECT COUPLER ASSEMBLY, SINGLE REMOTE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
50-3291T91
COUPLING
COUPLER ASSEMBLY - quick, hydraulic, Includes: Ref. 1 - 18
1шт.
1
50-1455T1
CLAMP BRACKET
CLAMP - coupler, top
1шт.
2
50-1454T1
CLAMP BRACKET
CLAMP - coupler, bottom
1шт.
6
50-1459T91
PUSH-PULL COUPLING
COUPLER - quick, red handle, Includes: Ref. 7
1шт.
7
18-1107
O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro
O-RING - seal, coupler
1шт.
9
50-1460T91
PUSH-PULL COUPLING
COUPLER - quick, yellow handle, Includes: Ref. 10
1шт.
10
18-1107
O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro
O-RING - seal, coupler
1шт.
12
50-2267T1
PLUG
CAP - cartridge dust
2шт.
16
19-279
BOLT,Hex, 3/8" - 16 x 3", Gr 5
- hex, 3/8 NC x 3 inch
2шт.
17
492-11038
LOCK WASHER,3/8"
2шт.
18
425-106
NUT,3/8"-16, Cl 5
2шт.
19
1-7141
FITTING
CARTRIDGE - coupler, remote
2шт.
20
1-7142
CAP
- coupler dust, rubber
2шт.
50-3292T91
COUPLING
COUPLER ASSEMBLY - quick, hydraulic, diconnect, double remote, Includes: Ref. 25 - 46
1шт.
25
50-1455T1
CLAMP BRACKET
CLAMP - coupler, top, quick disconnect assembly, double remote
2шт.
26
50-1454T1
CLAMP BRACKET
CLAMP - coupler, bottom, quick disconnect assembly, double remote
2шт.
29
50-1459T91
PUSH-PULL COUPLING
COUPLER - quick, red handle, disconnect assembly, double remote, Includes: Ref. 30
2шт.
30
18-1107
O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro
O-RING - seal, coupler, quick disconnect assembly, double remote
2шт.
32
50-1460T91
PUSH-PULL COUPLING
COUPLER - quick, yellow handle, disconnect assembly, double remote, Includes: Ref. 33
2шт.
33
18-1107
O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro
O-RING - seal, coupler, quick disconnect assembly, double remote
2шт.
35
50-2267T1
PLUG
CAP - cartridge dust, quick disconnect coupler assembly, double remote
4шт.
38
50-1604T1
SPACER
- coupler, quick disconnect assembly, double remote
1шт.
44
113-2232
BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5
- hex, 3/8 NC x 5-1/2 inch, quick disconnect coupler assembly, double remote
2шт.
45
492-11038
LOCK WASHER,3/8"
quick disconnect coupler assembly, double remote 3/8"
2шт.
46
425-106
NUT,3/8"-16, Cl 5
Quick disconnect coupler assembly, Double remote 3/8"-16, G5
2шт.
47
1-7141
FITTING
CARTRIDGE - coupler, remote, quick disconnect assembly, double
4шт.
48
1-7142
CAP
- coupler dust, rubber, quick disconnect assembly, double remote
4шт.
Выбрано товаров: 27
