Запчасти Case IH 9270 (8-26) - THREE POINT HITCH HYDRAULICS, LIFT CYLINDERS AND LINES ELECTRONIC CONTROLLED (08) - HYDRAULICS

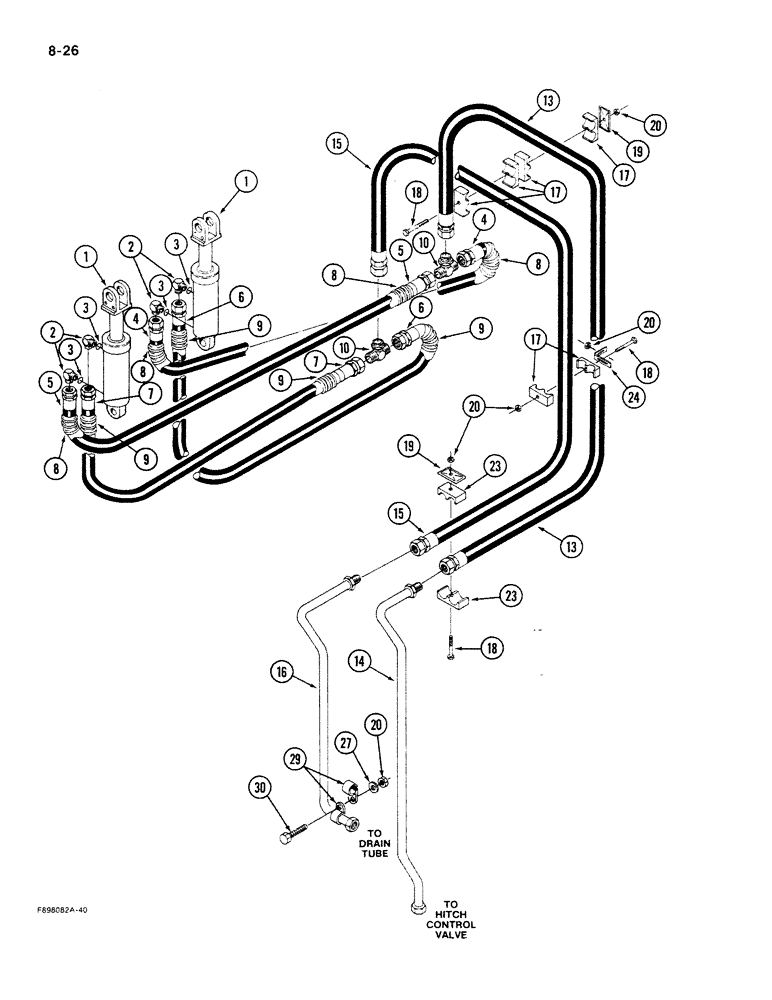

Схема запчастей Case IH 9270 - (8-26) - THREE POINT HITCH HYDRAULICS, LIFT CYLINDERS AND LINES ELECTRONIC CONTROLLED (08) - HYDRAULICS
18
17
19
8
23
20
2
9
29
7
1
4
3
20
9
8
2
9
6
9
20
17
13
5
30
3
17
7
8
18
8
3
15
4
1
18
15
10
27
23
14
19
6
10
3
16
5
20
13
24

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - three point hitch, See Figure 8-32

2шт.

2

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree, adjustable, 3/4 inch thread, Includes: Ref. 3

4шт.

3

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

4шт.

4

31-1795

HOSE

- tee to cylinder, lift, left, 30 inch

1шт.

5

31-1959

HOSE

- tee to cylinder, lift, right, 54-1/2 inch

1шт.

6

31-1958

HOSE

- tee to cylinder, drain, left, 62 inch

1шт.

7

31-1957

HOSE

- tee to cylinder, drain, right, 39 inch

1шт.

8

50-2962T1

CONDUIT

GUARD - hose protector, 23 inch

2шт.

9

50-2741T1

CONDUIT

GUARD - hose protector, 30 inch (Order protector S119717 and, Serial Range: cut-length)

2шт.

10

31-1800

TEE,7/8"-14, 37 Degree, Blkhd

- bulkhead, 7/8-14 inch thread

2шт.

13

31-2810

HOSE,0.63" ID x 117.00"

Hitch Control Valve Tube to Tee 0.63" ID x 117.00"

1шт.

14

50-3190T1

HYD TUBE

TUBE - hitch control valve to lift hose

1шт.

15

31-2811

HOSE,0.63" ID x 130.00"

Tube to Tee, Cylinder Drain 0.63" ID x 130.00"

1шт.

16

50-3191T1

HYD TUBE

TUBE - drain hose to drain tube

1шт.

17

50-2534T1

CLAMP

- split, halves

6шт.

18

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

3шт.

19

50-2533T1

PLATE

COVER - clamp

2шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

23

50-2551T1

CLAMP

- hose, split, halves

2шт.

24

50-3017T1

SUPPORT

BRACKET - mounting, clamp

2шт.

27

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

29

31-1776

MOUNTING CLIP

CLAMP - hose

2шт.

30

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.
