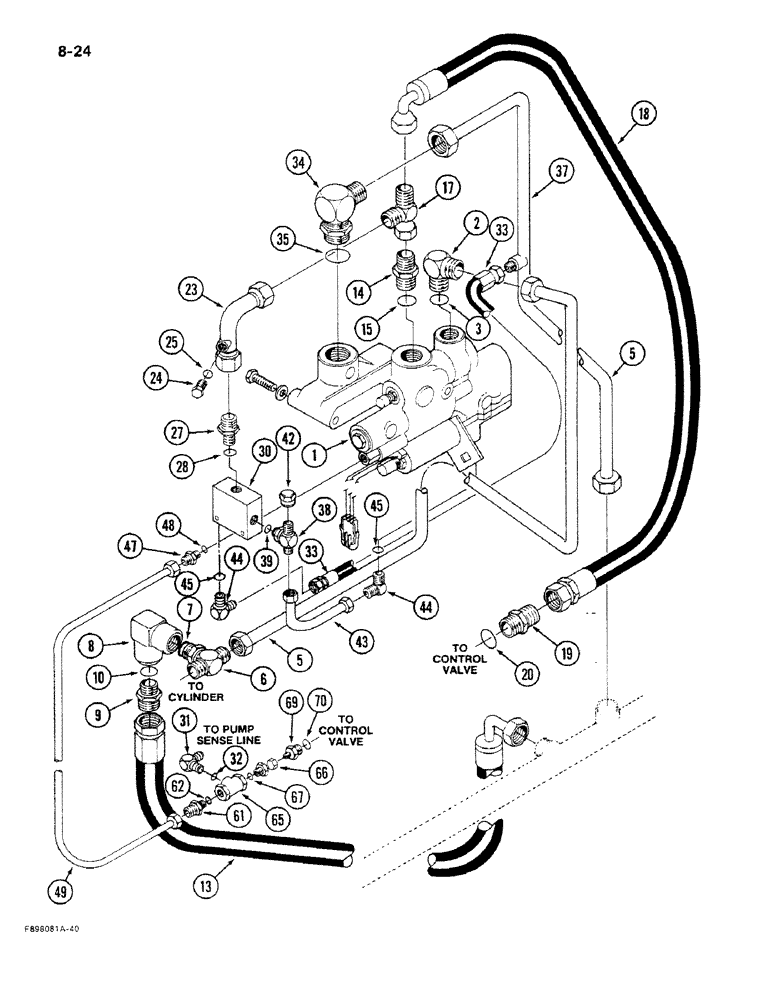

Запчасти Case IH 9270 (8-24) - THREE POINT HITCH HYDRAULICS, ELECTRONIC CONTROLLED (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, See Figure 8-35

1шт.

2

31-396

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

- 90 degree, adjustable, 7/8-14 x 1-1/16-12 inch, Includes: Ref. 3

1шт.

3

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

5

50-3194T1

HYD TUBE

TUBE - hitch control valve to cylinder lift line

1шт.

6

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch adj O-ring branch x flare x flare, Includes: Ref 7

1шт.

7

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

8

REF

INSTRUCTION

VALVE ASSEMBLY - relief, See Figure 8-36

1шт.

9

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring, Includes: Ref. 10

1шт.

10

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

13

31-2498

HOSE

- relief valve to drain tube

1шт.

14

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring, Includes: Ref. 15

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

17

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- 7/8-14 inch flare branch x flare x swivel

1шт.

18

31-2847

HOSE

- hitch control valve to control valve

1шт.

19

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 20

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

23

50-3186T1

HYD TUBE

TUBE - hitch control valve to pressure reducing valve

1шт.

24

1-3213

PLUG

- hex, 9/16-18, Includes: Ref. 25

1шт.

25

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

218-5360

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 7/8-14 flare x 9/16-18 inch O-ring boss, Includes: Ref. 28

1шт.

28

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30

REF

INSTRUCTION

VALVE ASSEMBLY - pressure reducing, See Figure 8-36

1шт.

31

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

- 90 degree, 9/16-18 flare x 7/16-20 inch adj. O-ring

1шт.

32

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

33

31-1668

HOSE

- pressure reducing valve to drain tube, 14 inch

1шт.

34

31-394

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

- 90 degree adjustable, 1-5/16-12 x 1-1/16 inch thread, Includes: Ref. 35

1шт.

35

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

1шт.

37

50-3195T1

HYD TUBE

TUBE - hitch control valve to drain tube

1шт.

38

18-585

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Br

- adjustable, 9/16-18 inch thread, Includes: Ref. 39

1шт.

39

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

42

218-754

CAP,37 Degree, 9/16"-18

- hex, 9/16 inch NF

1шт.

43

50-3111T1

HYD TUBE

TUBE - pressure reducing valve to hitch control valve

1шт.

44

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 45

2шт.

45

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

47

674681R1

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-20, O-Ring

ADAPTER - straight, 1/2 x 9/16 inch thread, Includes: Ref. 48

1шт.

48

31-1098

O-RING,5-1, 90 Duro, .414" ID x .072" Thk

1шт.

49

50-3204T1

HYD TUBE

TUBE - hitch control valve to shuttle valve

1шт.

61

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16 x 7/16 inch thread, Includes: Ref. 62

2шт.

62

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

2шт.

65

31-1778

VALVE

ASSEMBLY - shuttle

1шт.

66

218-5268

HYD CONNECTOR,7/16" - 20 ORB x 1/4" - 18 NPT

ADAPTER - adjustable, 1/4PT x 7/16 inch thread, Includes: Ref. 67

1шт.

67

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

69

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT

1шт.

70

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

71

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

72

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

35-1842T91

KIT - electronic controlled three point hitch, when tractor is equipped with or without a PTO system (machinery item)

1шт.
