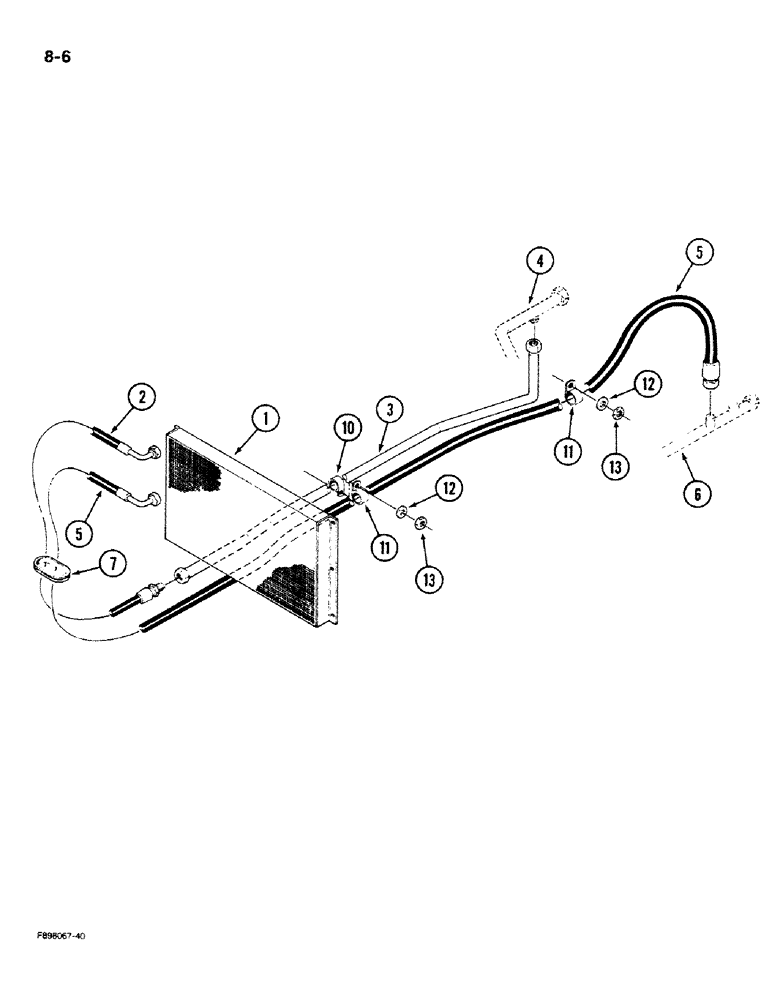

Запчасти Case IH 9270 (8-06) - HYDRAULIC SYSTEM, OIL COOLER LINES (08) - HYDRAULICS

1

90-6708T1

OIL COOLER

COOLER - oil, hydraulic, See Figure 8-22 for mounting

1шт.

2

31-2761

HOSE

- oil cooler to tube, 80 inch

1шт.

3

50-3254T1

HYD TUBE

TUBE - cooler supply

1шт.

4

REF

INSTRUCTION

TUBE - to oil filter, See Figure 8-3

1шт.

5

31-2865

HOSE

- cooler to return tube

1шт.

6

REF

INSTRUCTION

TUBE - hydraulic oil return, See Figure 8-3

1шт.

7

NSS

NOT SOLD SEPARAT

GROMMET - hose protection (Order 31-1785T1;, Serial Range: cut-length)

1шт.

7

31-1785T1

GROMMET

- bulk, 10 foot roll

1шт.

10

31-2488

CLAMP

- tube

1шт.

11

308576R1

CLAMP

- retaining

4шт.

12

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

13

425-106

NUT,3/8"-16, Cl 5

4шт.
