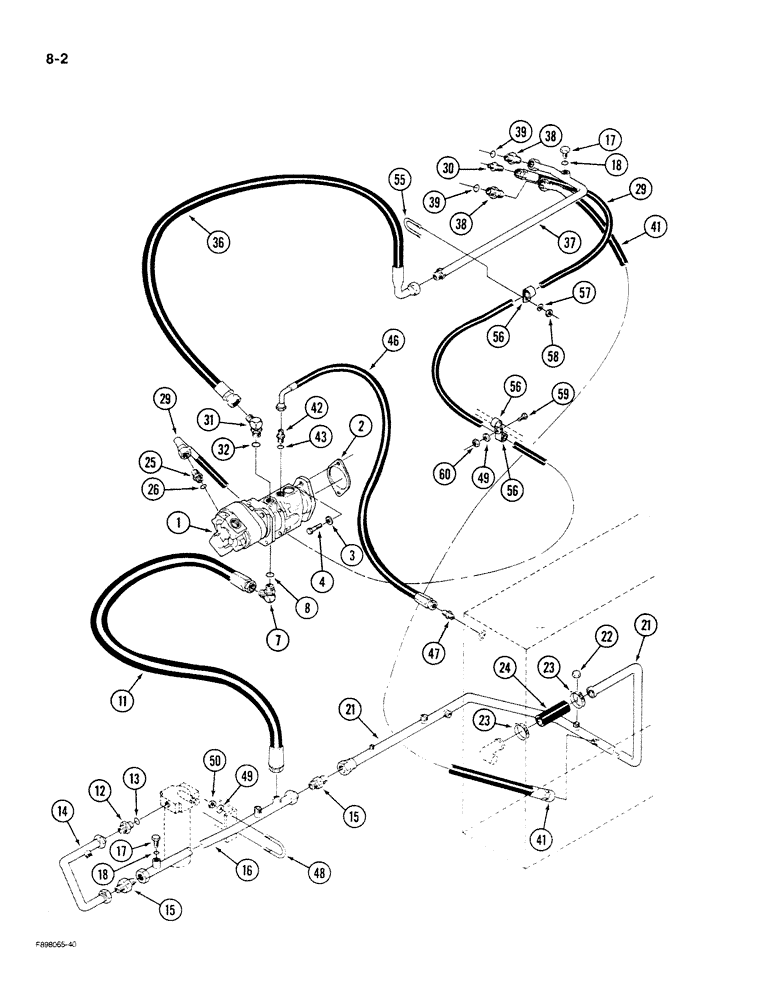

Запчасти Case IH 9270 (8-02) - HYDRAULIC SYSTEM, PUMP TO CONTROL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - piston, See Figure 8-10

1шт.

2

18-1176

GASKET

- pump

1шт.

3

96-11053

WASHER,17/32" x 1 1/16" x .095", HDN

- flat, hardened, 17/32 x 1-1/16 x 3/32 inch

2шт.

4

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex, 1/2-13 x 1-1/2 inch

2шт.

7

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

- 90 deg, 1-5/16-12 flare x 1-5/8-12 inch adj O-ring, Includes: Ref. 8

1шт.

8

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-1/2 x 1/8 inch

1шт.

11

31-2929

HOSE

- pump to return tube, 3/4 inch

1шт.

12

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 flare x 1-5/16-12 inch O-ring, Includes: Ref. 13

1шт.

13

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

1шт.

14

50-3255T1

HYD TUBE

TUBE - filter to check valve

1шт.

15

50-2565T1

VALVE

ASSEMBLY - check

2шт.

16

50-3257T1

HYD TUBE

TUBE - check valve to check valve

1шт.

17

1-3213

PLUG

- hex, 9/16-18 inch thread, Includes: Ref. 18

2шт.

18

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

21

50-3193T1

HYD TUBE

TUBE - check valve to hydraulic tank

1шт.

22

9403374

CAP,37 Degree, 1 1/16"-12

- tube, 1-1/16 inch thread

1шт.

23

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 to 2-5/8 inch

2шт.

24

1-4571

HOSE

- suction, 1-1/2 x 4 inch (Order 1-4482T1, Serial Range: cut-length)

1шт.

25

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16 x 7/16 inch thread

1шт.

26

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

29

31-2024

HOSE

- pump to control valve, 60 inch

1шт.

30

REF

INSTRUCTION

CONNECTOR - pilot port, See remote valve inlet, Figure 8-48

1шт.

31

9411109

ELBOW,45 Degree, 1 5/16"-12 x 1 5/16"-12, O-Ring

- adjustable, 45 degree, 1-5/16 inch, Includes: Ref. 32

1шт.

32

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

1шт.

36

31-2862

HOSE,25.4mm ID x 1168mm L

- supply, pump to tube (Replaces 31-2858)

1шт.

37

50-3192T1

HYD TUBE

TUBE - supply, hose to control valve

1шт.

38

31-464

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

ADAPTER - straight, 1-1/16-12 x 1-5/16-12 inch thread, Includes: Ref. 39

2шт.

39

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch

2шт.

41

31-2671

HOSE,25.4mm ID x 609.6mm L

- return, control valve to hydraulic tank, 24 inch

1шт.

42

218-5360

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 7/8-14 flare x 9/16-18 inch O-ring boss, Includes: Ref. 43

1шт.

43

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

46

31-2249

HOSE

- pump to hydraulic tank, 32 inch

1шт.

47

31-449

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

ADAPTER - 7/8-14 male x 1/2 inch PT male..

1шт.

48

19-153

U-BOLT

- 1-3/8 x 2-1/2 inch

1шт.

49

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

5шт.

50

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

4шт.

55

19-6258

U-BOLT

- 1/4 NC x 1 x 1-3/4 inch

1шт.

56

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

- retaining

3шт.

57

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.

58

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

2шт.

59

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

60

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

1шт.
