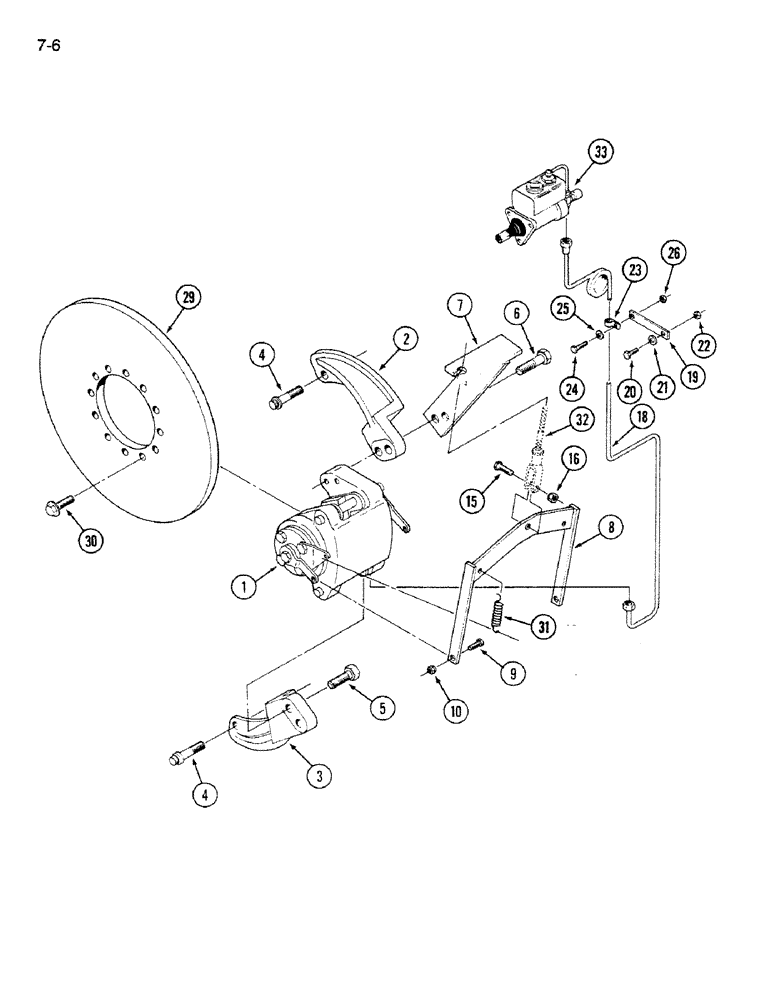

Запчасти Case IH 9270 (7-06) - BRAKE SYSTEM (07) - BRAKES

1

REF

INSTRUCTION

CALIPER ASSEMBLY - brake, with park brake, See Figure 7-08

1шт.

2

90-7096T1

SUPPORT

MOUNT - caliper, top

1шт.

3

90-7094T1

SUPPORT

MOUNT - caliper, bottom

1шт.

4

90-7297T1

BOLT,Hex, M14 x 1.5 x 60mm, Cl 10.9

- hex, 14 mm - 1.5 x 60 mm, Grade 10.9

6шт.

5

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

6

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

2шт.

7

90-6347T2

SUPPORT

MOUNT - cable, park brake actuating

1шт.

8

90-4030T1

SUPPORT

BRACKET - actuating, park brake

1шт.

9

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

10

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.

15

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

1шт.

16

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

1шт.

18

90-7098T3

TUBE,0.25" OD x 57.32" L

ASSEMBLY - brake line Replaces 90-7098T2)

1шт.

Replaced to eliminate interference with the frame cross member on the new style frames using the new dual stage master cylinder.

1шт.

19

90-6886T1

LARGE PLATE

STRAP - mounting, clamp

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

21

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

1шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

23

31-1862

CLAMP

- tube

2шт.

24

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

25

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

1шт.

26

425-106

NUT,3/8"-16, Cl 5

2шт.

29

90-1367T2

BRAKE DISC

DISC - brake

1шт.

30

25334R1

BOLT,Hex, 5/8" - 18 x 1 3/4", Gr 8

- hex, 5/8 NF x 1-3/4 inch, Grade 8

12шт.

31

REF

INSTRUCTION

SPRING - retractor, park brake, See Figure 7-08

2шт.

32

REF

INSTRUCTION

CABLE - park brake, See Figure 7-04

1шт.

33

REF

INSTRUCTION

CYLINDER ASSEMBLY - master, See Figure 7-10

1шт.
