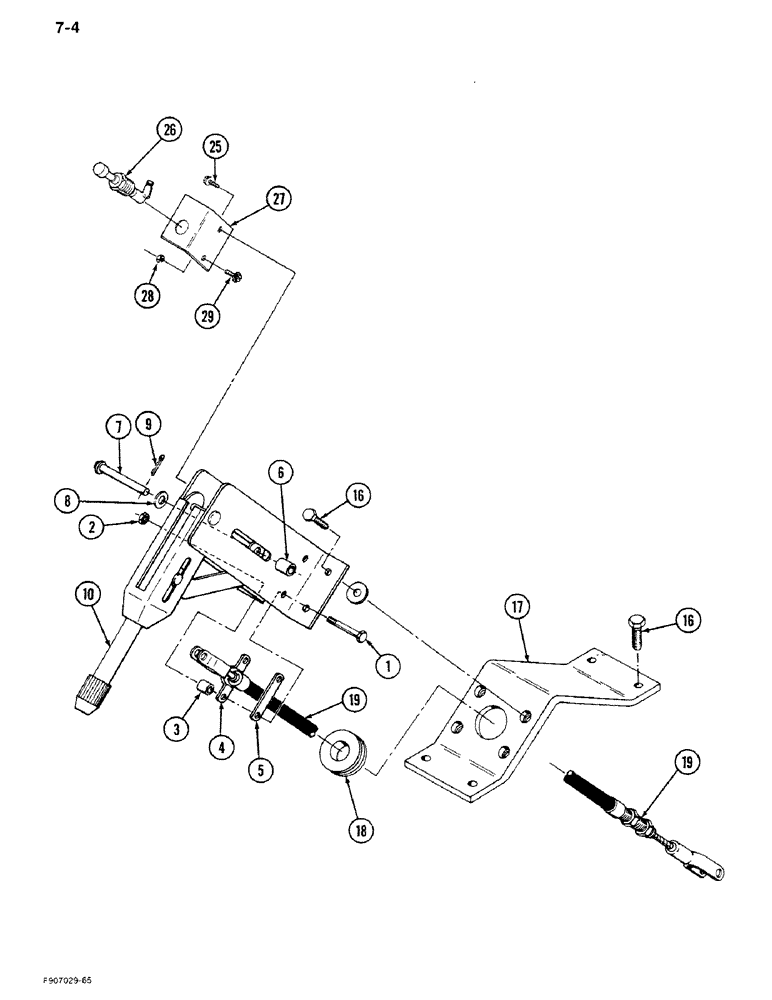

Запчасти Case IH 9270 (7-04) - PARK BRAKE CONTROLS (07) - BRAKES

60-5017T91

LEVER ASSY.

LEVER ASSEMBLY - park brake, Includes: Ref. 1 - 10

1шт.

1

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

2

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

3

19-6062

SPACER

- 5/16 x 1/2 x 9/16 inch

2шт.

4

1-8464

FIXING BRACKET

CLAMP - half

1шт.

5

1-8451

FIXING BRACKET

CLAMP - half, base

1шт.

6

19-6061

SPACER

- 5/16 x 1/2 x 23/32 inch

1шт.

7

19-5664

CLEVIS PIN,5/16" x 2"

PIN - clevis, 5/16 x 1-7/8 inch

1шт.

8

195-2026

WASHER,.328" x 5/8" x .065"

- flat, 21/64 x 5/8 x 1/16 inch

1шт.

9

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

10

NSS

NOT SOLD SEPARAT

LEVER ASSEMBLY - park brake

1шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

8шт.

17

60-6489T1

LARGE PLATE

MOUNT - park brake

1шт.

18

31-2603

GROMMET

- hole, brake cable

1шт.

19

60-5616T2

CABLE

- actuating, park brake

1шт.

25

281-1046

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/8"

SCREW - tapping, hex, No. 8 x 3/8 inch

1шт.

26

245175C1

SWITCH

- park brake

1шт.

27

60-6441T1

SUPPORT

BRACKET - mounting, switch

1шт.

28

225-14108

NUT,#8-32

- hex, No. 8 NC

1шт.

29

463-1086

SCREW,Hex Hd, #8-32 x 3/8"

- machine, hex, No. 8 NC x 3/8 inch

1шт.
